IR-198 / IR-199: Fixed thermal imaging camera for HBT

IR-198 / IR-199: Fixed thermal imaging camera for HBT

Automatic fixed systems for human body temperature access control to facilities; includes multiple subject tracking, image recording and configurable alarms.

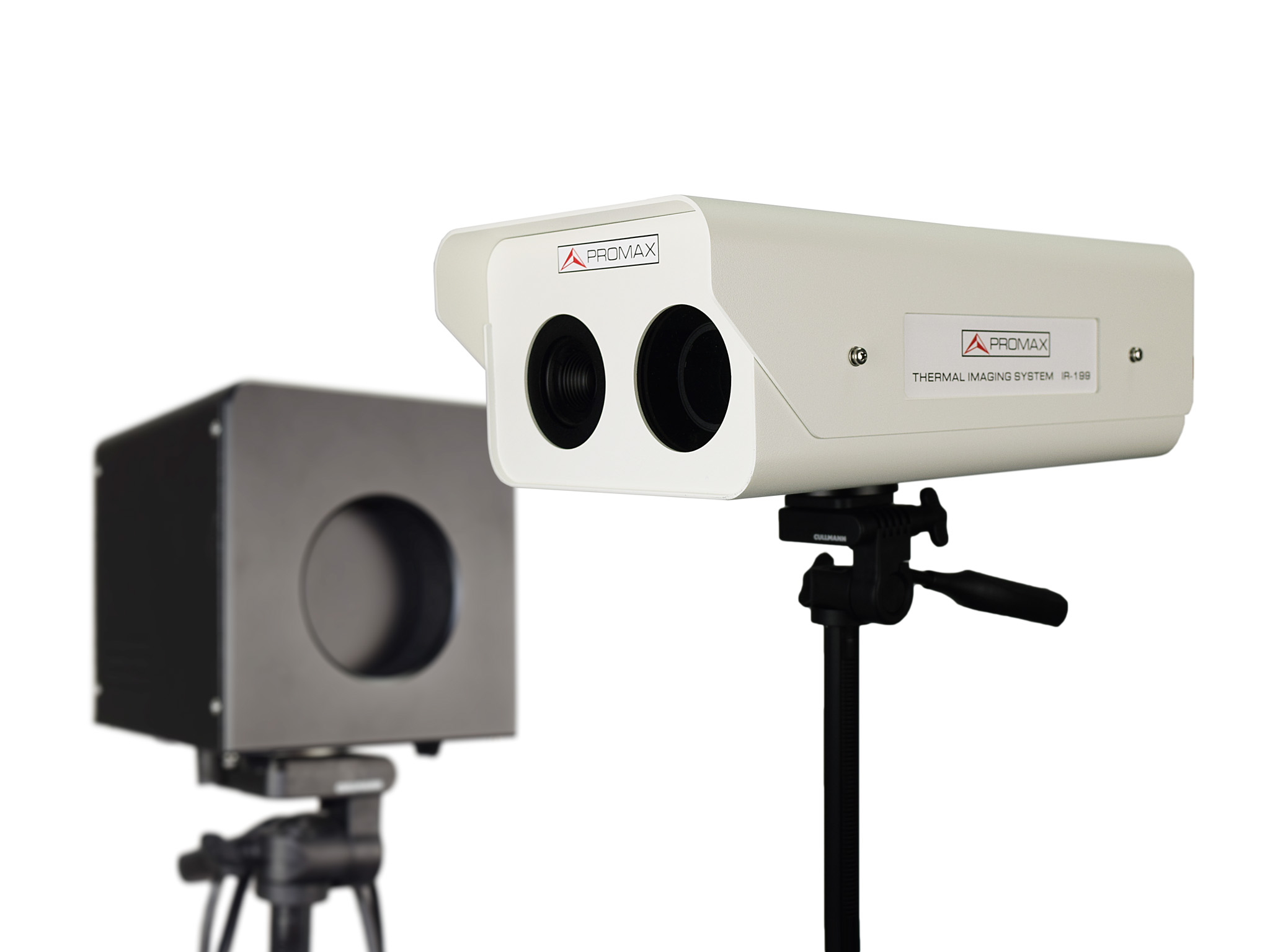

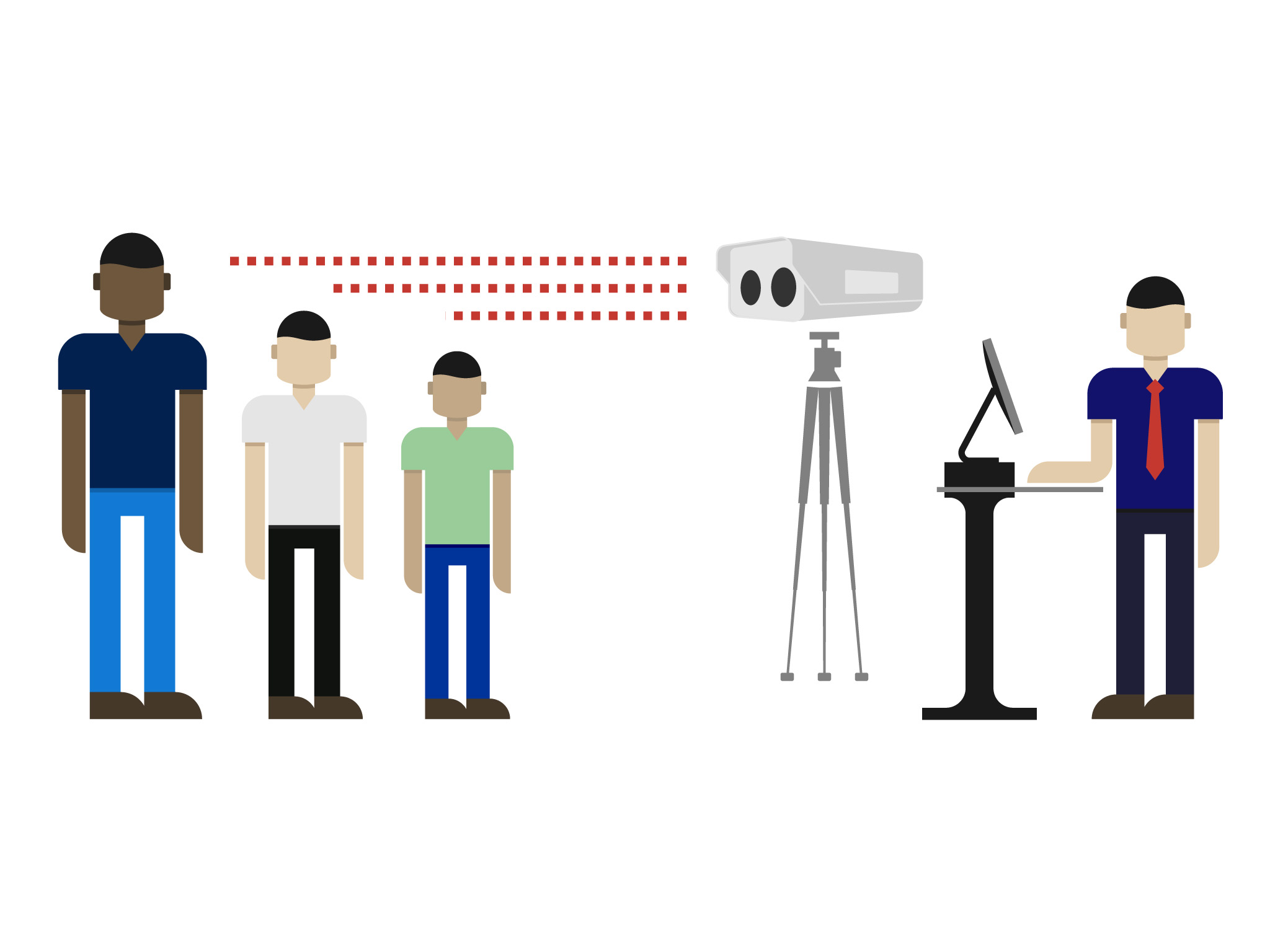

PROMAX thermal imaging cameras IR-198 and IR-199 models are HBT (high body temperature) fixed measurement systems and they are designed for public or private facilities access control. The system detects faces, takes the temperature and activates an alarm when it is above the established limits.

It is a complete, ideal solution for a continuous tracking of epidemics such as the COVID-19.

A blackbody (thermal calibrator) is included to keep the system continuously calibrated to a constant reference temperature preset.

THERMAL SENSOR
IR-198 384x288 pixels
IR-199 640x480 pixels
FOV (FIELD OF VIEW)
IR-198 25° x 19°
IR-199 34° x 26°
MEASURING DISTANCE From 3 to 10 meters
INTEGRATED CCD CAMERA 1920 x 1080 píxeles
IMAGE MANAGING
Simultaneous, multiple person tracking? Yes
Automatic blackbody calibration Yes
Contiuous video recording Yes
Focal distance 18 mm
Thermal sensitivity ≤ 0,06 ºC
Accuracy ≤ ±0,3 ºC
Temperature margin From 20 to 50 ºC
OPERATING TEMPERATURE From 0 to 40 ºC
INCLUDED ACCESSORIES Thermal imaging camera, Blackbody, Ethernet connection cable, Power supply
