HD RANGER Eco: HD TV analyzer for professional installers

HD RANGER Eco: HD TV analyzer for professional installers

Entry-level TV signal analyzers including all the high definition standards (DVB-T2, DVB-C2, DVB-S2).


The HD RANGER Eco is the most affordable of our entry-level Field Strength Meters and Spectrum Analyzers. It is ideal for those installers who mostly do classic installation work involving DVB-T2/C2/S2, DVB-T/C/S with MPEG-2 as well as MPEG-4 video. Powerful and fast spectrum analyzer well beyond that of other analyzers in its class.

DIGITAL STANDARDS
  • DVB-T, DVB-T2
  • DVB-C, DVB-C2
  • DVB-S, DVB-S2, DVB-S2 multistream
  • DSS
VIDEO CODECS MPEG-2, MPEG-4 H.264
AUDIO CODECS MPEG-1, MPEG-2, HE-AAC

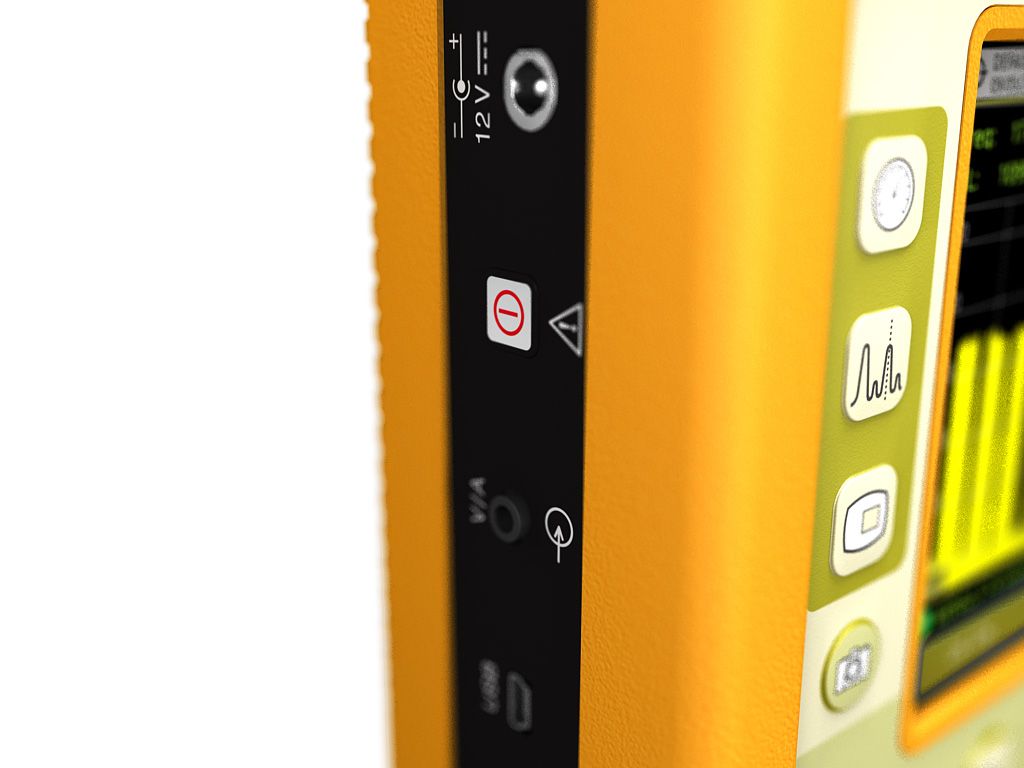

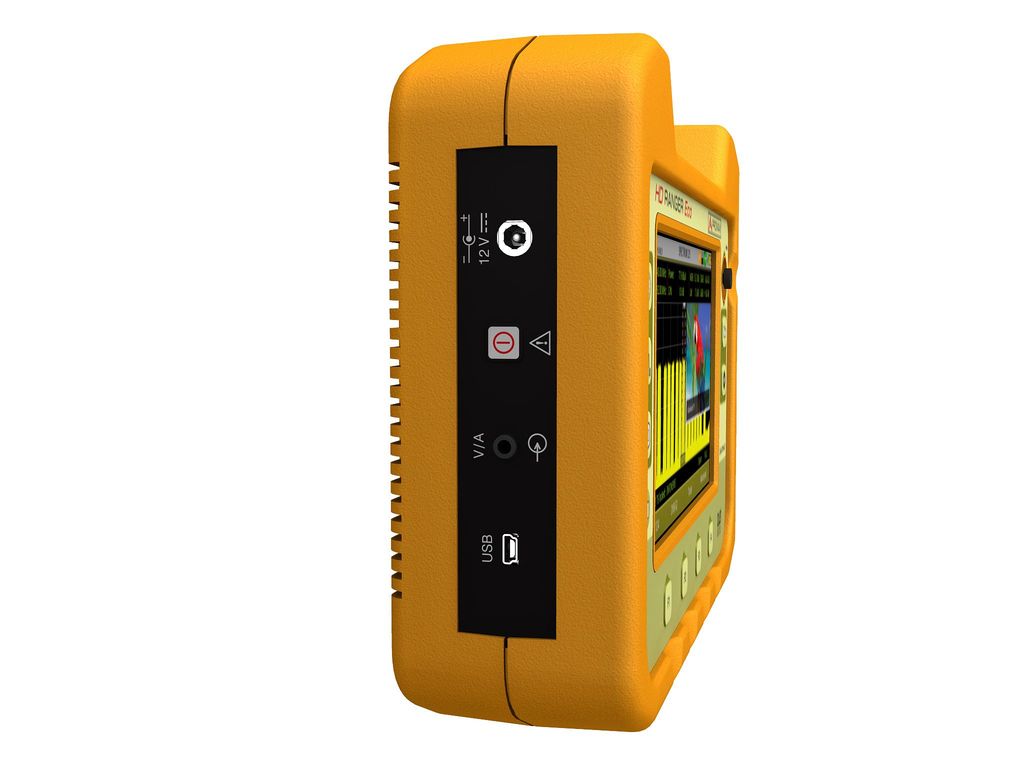

INPUTS AND OUTPUTS
  • Universal RF connector 75 Ω
  • Analogue Video/Audio input
  • USB for data tranferring
FUNCTIONS
  • Constellation diagram
  • LTE
  • Dynamic echoes analysis
  • StealthID (instant identification of tuning parameters)
  • PLS (Physical Layer Scrambling)
  • Ultra fast spectrum analyser (70 ms sweeping time) with MAX/MIN hold
  • FM radio measurements and decoding
  • Screenshots and Datalogger for measurement reports
  • DVB-S2 multistream
  • Field strength
  • Task planner
PC CONNECTION
  • NetUpdate 4 (free software)
  • Free and automatic firmware updates
  • User customised channel plans
  • Measurement reports and screenshots
