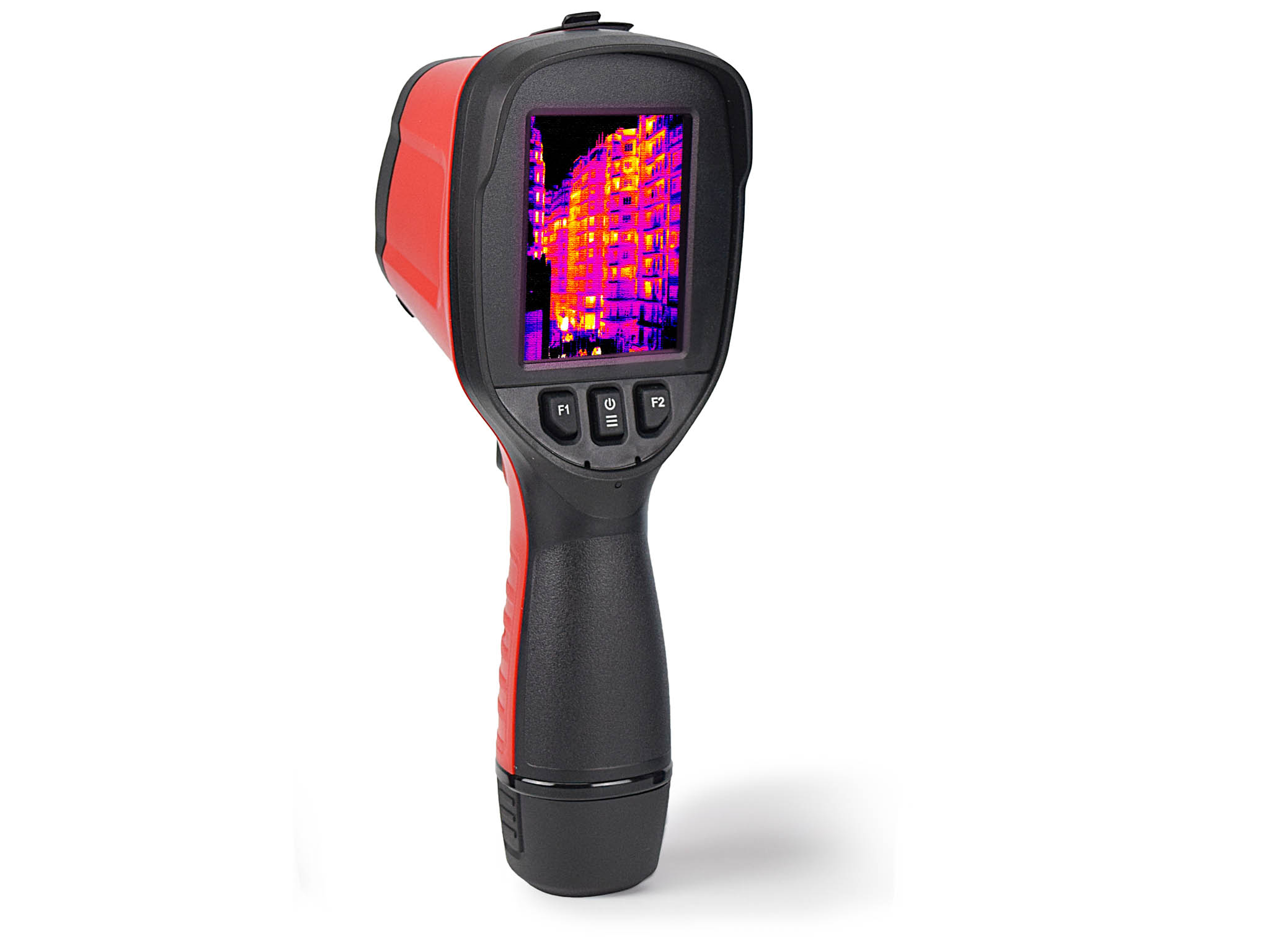

IR-282: Thermal imaging camera with visual camera

IR-282: Thermal imaging camera with visual camera

Thermal imaging camera (up to 250 ºC) with picture and sound recording. It includes analysis software for PC.

The IR-282 is a Thermal Imaging Camera very versatile that can be used in countless applications such as industrial maintenance, energy efficiency, non-destructive controls, medicine and veterinary, security and fire fighting, petrochemical, research, etc.

It has a built-in LCD screen which displays the captured images in real time. It allows capturing images of the infrared spectrum based on 4 color palettes and of the visible spectrum. The improved picture mode that joins both display modes (infrared + visible) helps to easily find items whose thermal emissivity is similar to the environment temperature.

It includes software to display and analyze the thermal images, as well as to generate and print reports.

INFRARED CAMERA 120x120
VISIBLE SPECTRUM CAMERA 57600 pixels
TEMPERATURE MARGINS From -20 to 250ºC approx.
SPATIAL RESOLUTION 5 mrad
RESOLUTION (NETD) 0.06 ºC @ 30 ºC
COLOR PALETTES 4, user-selectable
IMAGE REFRESH RATE 50 Hz
CURSORS
  • Fixed center
  • Maximum
  • Minimum
APPLICATIONS
  • Industrial servicing
  • Electronic circuits
  • Medicine and Veterinary
  • Locating living beings
  • Construction and maintenance
  • Chemistry and derivatives
  • Air-conditioning and heating systems
  • Fire prevention on the electricity network
  • Plumbing: Locating leaks in water systems
PC SOFTWARE Included
