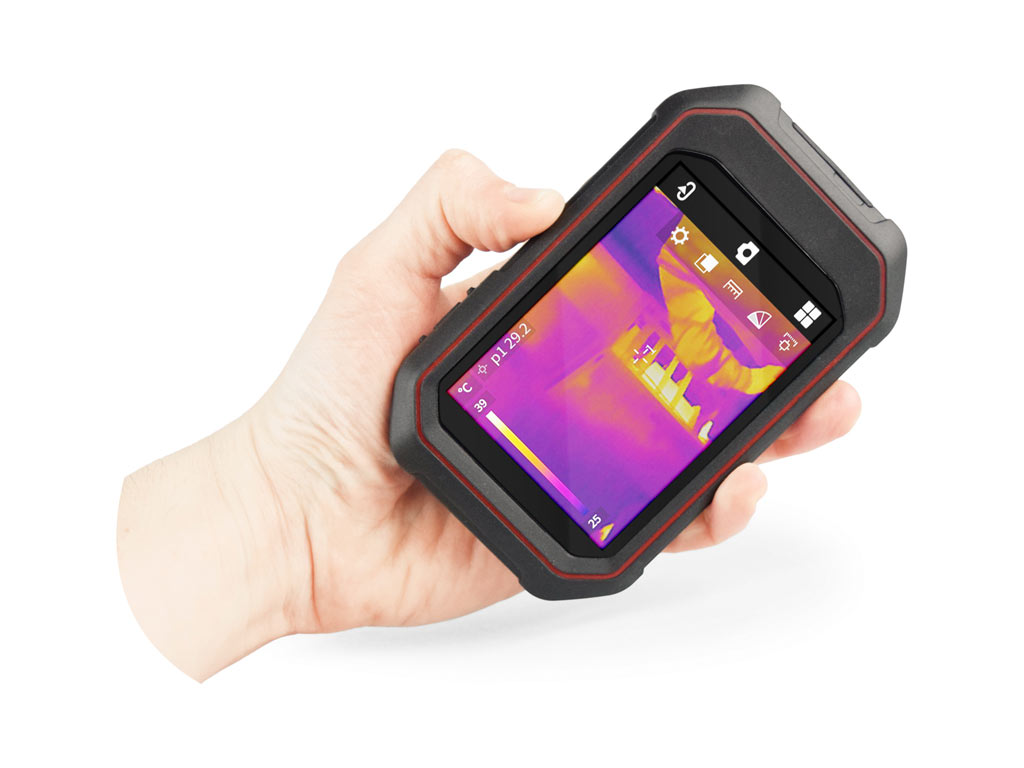

IR-281B: Touch screen pocket-size thermal imaging camera

IR-281B: Touch screen pocket-size thermal imaging camera

A professional thermal imaging camera for -20 to 650 ºC ranges, featuring IPX6 protection, 6 image modes, built-in flashlight and WiFi connectivity to Android app.


Experience professional-grade thermal imaging with the IR-281B tablet camera. Its wide temperature range of -20 to 650 ºC is packed into a budget-friendly design.

Measuring only 135 x 90 mm, its ultra-compact design makes it easy to carry and store with your other essentials.

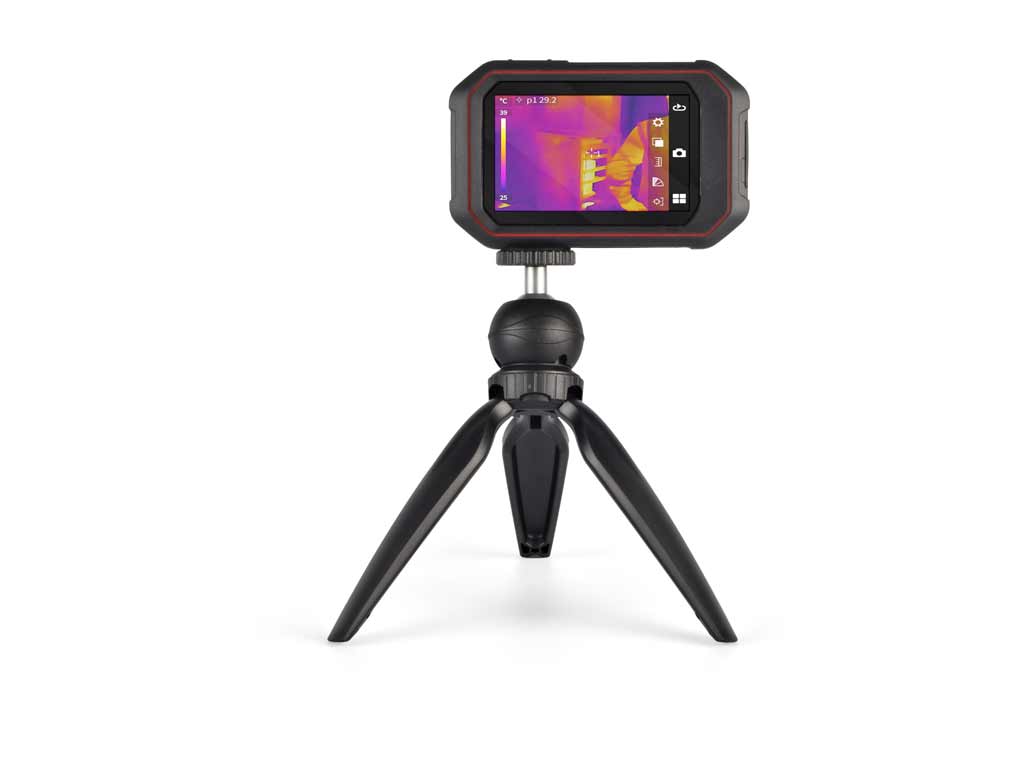

It can be used in either portrait or landscape, or mounted on a tripod (not included)

Detect hard-to-find faults instantly with thermal imaging: Faulty electrical and electronic components, leaks in air conditioning systems, insulation defects, and any situation where a temperature change reveals a breakdown or malfunction.

  • Temperature margin: From -20 to +650 ºC
  • Water resistant
  • Impact protection: Drops up to 2m
  • USB Charging: Four hours of battery Life
  • Six thermal imaging modes
  • Customizable Interface: Thermal, Real, or both (PiP)
  • Can be used in both landscape and portrait
  • Fully Touch-Enabled Interface

INFRARED CAMERA 256x192
TEMPERATURE MARGIN From -20 to 650ºC
SPATIAL RESOLUTION 2 mrad
RESOLUTION (NETD) 0.05 ºC @ 30 ºC
COLOR PALETTES 6, selectable
IMAGE REFRESH RATE 50 Hz
CURSORS
  • Real time movable spot
  • Movable area (max, min and average temperatures)
  • Line temperature measurement
  • Thermal alarm (audible and color)
APPLICATIONS
  • Industrial maintenance: Electrical Panels, machinery
  • Electronic circuitry: Maintenance and technical service
  • Rescue and safety: Locating living beings in the dark
  • Construction: Insulation and Energy Savings
  • Plumbing: Leak detection and cold spots in radiators
  • Chemistry & derivatives: Compressed gases in cylinders
  • Refrigeration: Performance and leaks in installations
  • Renewables: Temperature ranges in solar panels
