PE-005: Audio impedance tester

PE-005: Audio impedance tester
PE-005: Audio impedance tester
PE-005: Audio impedance tester
PE-005: Audio impedance tester

PE-005: Audio impedance tester

Allows testing of home theater and speaker system for estimate the necessary power in an installation for the suitable election of the amplifier.


Datasheet

Manual

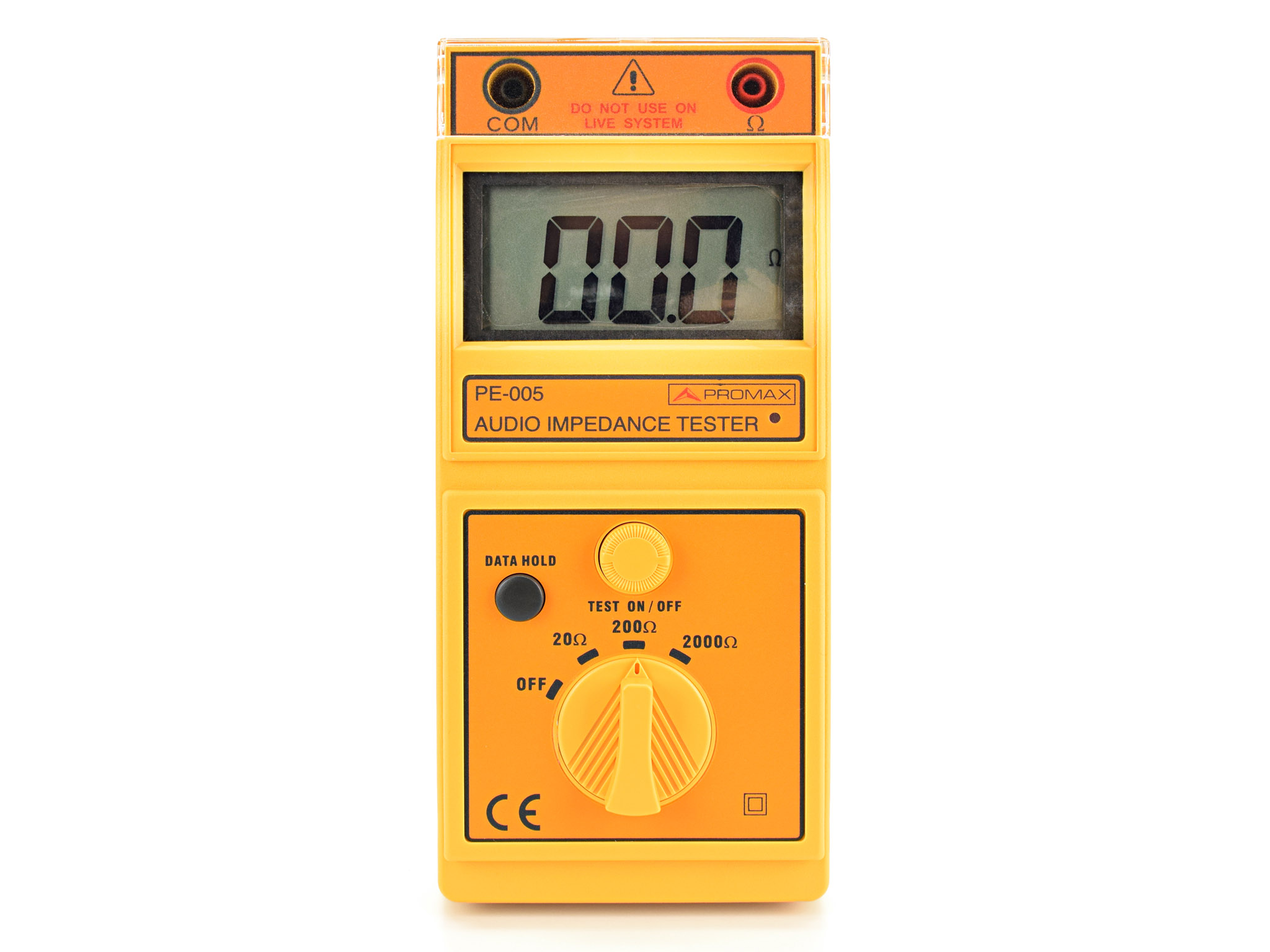

The Audio impedance tester PE-005 allows testing of home theater and speaker system for estimate the necessary power in an installation for the suitable election of the amplifier. There are three user-selectable measurement ranges (20, 200 and 2000 O) and a 1 kHz test frequency.

MEASUREMENT RANGE 20 Ω / 200 Ω / 2000 Ω
TEST FREQUENCY 1 kHz
ACCURACY
RANGE 20 Ω ±2% reading ± 2 dig. or ± 0.1 Ω, which is greater
RANGES 200 Ω / 2000 Ω ±2% reading ± 2 dig.

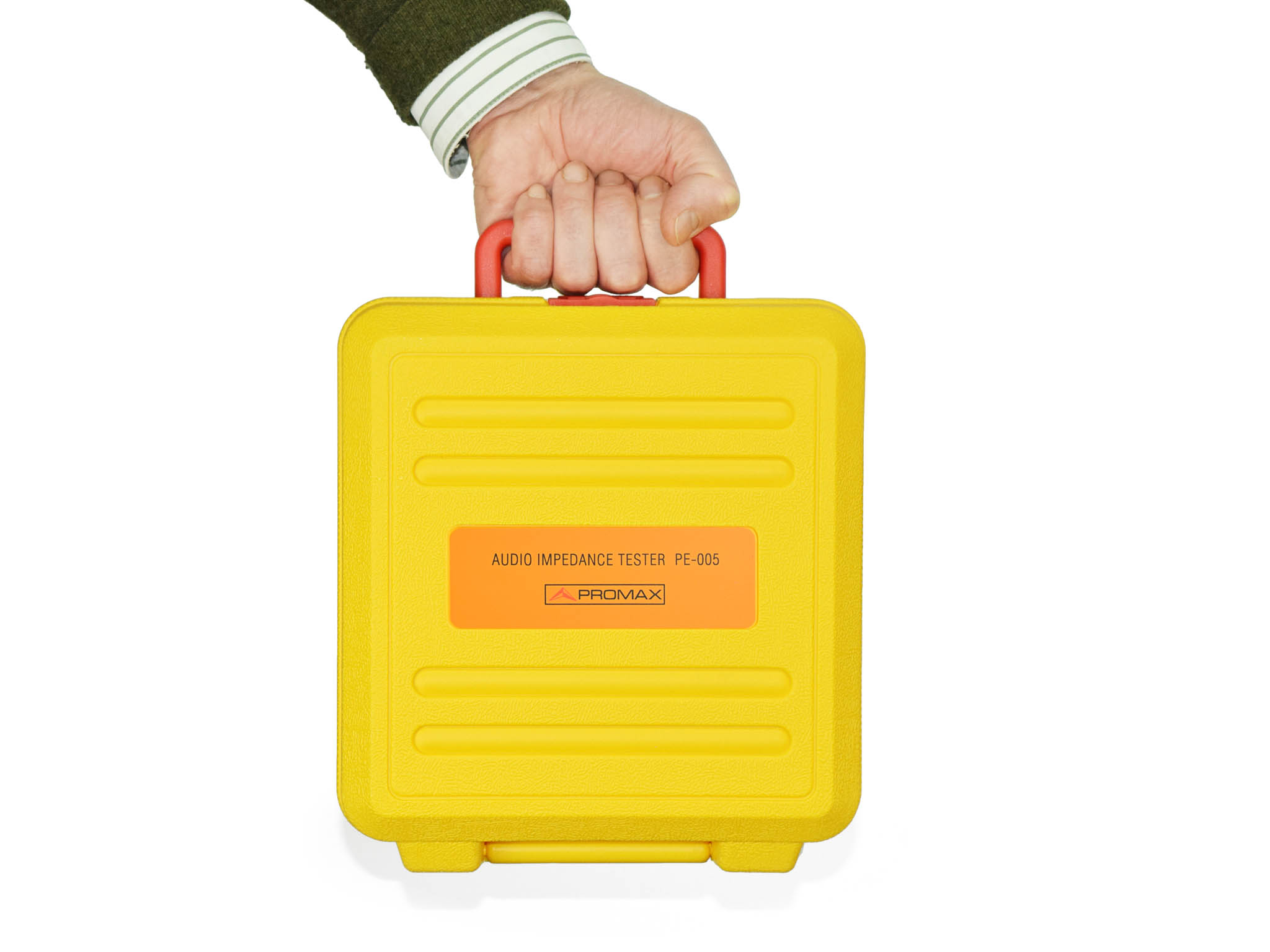

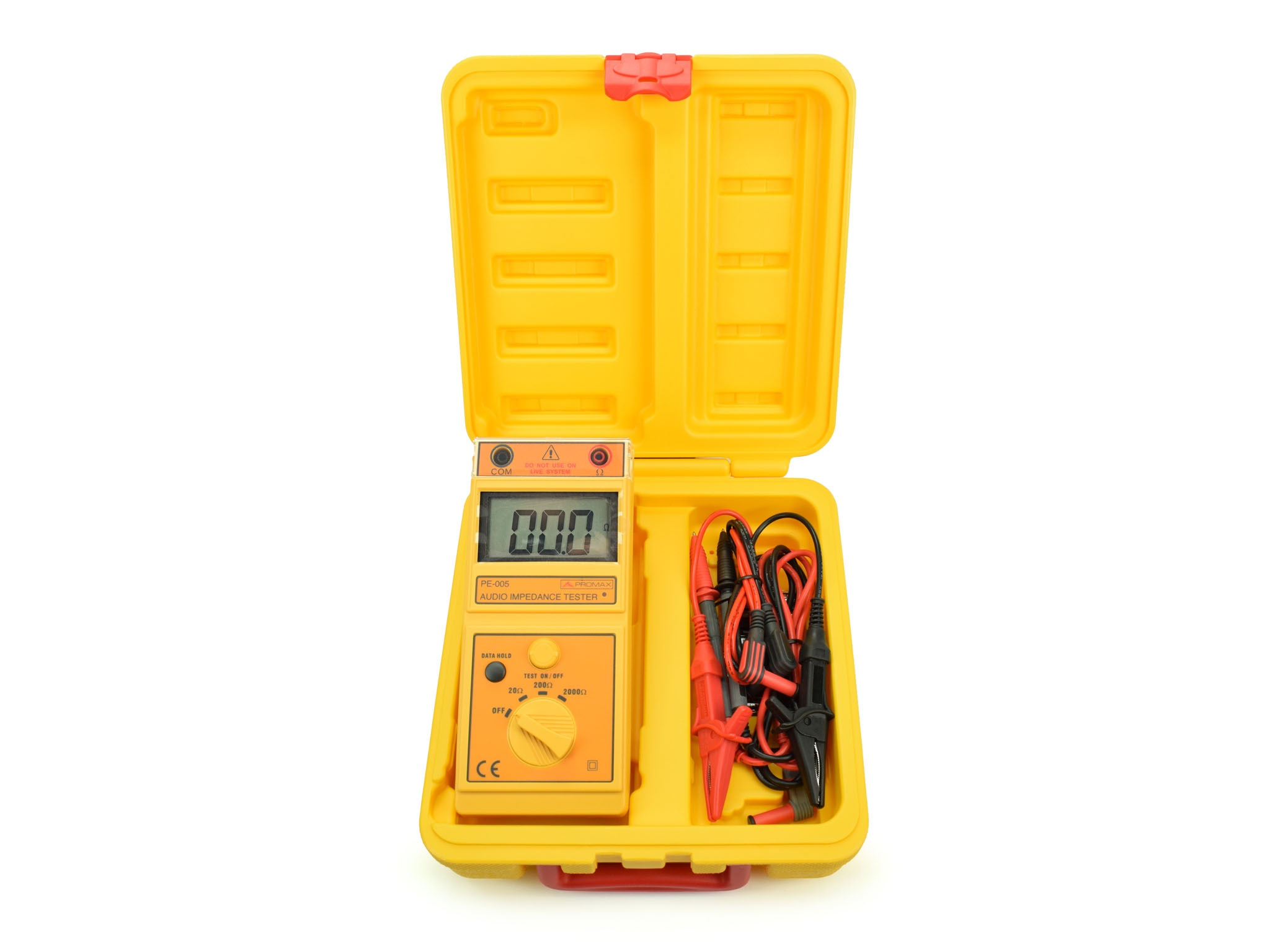

ACCESORIES Test leads set with safety clamps, user's manual, transport suitcase
