MO-480, MO-481: Broadcast grade DVB-T2 modulator

MO-480, MO-481: Broadcast grade DVB-T2 modulator

Broadcast grade modulators available in a standard 1U high 19” rack case and also in an open frame chassis that can be used for MFN as well as SFN applications.


The MO-480 and MO-481 are broadcast grade DVB-T2 modulators available in a 1 unit 19” rack case (MO-480) and also in an open frame chassis (MO-481). They are designed for both MFN as well as SFN applications.

The modulators have several Transport Stream and T2-MI inputs in ASI and IP formats so that they can be easily interfaced with other existing transmission equipments such as gateways. They can be configured to generate any of the transmission modes listed in the corresponding DVB-T2 standard including single and multiple PLP, MISO or SISO. It can also be used for DVB-T applications.

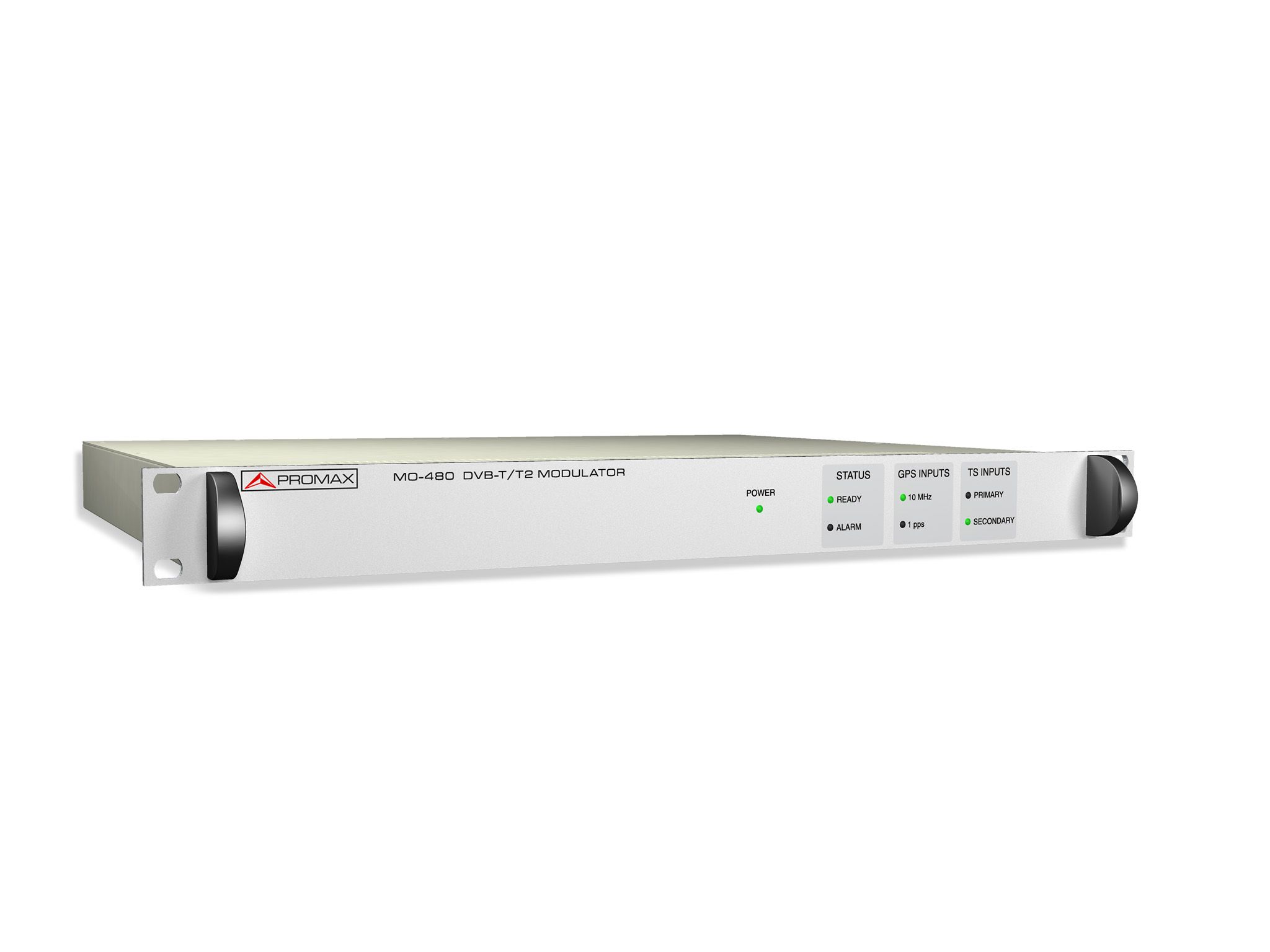

MO-480 19” rack version
MO-481 OEM version
MODULATIONS DVB-T2 and DVB-T
INPUT STREAMS
  • 2 x ASI (EN 102 773)
  • 1 x IP (SMPTE-2022 – UDP, RTP and FEC)
REFERENCE INPUTS
  • 1pps Reference Input
  • 10 MHz Reference Input
SINGLE OUTPUT 30 to 900 MHz
TEST MODES
  • PRBS
  • Blank Carrier
  • Null P1 preamble
  • Single RMS tone
  • MFN AND SFN MODES
