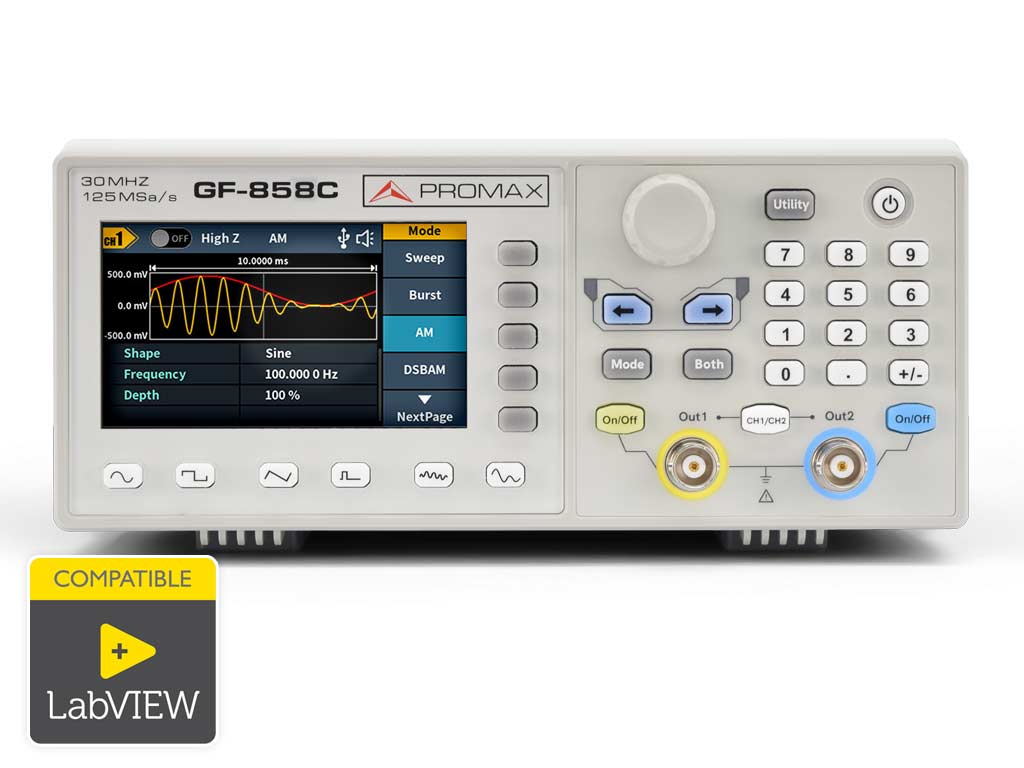

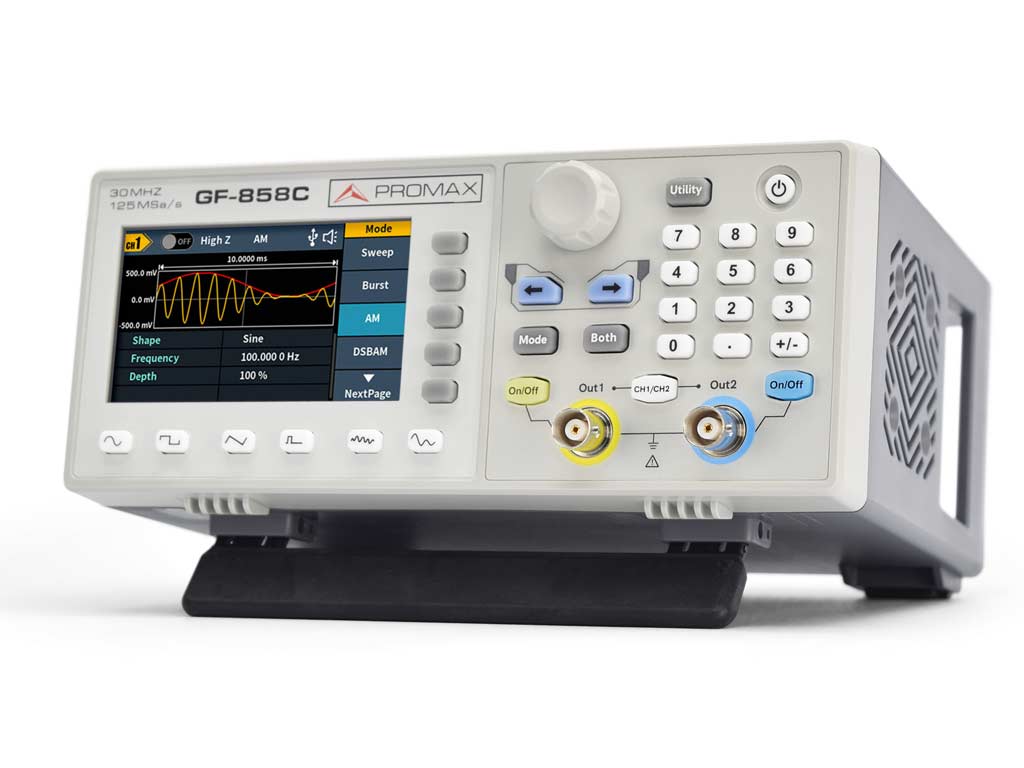

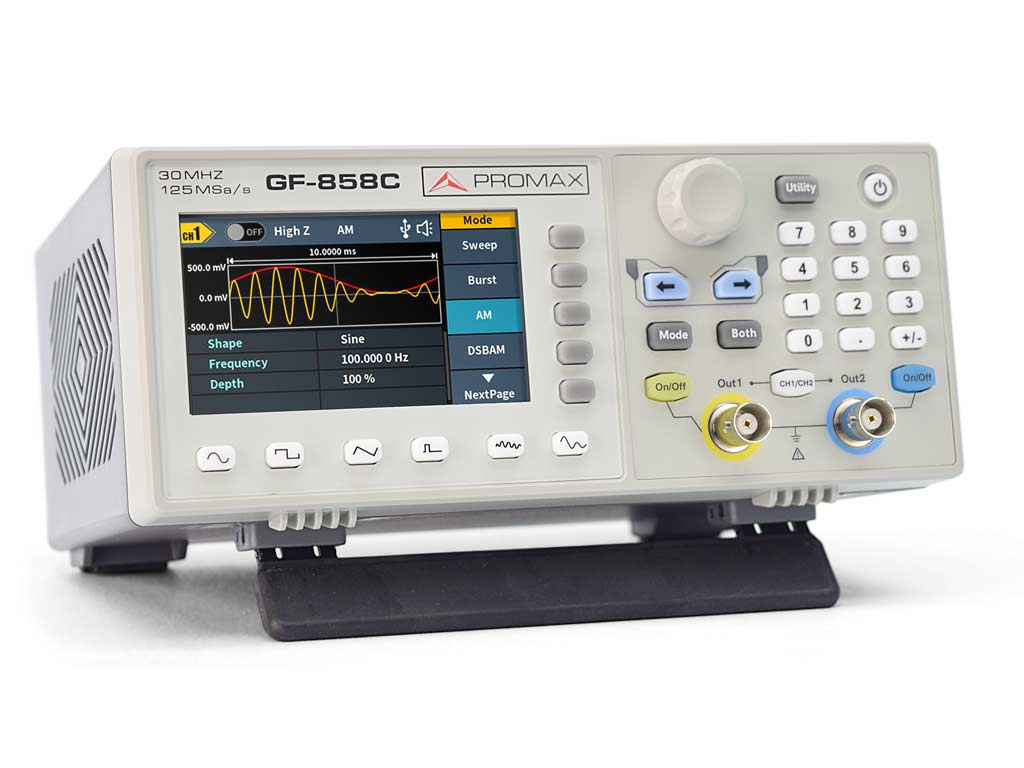

The GF-858C are double-channel advanced waveform generators, respectively, using DDS technology, with a 30 MHz output frequency and a 125 MSa/s sample rate with 14-bit resolution. These excellent features are complemented by a 1μHz base resolution.
Capable of generating signals in 16 modulation schemes (including FM, AM, PM, FSK, ASK, PWM), they also feature a 100 mHz to 100 MHz digital graphical frequency counter with a 6-digit resolution.
Beyond standard waveforms (sine, square, pulse, sawtooth, noise), these instruments allow users to create custom waveforms and access a library of 160 waveforms preloaded in the instrument's memory.
The GF-858C generators feature external modulation inputs, a sync output, and an external trigger input.
- Two channels
- 3,6” TFT LCD screen
- Advanced DDS technology
- Sample rate 125 MS/s
- Frequency resolution 1 μHz
- Vertical resolution 14 bits
- Arbitrary waveform record length up to 100 K
- More than 160 arbitrary preloaded waveforms
- Standard USB port interface
- PC software included
