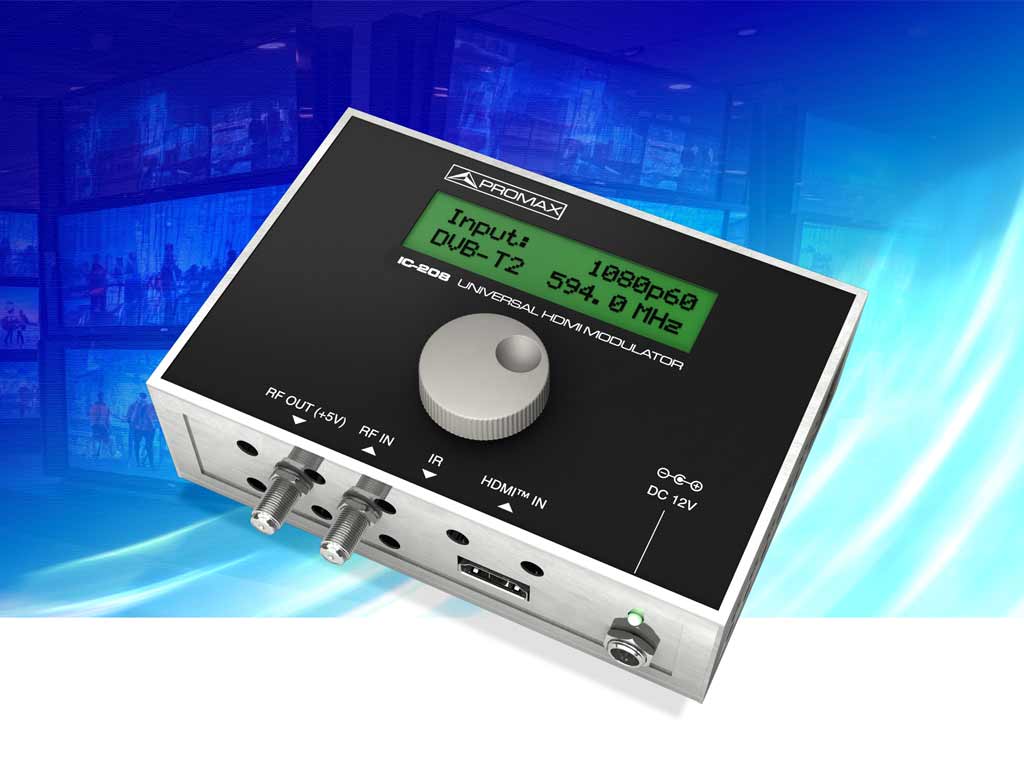

IC-208: Universal HDMI™ modulator 1080p@60 Hz

IC-208: Universal HDMI™ modulator 1080p@60 Hz

Converts HDMI™ signal to a digital terrestrial television channel in DVB-T, DVB-T2, DVB-C, ATSC-T, ATSC-C, DTMB or ISDB-T standards.


IC-208 digital modulators are a versatile solution for creating custom digital terrestrial TV channels. The channel's content can originate from any HDMI™ device, such as a set-top box, media player, or computer. Both High-Definition (HD) or standard definition.

The impressive multi-standard support (DVB-T2, DVB-T2, DVB-C, ATSC-T, ATSC-C, DTMB, and ISDB-T) make them suitable for use in most regions worldwide.

The high-quality output (38 dB MER) is equivalent to that of a premium headend, resulting in a very robust signal that can reach all television receivers in the installation with high quality with no need to install additional equipment such as amplifiers.

With the integrated RF combiner, the new channel can be added to the grid without disrupting existing ones, and multiple IC-208 modulators can also be daisy chained to expand the number of channels as needed.

VIDEO RESOLUTION From 480i up to 1080p
VIDEO CODECS H.264/AVC or MPEG-2
OUTPUT TYPE DVB-T, DVB-T2, DVB-C, ATSC-T, ATSC-C, DTMB, ISDB-T
CONNECTOR TYPE HDMI™ type A 1.3
BYPASS INPUT From 5 to 1218 MHz
MODULATED CHANNEL From 174 to 1000 MHz
OUTPUT LEVEL OFF or from 50 to 95 dBµV
MER 38 dB typ.
CONFIGURATION
BASIC Country, Ouput type, Output frequency, Output level, Channel name
ADVANCED RF, Video and audio, SID, PMT, VPID, APID, NIT, ONID, LCN, PDS, TS ID
