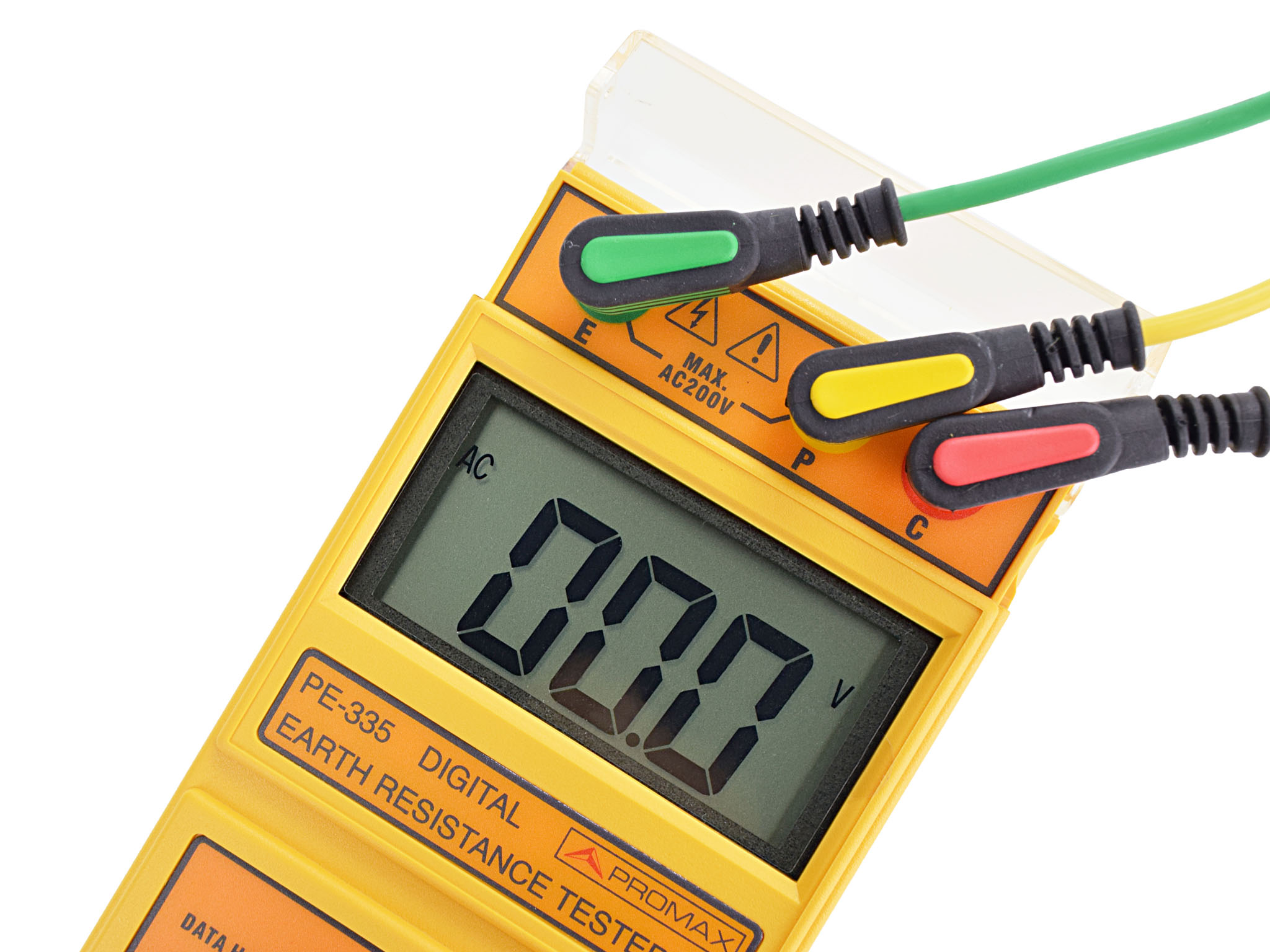

PE-335: Digital earth resistance meter

2 mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test.

Datasheet

Manual

REQUEST A QUOTE

Do you need more help?

PE-335 carries out the earth resistance measurements by using the three-electrodes method. 2 mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test. PE-335 Digital Earth Resistance Meter comes with functions as data-holding, timer for test function, etc.

MEASUREMENT SYSTEM	Current injection of 820 Hz, 2 mA

EARTH VOLTAGE	0 ~ 199.9 V AC, 50 / 60 Hz

MAXIMUM INPUT VOLTAGE	200 V RMS

RANGE AND RESOLUTION	0 ~ 19.99 Ω (0.01Ω) 0 ~ 199.9 Ω (0.1Ω) 0 ~ 1999 Ω (1Ω)

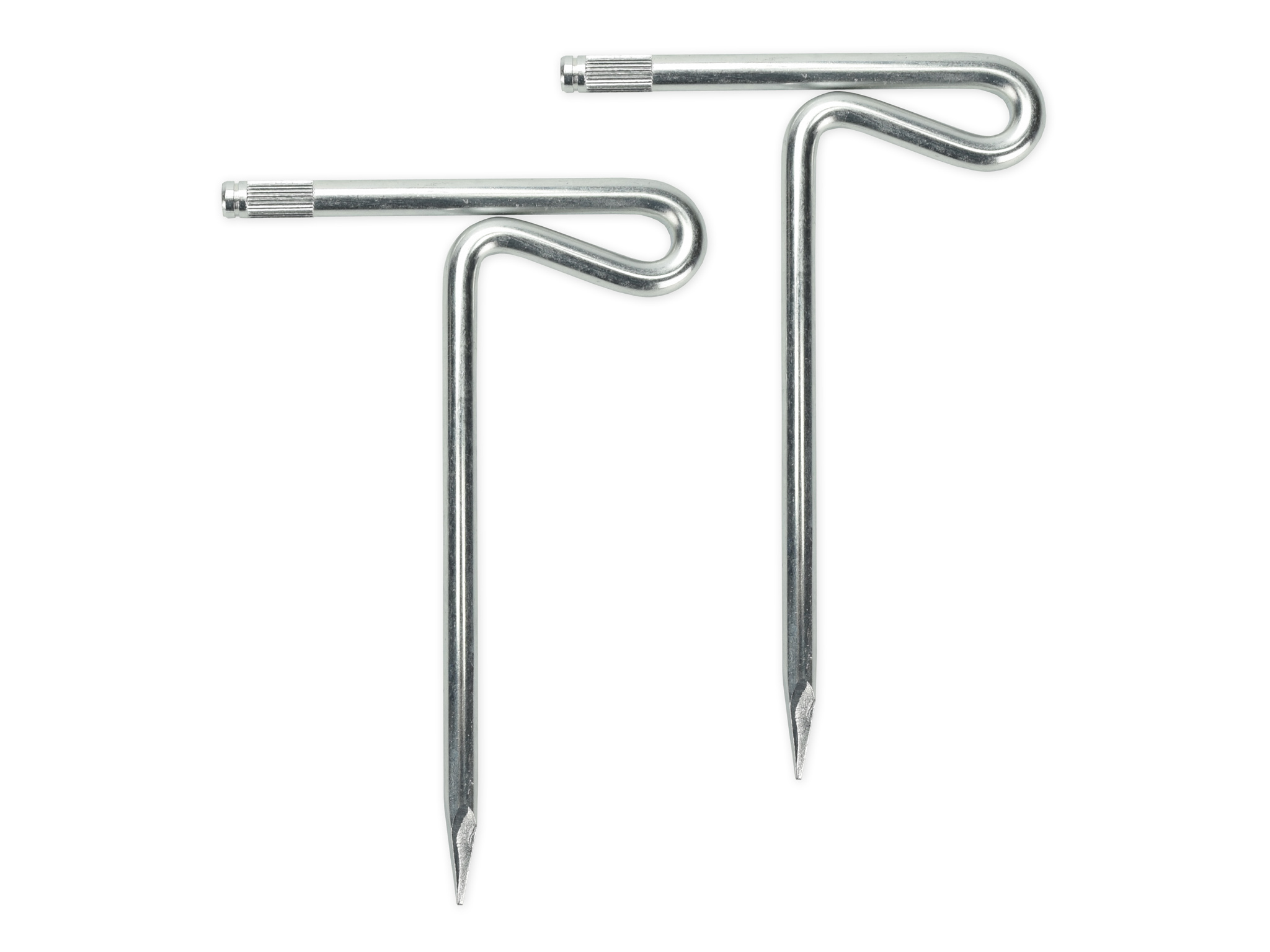

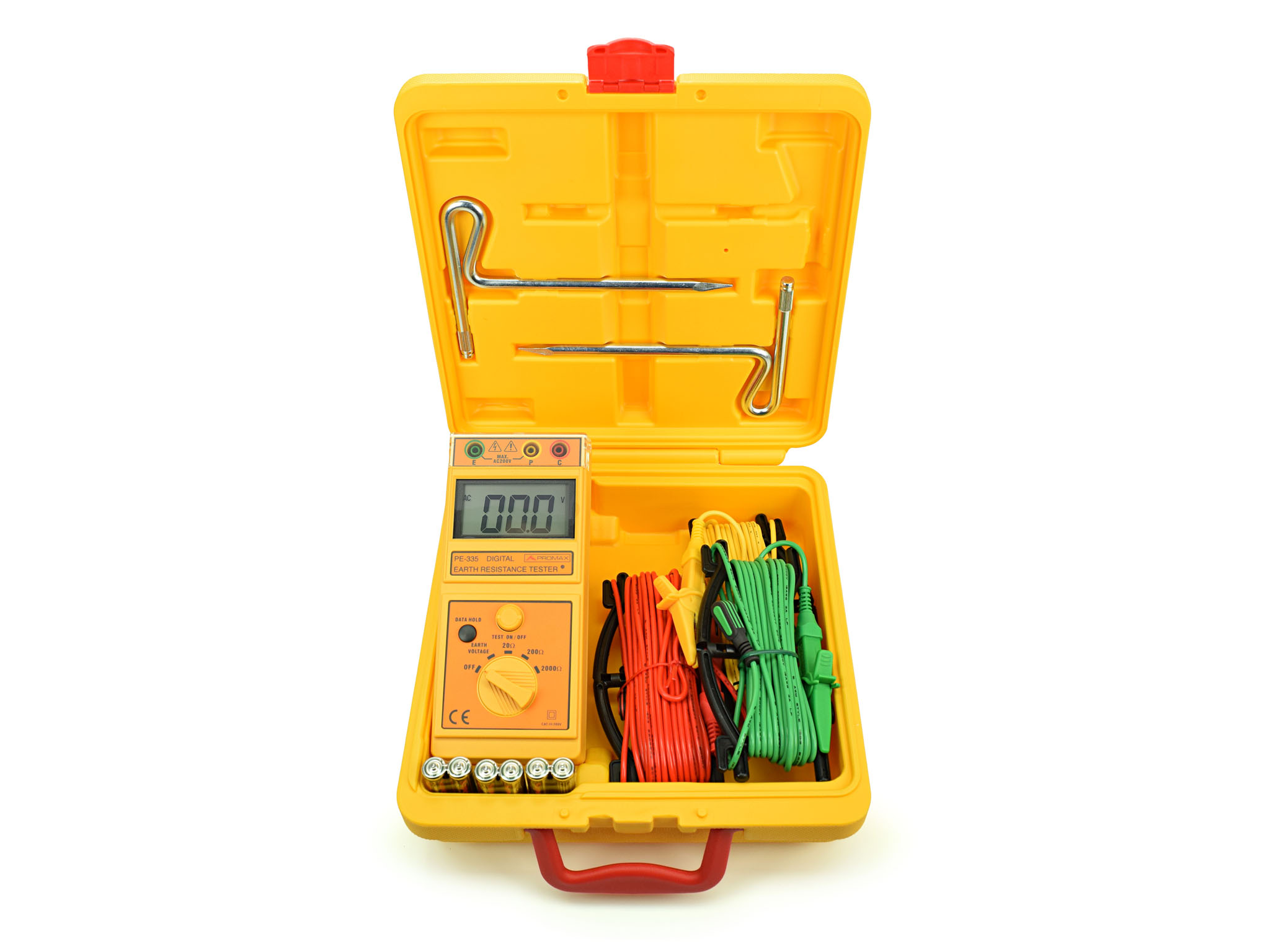

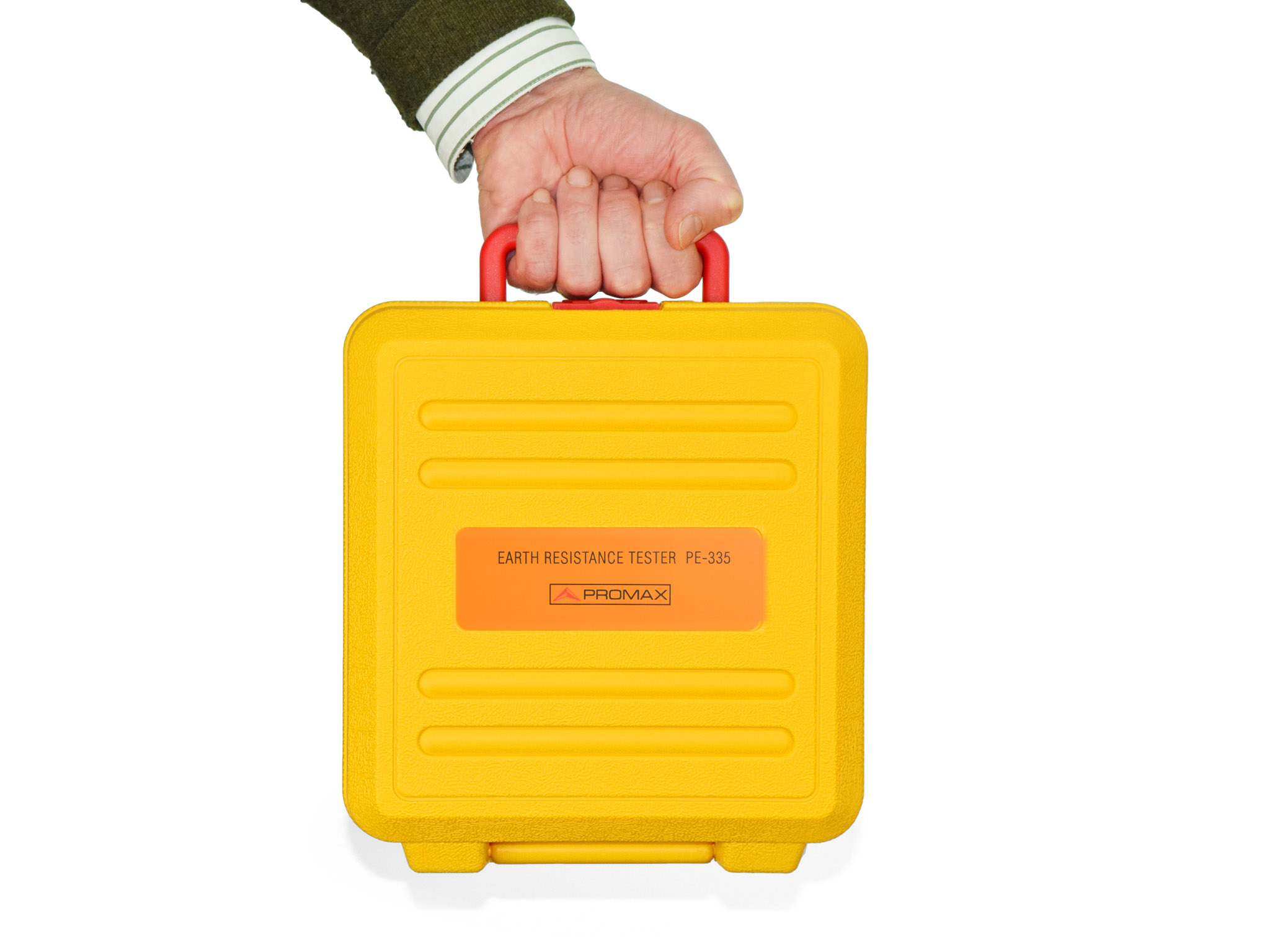

ACCESSORIES	Test cable set, 2 auxiliary earth spikes, user's manual, transport suitcase

2-Languages User manual (Spanish, English) (489 KB)
