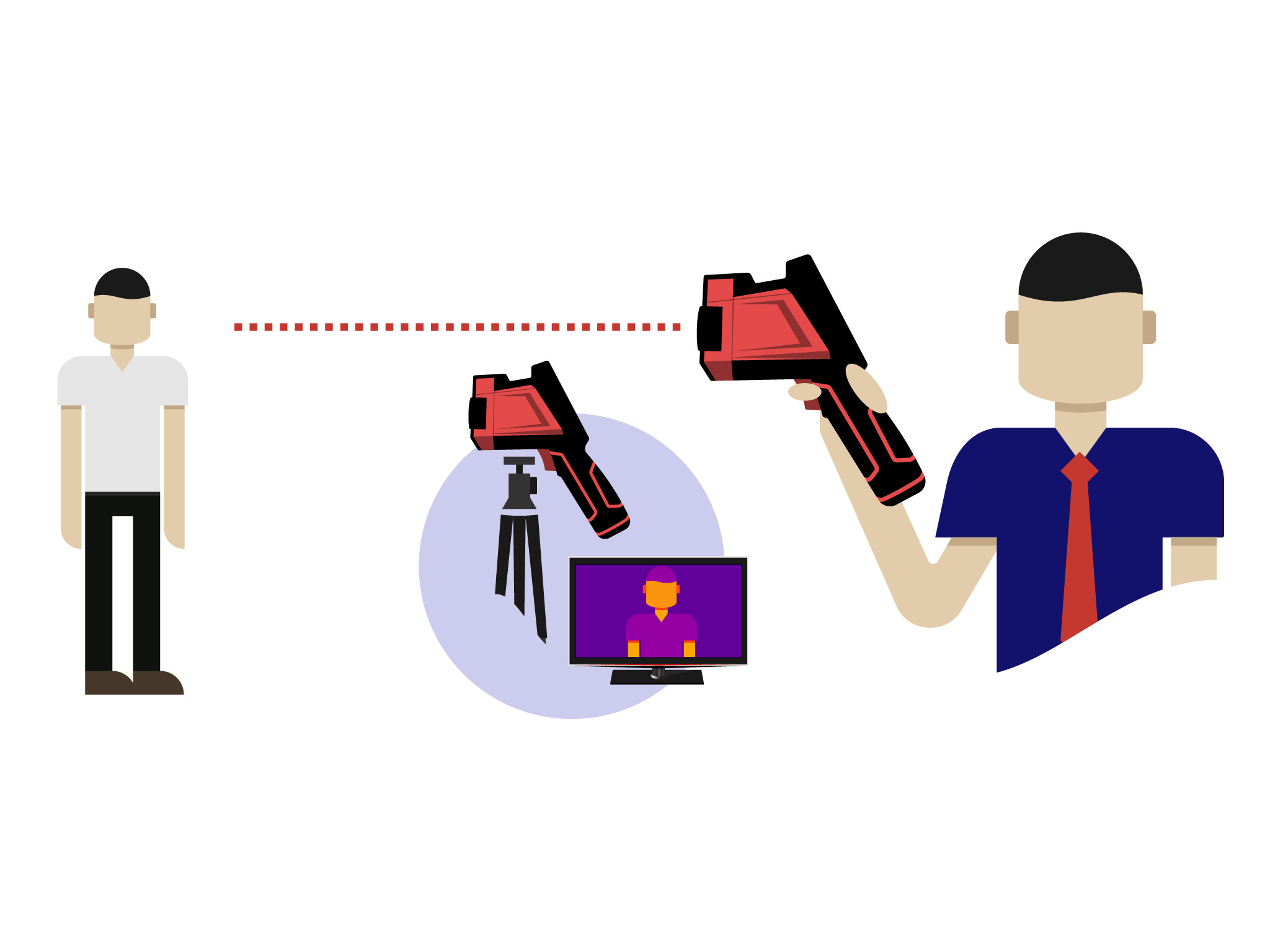

Camera for human temperature measurement that can be used both as hand-held device or as a tripod mounted device and be connected to a monitor in an access control.

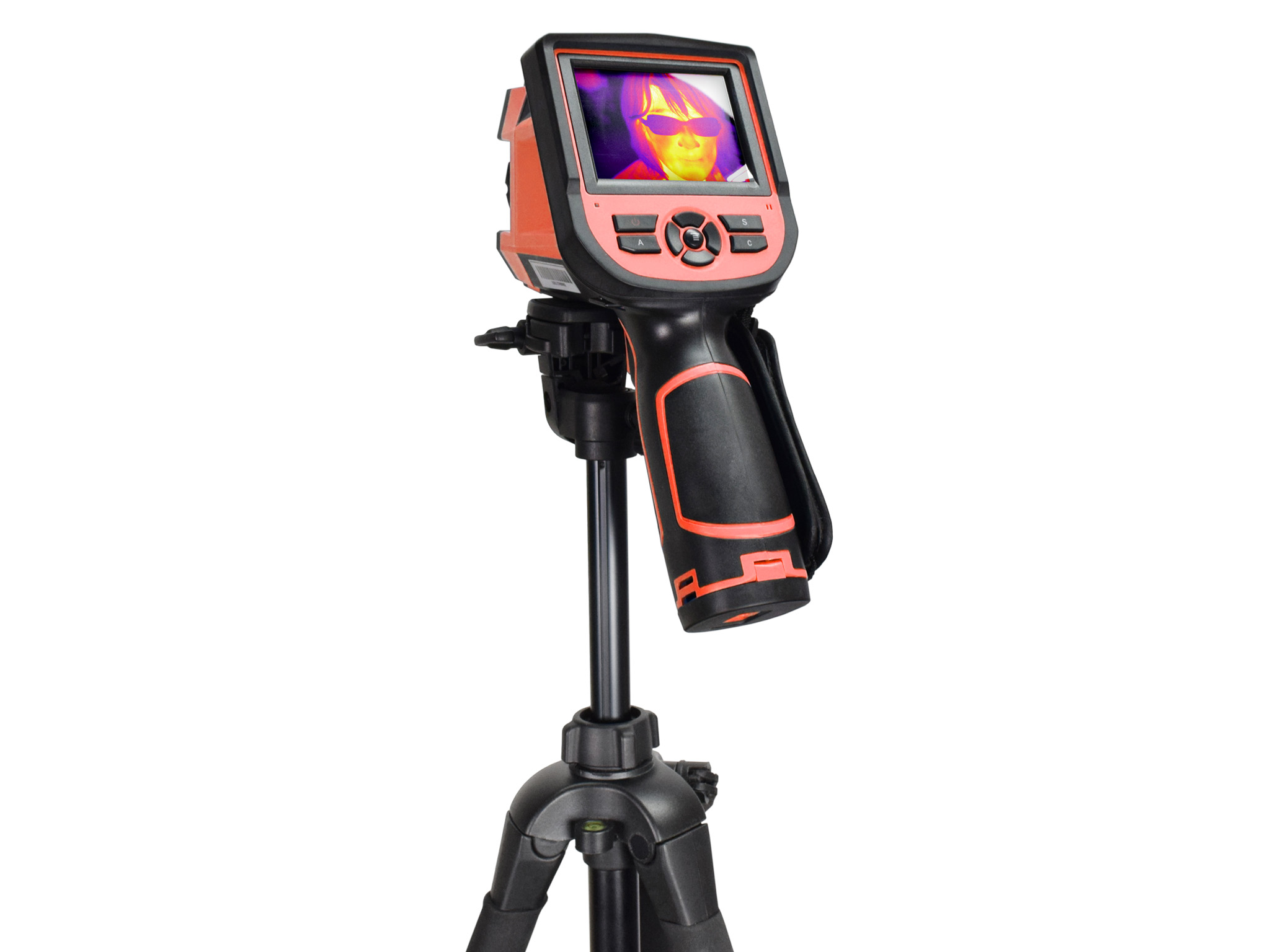

PROMAX thermal imaging cameras IR-191 and IR-192 are portable hand held high body temperature (TCE) measurement devices and are designed for public or private facilities access control.

The accuracy of the devices allows displaying with no error the persons whose temperature is out of the ranges considered as safe.

It is a complete, ideal solution for a continuous tracking of epidemics such as the COVID-19.

THERMAL SENSOR
IR-191 160x120 pixels
IR-192 384x288 pixels
MEASUREMENT DISTANCE
IR-191 From 2 to 5 meters
IR-192 From 2 to 8 meters
INTEGRATED CCD CAMERA
IR-191 1.3 Mpixel
IR-192 3.2 Mpixel
IMAGE MANAGING
Simultaneous, multiple person tracking? No
Automatic blackbody calibration Yes
Video output Yes
Accuracy ≤ ±0,3 ºC
Temperature margin From 20 to 50 ºC
OPERATING TEMPERATURE From 0 to 40 ºC
INCLUDED ACCESSORIES Thermal imaging camera, Blackbody, carrying case, battery, memory card, video cable, AC adaptor
