Aiming terrestrial antennas and satellite dishes, analyzing DOCSIS and installing optical fibre. The cost effective all-in-one compact analyzer for RF, CATV and optical fibre

The ultra compact analyzer RANGER mini is designed to install TV and Satellite antennas and distribution systems. It is compatible with the DVB-T/T2, ISDB-T and DVB-S/S2 standards. It can be used to diagnose CATV networks and it includes analog and FM radio measurements.

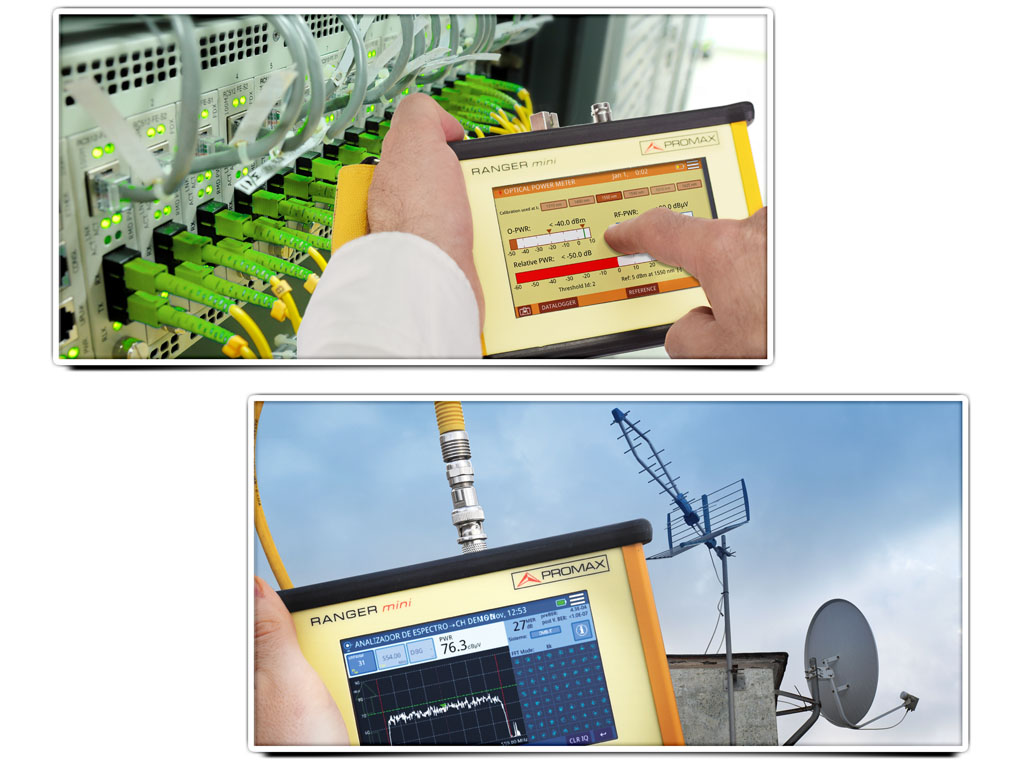

The RANGER mini also includes an optional optical fibre analyzer that includes an optical to RF converter which is perfect for HFC networks.

The ultra compact RANGER mini field strength meter and its spectrum analyzer allow tapping a TV channel in its touch screen to get access to its quality measurements. It’s that simple. The RANGER mini is a small, handy and extremely lightweight device. Its rugged design is impact-resistant and protects the device from adverse conditions during its use in the field.

  • Quality measurements: It includes power measurements, MER, preBER and postBER in a single screen side by side with the constellation diagram to evaluate the signal reception quality at a glance.
  • LNB suppy: The instrument can feed 13 V, 18 V and send the 22 kHz tone.
  • Multistandard: It can be used at almost any location in the world.
  • Includes a datalogger: Take automatic measurements to analyze the performance of extensive networks.

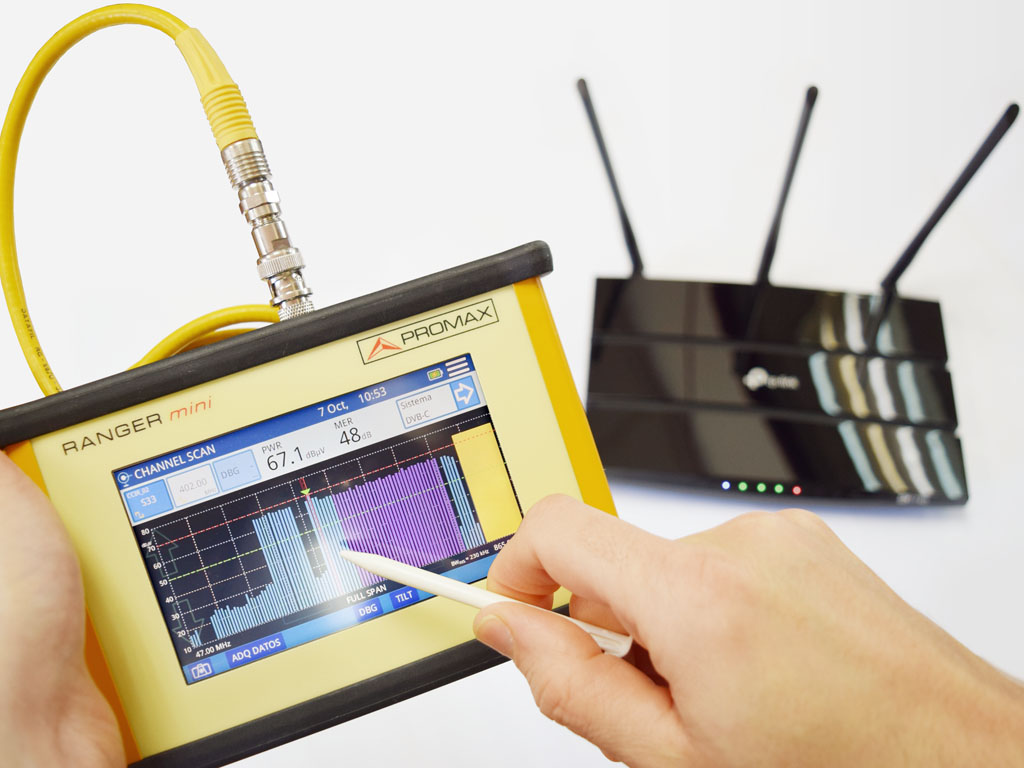

  • DOCSIS band compatible: It includes QAM and analogue measurements.
  • Optional optical to RF integrated converter.

TUNING From 5 to 2700 MHz (by frequency or by channel)
BANDWIDTH RESOLUTION 230 kHz or 2 MHz
UNITS dBmV, dBµV, dBm
LNB SUPPLY 13 V, 18 V, 22 kHz tone
CHANNEL PLANS CCIR, EIA, HRC, IRC, OIRL, FCC
(up to 10 standard and 30 customized)
STANDARDS AND MEASUREMENTS (analogue)
Terrestrial and Analogue TV Level, A/V, C/N
Analogue CATV CSO, CTB, HUM
FM Level, Audio carrier demodulation
STANDARDS AND MEASUREMENTS (digital)
Terrestrial DVB-T Power, MER, preBER, VBER, Constellation
Terrestrial DVB-T2 Power, MER, preBER, LBER, Constellation
ISDB-T Power, MER, preBER, LBER, Constellation
Satellite DVB-S, DVB-S2 Power, MER, preBER, LBER, Constellation
CATV
  QAM Annex A, QAM Annex B Power, MER, preBER, postBER, Constellation
  DOCSIS 2.0, DOCSIS 3.0 Power, MER (over QAM channels), BER, Constellation, Upstream channel analysis
  DOCSIS 3.1 Power, MER (estimated COFDM), Constellation, Upstream channel analysis
OPTICAL FIBRE (optional)
Optical band From 1100 to 1700 nm
Optical power meter Calibrated at 1310, 1490, 1550 and 1625 nm
Optical to RF converter Conversion to RF band from 45 MHz to 1700 MHz
Measurement tools Spectrum analyzer, SCAN, TILT, Downstream DOCSIS analyzer
FUNCTIONS SCAN, TILT, Input voltage, RF power meter

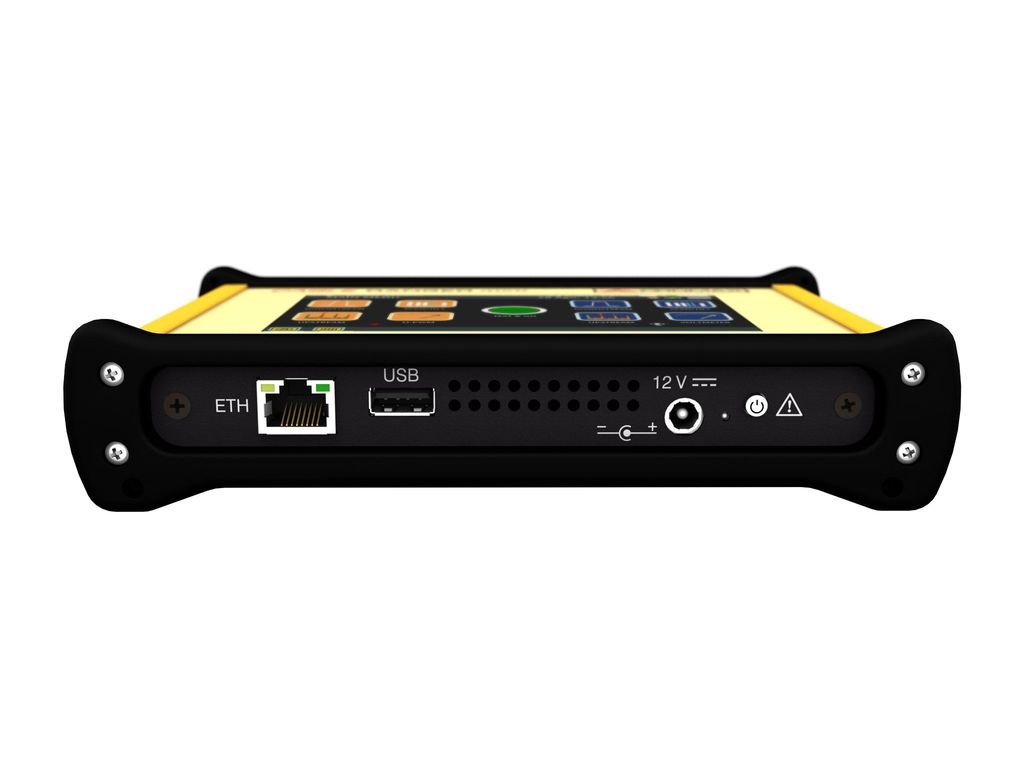

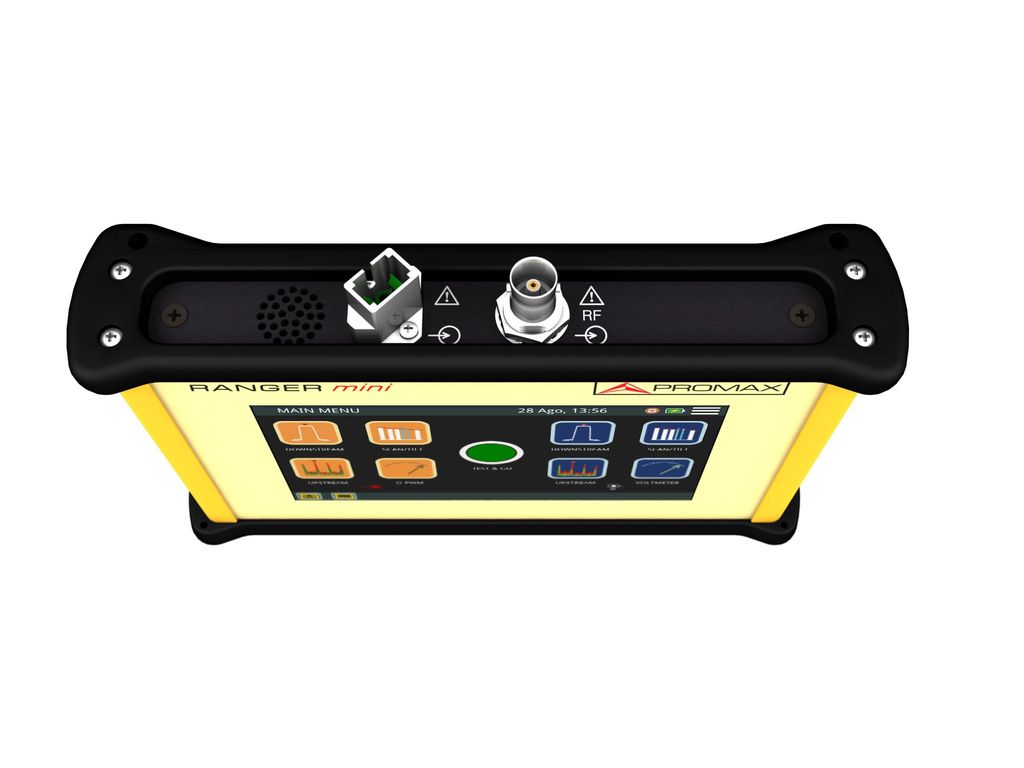

INPUTS AND OUTPUTS RF, USB, Ethernet, Power supply
SCREEN 5” Touch screen TFT LCD
BATTERY OPERATION TIME More than 4 hours in continuous mode
MECHANICAL FEATURES
Dimensions 177 (W.) x 117 (H.) x 30 (D.) mm
Weight 700 gr
