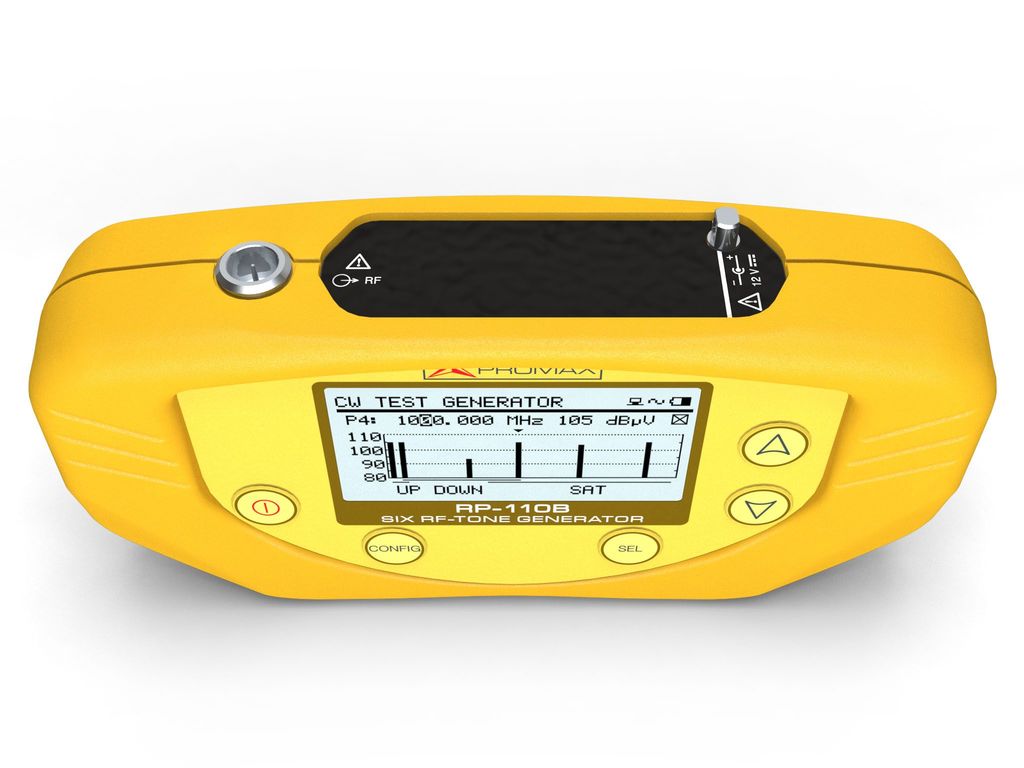

RP-110: Test signal generator for coaxial cable

RP-110: Test signal generator for coaxial cable

Test signal generator to certificate coaxial cable in all the bands used for coaxial cable: CATV and SMATV.


The RP-110 is a test signal generator to certificate coaxial cable in all the bands used for coaxial cable: CATV and SMATV.

It provides of six pilots of frequency and level selectable by the user.

  • Output level independent for each pilot and variable from 80 to 110 dBuV in steps of 1 dB (for P4: from 83 to 110 dBµV)
  • 8 preset memories for the six pilot signals.
  • Frequency resolution: 25 kHz.
  • User interface in several languages.
  • USB to PC connection for firmware updating and to configure frequencies and levels.

PILOTS
  • P1: from 5.00 MHz to 10.00 MHz
  • P2: from 55.00 MHz to 100.00 MHz
  • P3: from 460.00 MHz to 540 MHz
  • P4: from 800.00 MHz to 1000.00 MHz
  • P5: from 1450.00 MHz to 1750 MHz
  • P6: from 1850.00 MHz to 2150.00 MHz
NUMBER OF PRESETS 8
UPSTREAM BANDWIDTH P1, P2
DOWNSTREAM BANDWIDTH (Downstream CATV and UHF) P2, P3, P4
SATELLITE DOWNSTREAM BANDWIDTH (IF Sat) P4, P5, P6
