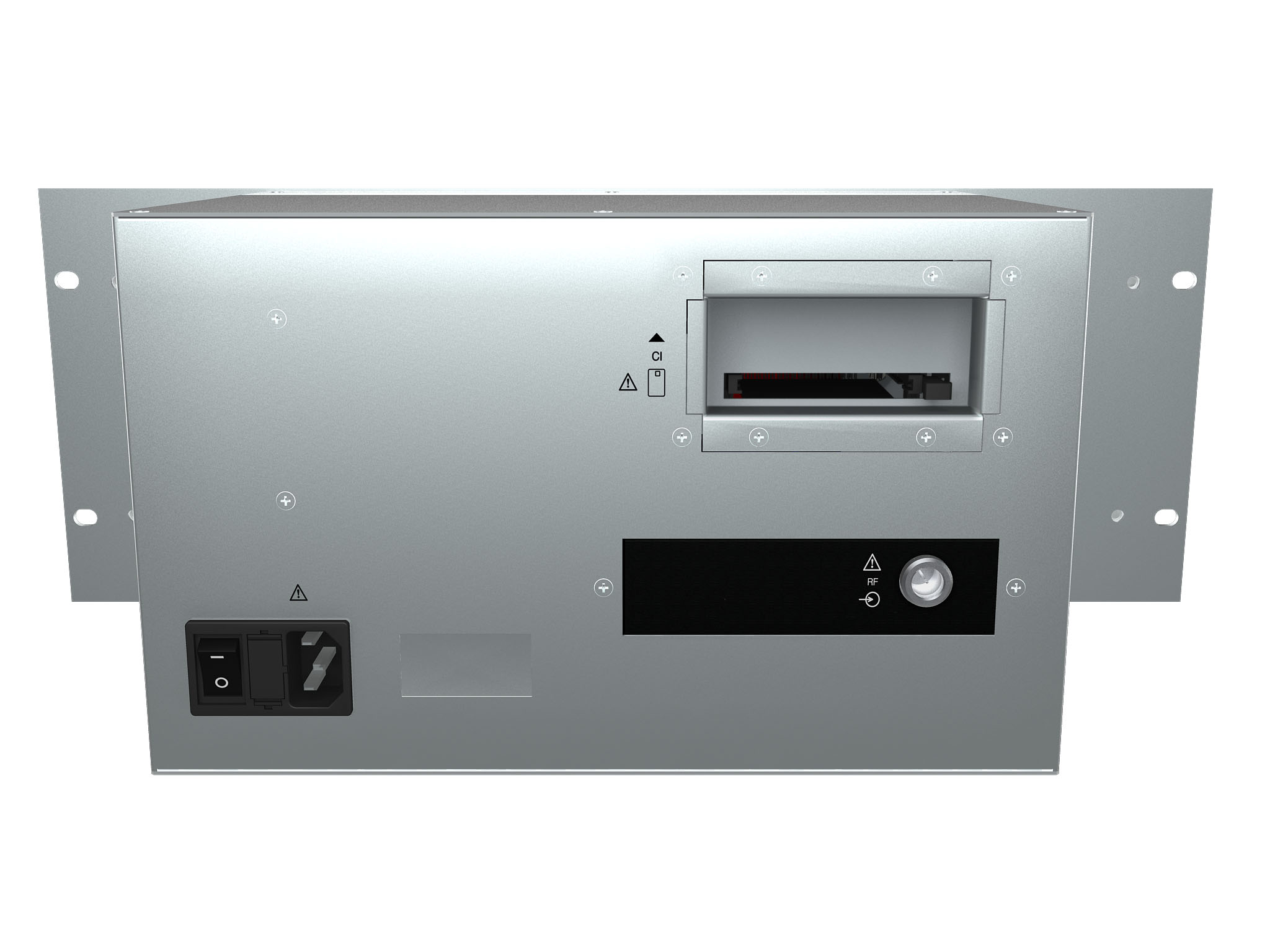

RANGERNeo Rack 2: Rack-mountable TV signal and spectrum analyzer (professional class)

RANGER Neo Rack 2: Rack-mountable TV signal and spectrum analyzer (professional class)
RANGER Neo Rack 2: Rack-mountable TV signal and spectrum analyzer (professional class)
RANGER Neo Rack 2: Rack-mountable TV signal and spectrum analyzer (professional class)
RANGER Neo Rack 2: Rack-mountable TV signal and spectrum analyzer (professional class)

RANGERNeo Rack 2: Rack-mountable TV signal and spectrum analyzer (professional class)

Professional signal analyzer designed for expert installers and broadcast engineers. Includes IPTV analyzer, High resolution filters, TS-ASI input/output, CAM (Common Interface) slot, Transport Stream recorder/player/analyzer plus all the RANGER Neo Rack +.


Datasheet

Video

The RANGER Neo Rack 2 is a professional Field Strength Meter and Spectrum Analyzer that is part of a new breed of multifunction, TV, Satellite, CATV and WIFI analyzers.

They are intended to help expert installers and broadcast engineers not only to make their classic installation and troubleshooting work easier but also to deal with the many challenges brought about by the wireless world and the new video delivery platforms.

HEVC H.265 decoding and exceptional spectrum analyser capabilities are at the heart of the RANGER Neo Rack 2 field strength meter surrounded by many functions such as WiFi analysis (including real spectrum display), wide band LNB compatibility, constellation diagram, dynamic echoes analysis, etc..., all in a very compact and light weight product ideal for field work.

TRY THE REMOTE CONTROL NOW

  • The password is Password. Please release the system for another user when you have finished by clicking on CONFIG > LOGOUT.
  • The system supports one user at a time. Please wait a minute if it is busy.
  • DVB-T2/C2/S2, DSS, Dolby Digital Plus
  • ISDB-T/Tb
  • Super spectrum analyzer with Triple split display
  • IPTV analyzer
  • High resolution filters
  • TS-ASI input and output
  • Common Interface slot
  • Transport stream analyzer, recorder and player
  • Dynamic echoes analysis
  • Touch screen
  • HEVC H.265 decoding
  • Wide band LNB compatibility
  • Wi-Fi analyzer
  • webControl remote control
  • Merogram and Spectrogram
  • Fibre optics and GPS options

RACK ASSEMBLY 19” 4U 482 (W.) x 178 (H.) x 238,7 (D.) mm
OPERATION MODES Hybrid operation: 7” touch screen or conventional buttons
DIGITAL STANDARDS
  • DVB-T, DVB-T2, DVB-T2 lite
  • DVB-C, DVB-C2
  • DVB-S, DVB-S2, DVB-S2 multistream
  • ISDB-T/Tb
  • DSS, ACM/VCM/CCM
  • MPEG-TS
VIDEO CODECS MPEG-2, MPEG-4 H.264, HEVC H.265
AUDIO CODECS MPEG-1, MPEG-2, HE-AAC, Dolby Digital, Dolby Digital Plus
INPUTS AND OUTPUTS
  • Universal RF connector 75 Ω
  • ASI-TS input and output
  • IPTV input UDP/RTP RJ45 Ethernet 1 Gbps
  • HDMI™ output
  • IP input for remote control
  • Analogue Video/Audio input
  • Common Interface module slot
  • 2xUSB for data tranferring and GPS module
FUNCTIONS
  • 4K detection
  • Constellation diagram
  • LTE ingress test
  • Dynamic echoes analysis
  • StealthID (instant identification of tuning parameters)
  • PLS (Physical Layer Scrambling)
  • Ultra fast spectrum analyzer (70 ms sweep time)
  • 4K Frame grabber
  • MAX and MIN hold
  • FM RDS radio measurement and decoding
  • Screenshots and Datalogger for measurement reports
  • Beacon-Flyaways for SNG & VSAT
  • Wideband LNB
  • WiFi 2.4 GHz
  • LTE 1.8 GHz
  • OTT
  • Service recording
  • Field strength measurement
  • Task planner
  • HbbTV information
  • DAB+ channel plan included
  • Merogram
  • Spectrogram
  • Signal monitoring
  • Remote control (webControl)
  • MER by carrier
  • Video/Audio Streaming
  • SCAN + TILT
  • Shoulder attenuation
  • TS recording
  • TS analysis
  • IPTV multicast measurement and decoding
RESOLUTION BANDWIDTHS
  • 2, 10, 20, 30, 40, 100, 200 kHz
  • 1 MHz
OPTIONS
  • Advanced DAB/DAB+ analyzer
  • GPS Coverage Analysis
  • Advanced FM radio analyzer
  • OPM + Optical-to-RF converter + WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input
  • WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input
PC CONNECTION (via ethernet interface)
  • NetUpdate 4 (free software)
  • Free and automatic firmware updates
  • Remote control (webControl)
  • User customised channel plans
  • Measurement reports and screenshots
  • Audio/Video streaming
