TV EXPLORER NG: Universal TV and Spectrum analyzer

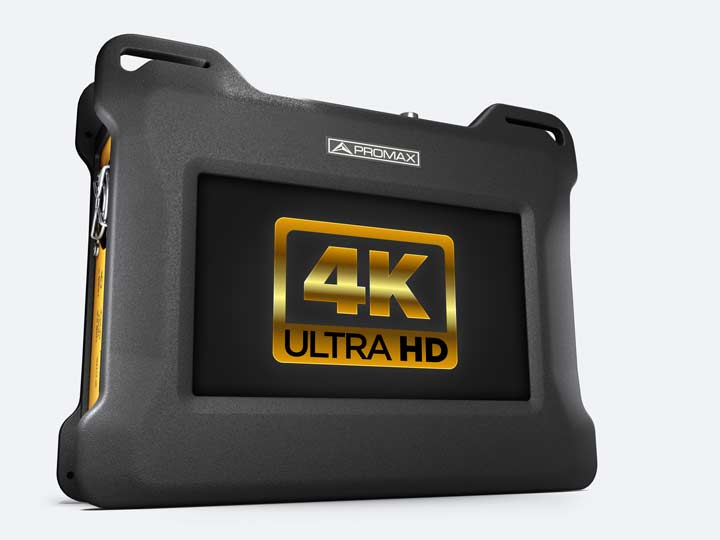

Introducing the next-generation TV EXPLORER, now with native 4K support, DVB-T2, ISDB-T/Tb and optionally ATSC 3.0 and DVB-S2x. Its multi-touch user interface offers smartphone-like intuitiveness, making navigation effortless.

Datasheet

Video

REQUEST A QUOTE

Do you need more help?

The TV EXPLORER NG is the brand new version of the TV EXPLORER, the TV analyzer that was there for the switch to digital broadcasting. Now that we're in a totally digital world, with Ultra HD-4K taking off and DVB-S2x, DVB-T2, and ATSC 3.0 arriving, the new TV EXPLORER NG offers support for the most recent broadcasting standards.

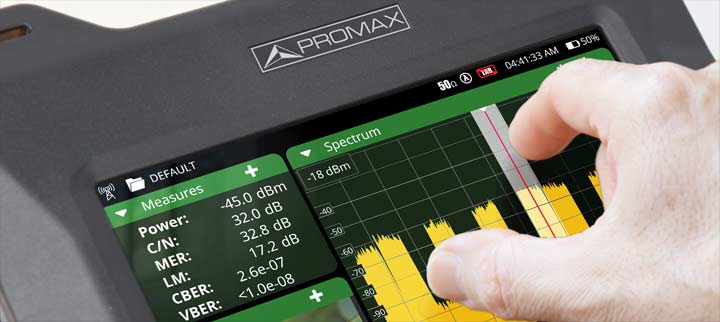

With its docking panel-based user interface with multi-touch screen makes it exactly as intuitive as a contemporary instrument should be. Furthermore, its multi-core processor ensures an immediate response. Simple like a TV EXPLORER, agile as your mobile phone.

Featuring all the necessary technologies for today's landscape: Second-generation DVB standards (optionally including DVB-S2x), ISDB-T/Tb and optionally ATSC 1.0 and ATSC 3.0. It also includes compatibility with HbbTV (Hybrid Broadcast Broadband TV) technology and effortlessly decodes video encoded in HEVC H.265, even in UHD 4K HDR 10-bit, maintaining full performance.

Instantly generate measurement reports and ensure compliance with major governmental regulations like ICT-2 (Spain), RITEL (Colombia), or DUCTOS (Chile).

BROADCAST STANDARDS
Digital terrestrial TV / Radio	DVB-T, DVB-T2 (T2-base, T2-lite), ISDB-T/Tb (full seg / 1sec), DAB, DAB+
Digital cable	DVB-C, DVB-C2, J.83 annex-B, 16/64/256-QAM
Digital satellite	DVB-S, DVB-S2 VCM/ACM/CCM, DSS, DVB-S2x (optional)
Analogue	Analogue terrestrial (PAL, SECAM, NTSC), FM RDS

SPECTRUM ANALYZER	From 5 to 1000 MHz (Terrestrial) From 950 to 2180 MHz (Satellite)

INPUTS AND OUPUTS	Universal RF input (BNC, female 75 Ω) Analogue audio/video input (jack 3.5 mm) HDMI™ output (v1.4b up to 3840x2160 pixels @30 Hz) USB 2.0 master/device (Type C). Mass storage and remote control commands Ethernet (RJ45) for webControl and remote control commands Optical input (FC/APC, female) Stereo headphone audio output (jack 3.5 mm) USB 3.0 host (A-type, USB-CDC devices)

FUNCTIONS

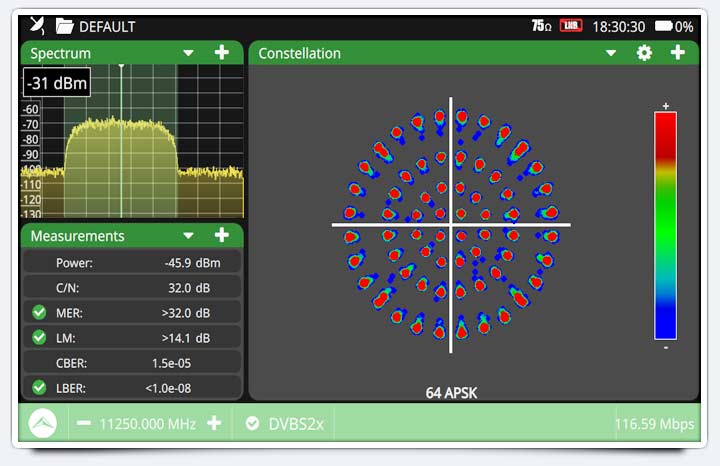

Constellation diagram

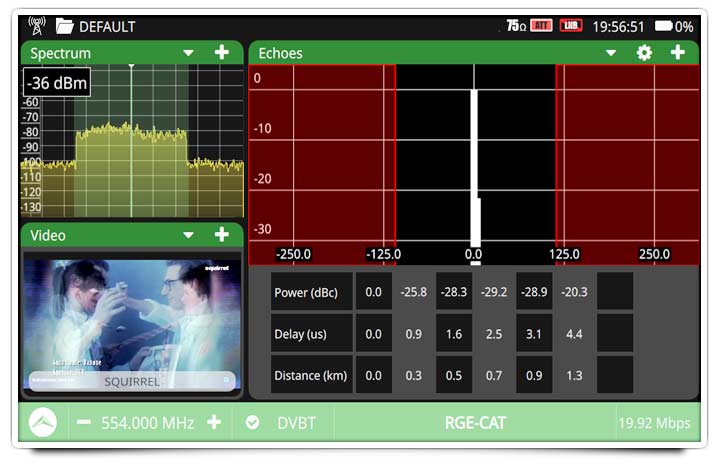

Dynamic echoes analysis
StealthID (instant identification of tuning parameters)
PLS (Physical Layer Scrambling)
Ultra fast Spectrum analyzer
4K decoder
MAX and MIN hold
FM RDS measurement and decoding
Screenshots and Datalogger for measurement reports
WiFi

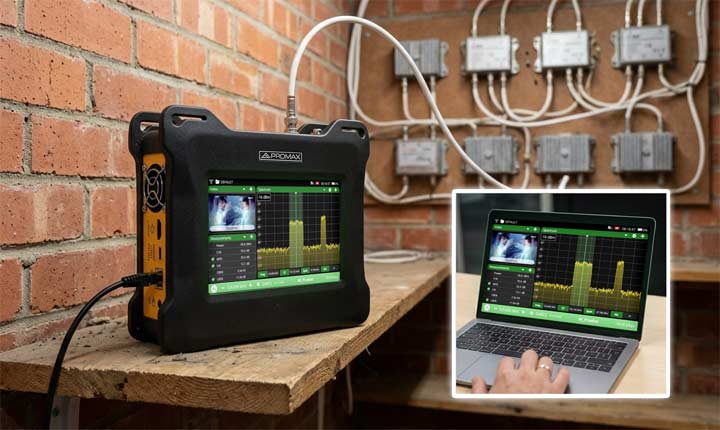

Remote control (webControl)
MER by carrier
TS recording
ALP recording

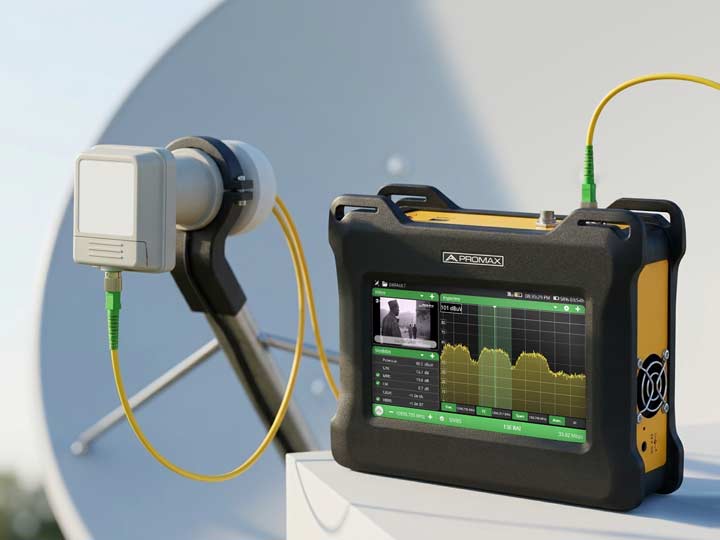

Full band optical power measurement
8 GB internal memory, expandable vía USB
FM stations discovering.
Blind Scan search.

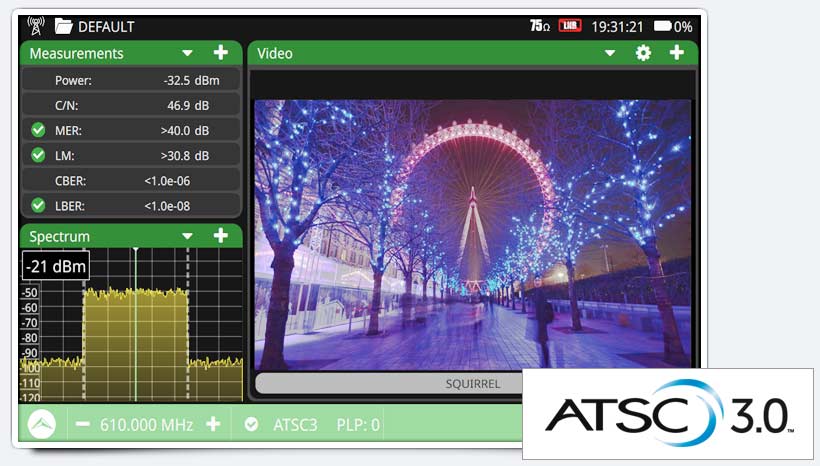

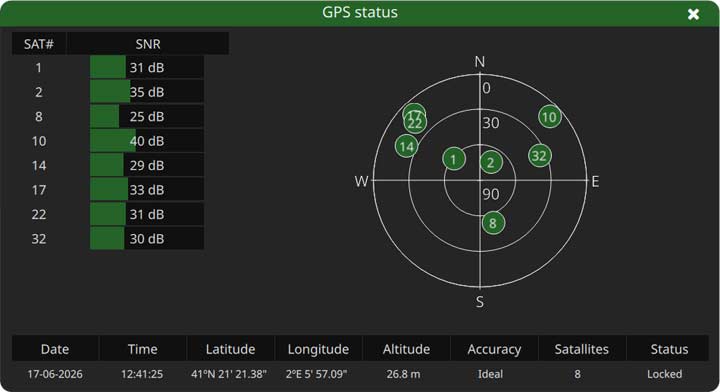

OPTIONS	ATSC 1.0 and ATSC 3.0 standards. Optical fibre: Selective optical power meter DAB/DAB+ digital radio advanced measurements FM radio advanced measurements Signal coverage analysis (drive test) with GPS
