ATLAS IP: Portable analyzer for broadcast environments

ATLAS IP: Portable analyzer for broadcast environments
ATLAS IP: Portable analyzer for broadcast environments
ATLAS IP: Portable analyzer for broadcast environments
ATLAS IP: Portable analyzer for broadcast environments
ATLAS IP: Portable analyzer for broadcast environments
ATLAS IP: Portable analyzer for broadcast environments
ATLAS IP: Portable analyzer for broadcast environments

ATLAS IP: Portable analyzer for broadcast environments

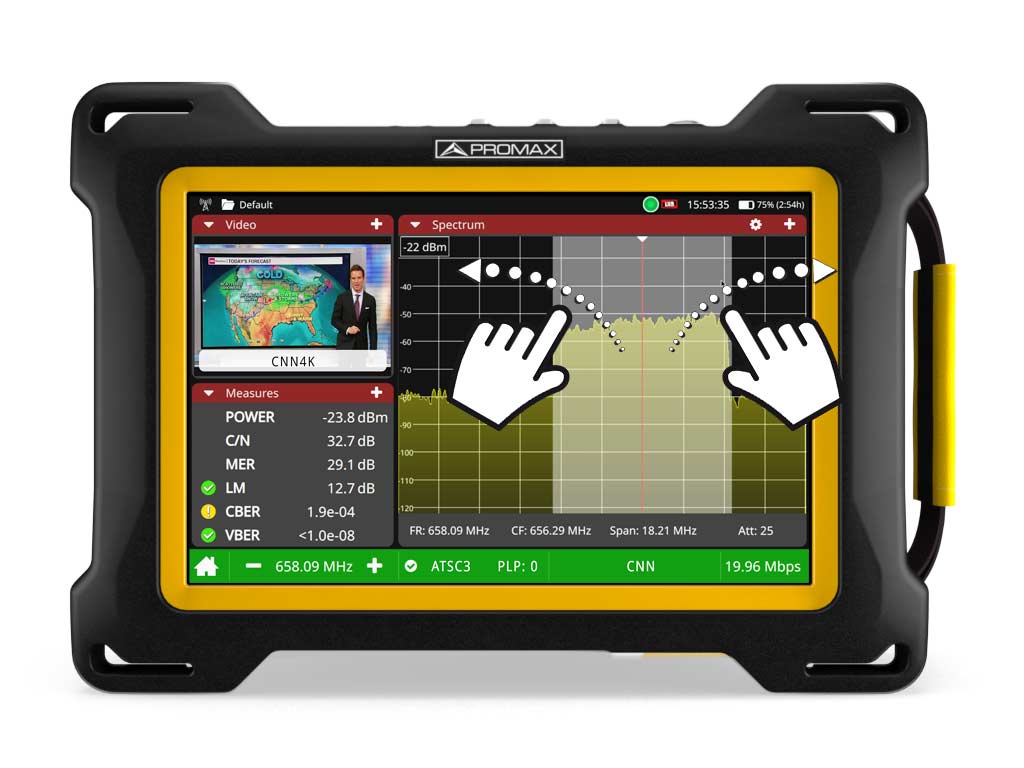

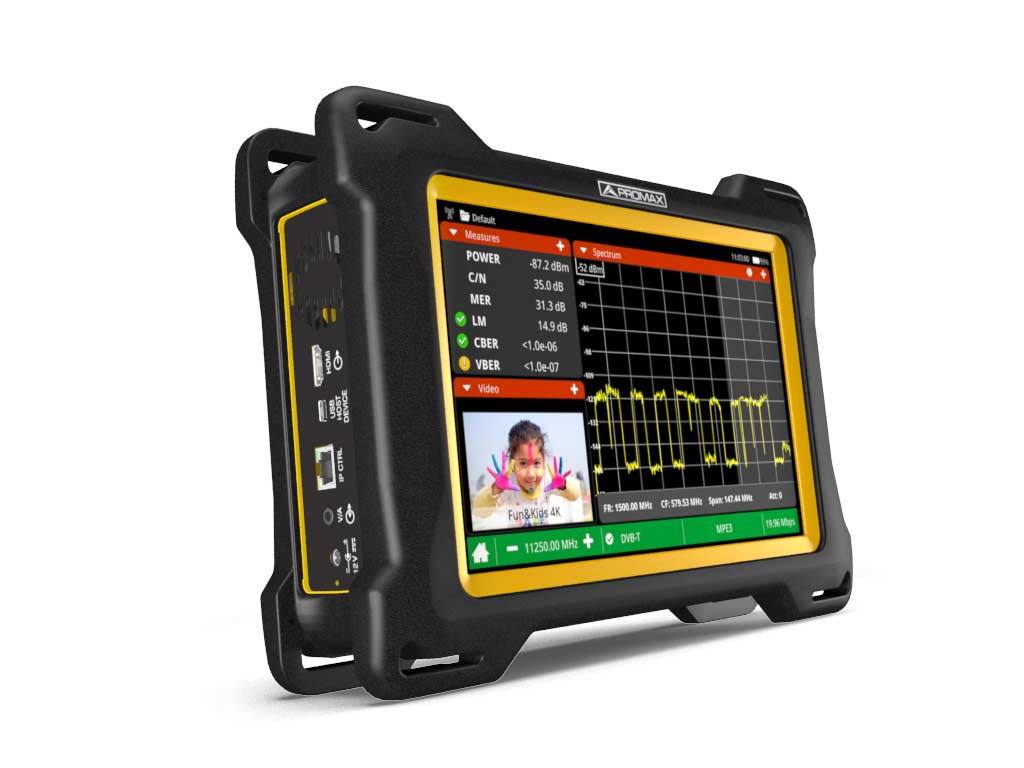

ATLAS IP is a multicast and unicast IPTV analyzer, with SRT protocol support and optionally ST 2110. It includes SD-SDI, HD-SDI, and 3G-SDI over RF (and, on demand, over optical fiber).


Datasheet

The PROMAX ATLAS IP establishes itself as the essential professional measurement tool for the All-IP transition within the broadcast industry. This multifunction portable IPTV analyzer is designed for engineers requiring critical monitoring of transport streams in contribution and distribution environments. Featuring native support for IP Multicast/Unicast, 3G-SDI, and ASI-TS interfaces, it enables comprehensive validation of both compressed and uncompressed signals.

As a benchmark in professional video instrumentation, the ATLAS IP integrates advanced decoding for 10-bit 4K UHD H.265 (HEVC) codecs and Dolby AC4 audio systems. Its advanced diagnostic capabilities include eye diagram analysis for SDI signals and monitoring of low-latency transport protocols such as SRT (Secure Reliable Transport).

Ready for the future of IP production, it offers optional support for the SMPTE ST 2110 standard, ensuring precise synchronization with the network's PTP Master Clock. Its intuitive multi-touch interface allows for customizable dashboard management, facilitating real-time error detection in T2MI, BTS, and MPEG-TS streams. Optimize the efficiency of your live broadcasts and studio workflows with the most versatile broadcast analyzer on the market.

IPTV MULTICAST/UNICAST OPERATING MODE More than 20 measurements (including Jitter, Packet rate, Histogram + jitter, Inter Packet Arrival Time). Multicast. T2MI&BTS reception.
SD/HD/3G-SDI OPERATING MODE 3 Gbps input/output. Eye statistical diagram, CRC error detection, 16 AES3 audio channel monitoring, 1080p 60 pattern chart.
ASI-TS OPERATING MODE ASI-TS TS, T2MI and BTS support
STREAMING ANALYZER MODE SRT reception in caller, listener, and rendezvous modes. More than 12 metrics including RTT, latency, NACK packets, and received TS analysis. OTT measurements.

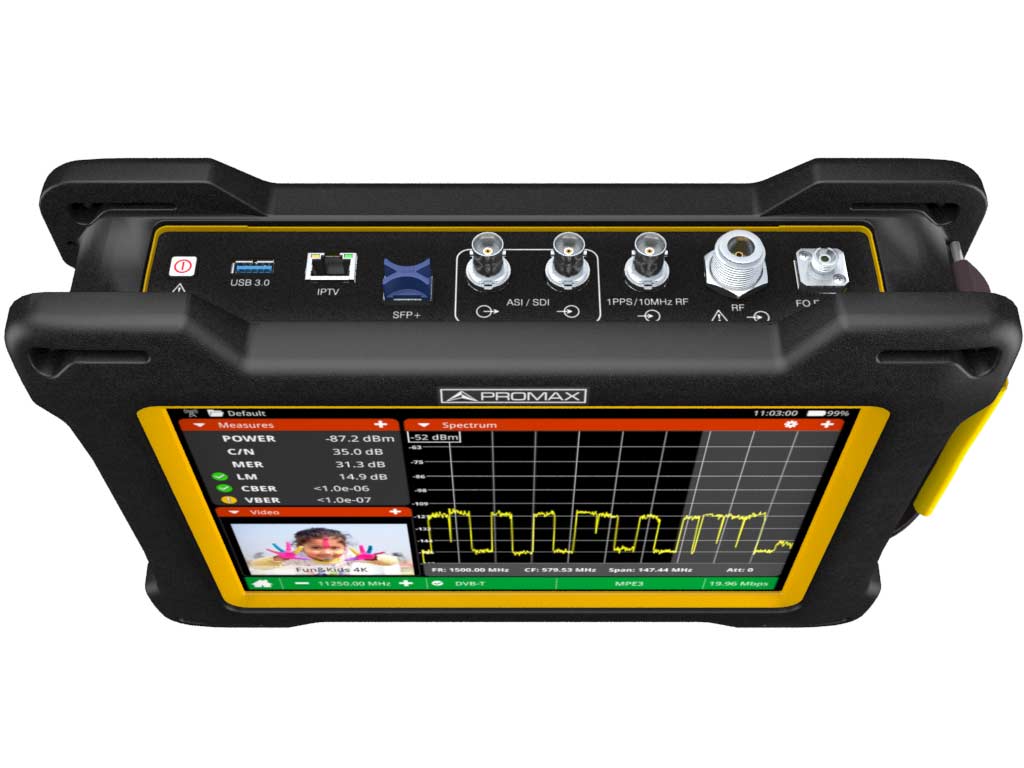

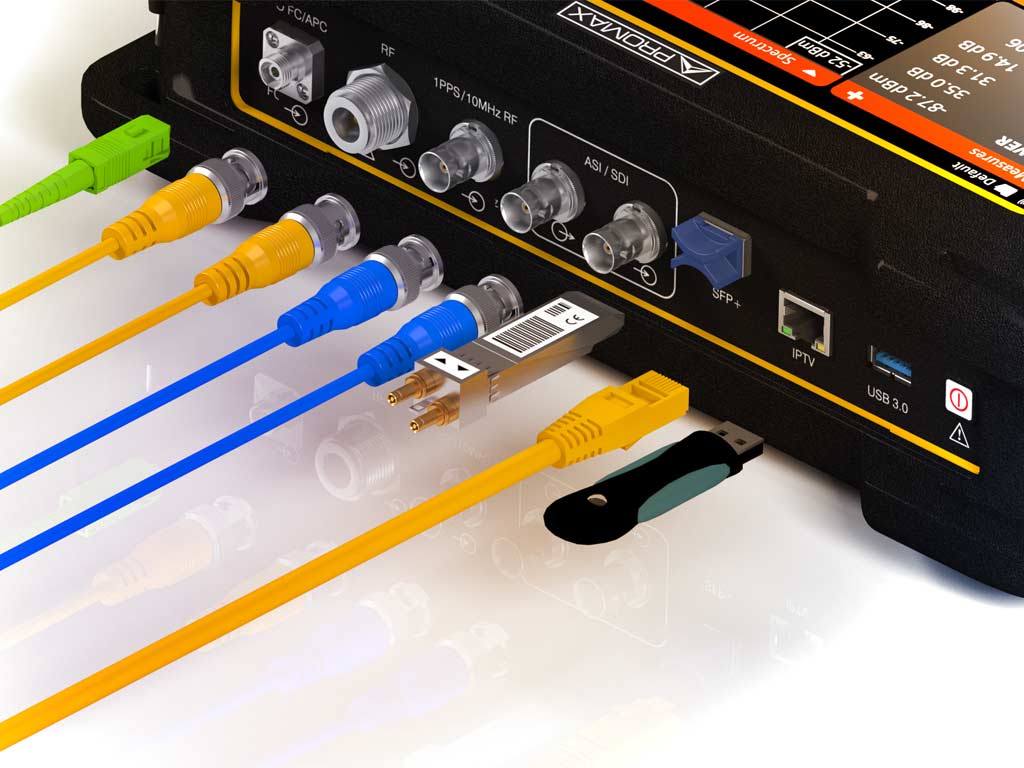

INPUTS AND OUPUTS
  • ASI/SDI input and output (BNC female, 75 Ω 3 Gbps)
  • SFP+ connector
  • HDMI™ output (v1.4b up to 3840x2160 pixels @30 Hz)
  • USB 2.0 master/device (Type C). Mass storage and remote control commands
  • Ethernet (RJ45) for webControl and remote control commands
  • IPTV input (RJ45 Ethernet, 10/100/1000 Mbps)
  • Stereo headphone audio output (jack 3.5 mm)
  • USB 3.0 host (A-type, USB-CDC devices)
  • CAM (DVB-CI compliant, module input
FUNCTIONS
  • SMPTE ST2110 measurements (optional)
  • SRT measurements
  • 4K decoder
  • Screenshots
  • Service recording
  • Task planner
  • Signal monitoring
  • Remote control (webControl)
  • Video/Audio streaming
  • TS recording
  • TS analysis
  • IPTV multicast: measurement, decoding
  • Eye diagram (HD-SDI, 3G-SDI)
  • 8 GB internal memory, expandable via USB
  • OTT
OPTIONS
  • Optical SDI and ASI output
  • Optical SDI and ASI input
  • ST2110 protocol support

ATLAS NG
ATLAS IP
TV EXPLORER NG
RANGER Neo 3
RANGER Neo 2
RANGER Neo +
RANGER Neo Lite
HD RANGER ECO
HD RANGER UltraLite
TVHUNTER+
SATHUNTER+
DIGITAL BROADCAST STANDARDS
DVB-T/T2 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ (by version)
DVB-T2 Lite ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
DVB-S/S2 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
DVB-S2 Multistream ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
DVB-S2x optional optional optional
DSS ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
ISDB-T/Tb ✓ ✓ ✓ ✓ ✓ ✓ ✓ (by version)
ATSC ✓ ✓ optional ATSC version ATSC version ATSC version
ATSC 3.0 ✓ ✓ optional
ACM / VCM / CCM ✓ ✓ ✓ ✓ ✓ ✓ ✓
MPEG-TS ✓ ✓ ✓ ✓ ✓
DVB-T2-MI ✓ ✓ ✓ ✓
BROADCAST FUNCTIONS
RF spectrum analyzer range 5 MHz to 3 GHz 5 to 2150 MHz 5 to 2500 MHz 5 to 2500 MHz 5 to 2500 MHz 5 to 2500 MHz 5 to 2150 MHz 5 to 2150 MHz 170 to 850 MHz (tuner only) 950 to 2150 MHz (tuner only)
Advanced DAB/DAB+ analyzer optional optional optional optional
Advanced FM analyzer optional optional optional optional
T2-MI and Network delay margin (DVB) advanced basic
Wideand LNB compatibility (wbLNB) ✓ ✓ ✓ ✓ ✓
Echoes analysis (DVB-T/T2/C2, ISDB-T) ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Constellation diagram ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Spectrogram ✓ ✓ ✓ ✓ ✓
Heat map spectrum analyzer mode ✓ ✓
Merogram and MER by carrier (DVB-T2) ✓ ✓ ✓ ✓ ✓
Shoulder attenuation measurement ✓ ✓ ✓ ✓
Blind scan ✓ ✓
Signal monitoring ✓ ✓ ✓ ✓ ✓
GPS for drive test ✓ optional ✓ optional optional
Jitter measurement ✓ ✓
WIRELESS
4G/5G cellular measurements (dual SIM slot) optional
2.4 GHz Wi-Fi analyzer Access points and RF Access points Access points Access points and RF Access points and RF Access points and RF Access points and RF
5 GHz Wi-Fi analyzer Access points and RF Access points Access points Access points and RF (optional) Access points and RF (optional) Access points and RF (optional)
1.8 GHz LTE analyzer ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
2.6 GHz LTE analyzer ✓ optional optional optional
OPTICAL
Non-Selective Optical power meter ✓ ✓
Selective optical power meter optional optional optional optional optional
Optical to RF converter optional optional optional optional
IP & STREAMING PROTOCOLS
Optical ASI and SDI input/output optional optional
OTT Advanced Advanced Basic Basic Basic Basic
IPTV analyzer ✓ ✓ ✓ ✓
IPTV VLAN, Multistream multicast/unicast analysis ✓ ✓
SMPTE ST-2110 protocol optional optional
SRT protocol ✓ ✓
SPECTRUM ANALYZER
Professional spectrum analyzer 5 MHz to 6 GHz
4 markers and traces ✓
Resolution filters: 100 kHz, 200 kHz, 1 MHz ✓ 100 kHz only ✓ ✓ ✓ 100 kHz only ✓
Resolution filters: 2, 10, 20, 30, 40 kHz ✓ ✓ ✓
Occupied channel bandwidth measurement ✓
Adjacent channel power measurement ✓
DECODING
4K decoder ✓ ✓ ✓ Frame grabber Frame grabber Frame grabber Frame grabber
H.265 decoder 10-bit 10-bit 10-bit 8-bit 8-bit 8-bit 8-bit
GENERAL
HDMI™ output ✓ ✓ ✓ ✓ ✓ ✓ ✓
Video/Audio input ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
HbbTV information ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
TS-ASI I/O and recording, TS analysis and recording ✓ ✓ TS recording ✓ ✓
SDI analyzer and generator ✓ ✓
Common interface (encrypted channels) ✓ ✓
Touch screen Multi-touch Multi-touch Multi-touch Touch Touch Touch Touch
Battery time > 4 h > 4 h > 4 h > 4 h > 4 h > 4 h > 2 h > 2 h > 2 h 5 h 80 min
webControl and Video/Audio Streaming ✓ ✓ ✓ ✓ ✓ ✓
PSIP analysis and Closed Caption support ✓ ATSC version
Soft carrying case ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Hard transport case ✓ ✓ optional ✓ ✓ ✓
