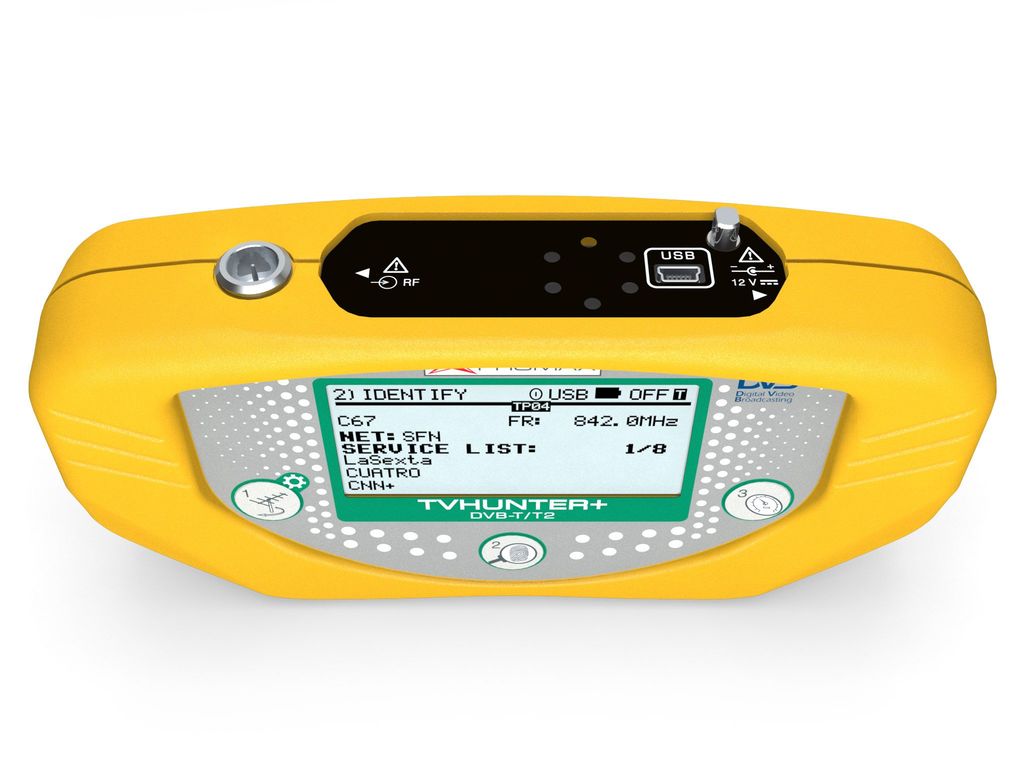

TVHUNTER+: Digital terrestrial TV hunter for DVB-T and DVB-T2

TVHUNTER+: Digital terrestrial TV hunter for DVB-T and DVB-T2
TVHUNTER+: Digital terrestrial TV hunter for DVB-T and DVB-T2
TVHUNTER+: Digital terrestrial TV hunter for DVB-T and DVB-T2

TVHUNTER+: Digital terrestrial TV hunter for DVB-T and DVB-T2

Small handheld easy to use meter, that has been designed for the installation of Digital Terrestrial Television systems for both DVB-T and DVB-T2 systems. It includes the basic measurements to ensure the quality of reception: MER, CBER, VBER, etc.


Datasheet

Video

Manual

The TVHUNTER+ is a small, handheld easy to use meter that has been designed for the installation of Digital Terrestrial Television for both DVB-T and DVB-T2 systems.

The TVHUNTER has become a widely popular tool for DVB-T antenna alignment. The key factors have been its small pocket size and ease of use, still offering proper measurements.

As a natural evolution, TVHUNTER+ is now available allowing full compatibility with DVB-T2 standard for the High Definition digital terrestrial TV broadcasting.

FREQUENCY RANGE 170 MHz to 858 MHz (UHF)
MEASUREMENT POINTS 50 maximum
RF INPUT Universal, including BNC, DIN and F interchangeable adapter
DVB-T2 MEASUREMENTS Channel power, MER, CBER, VBER, Link margin
DVB-T MEASUREMENTS Channel power, MER, CBER, VBER, Link margin
ACCESSORIES
  • Mains power adapter
  • F to BNC/DIN/F adapters
  • Mains cord
  • Car lighter adapter
  • Carrying suitcase
  • Carrying belt
  • USB 2.0 connector cable
  • Quick Reference Guide

TVHUNTER+
SATHUNTER+
TV EXPLORER NG
HD RANGER UltraLite
HD RANGER ECO
RANGER Neo Lite
RANGER Neo +
RANGER Neo 2
RANGER Neo 3
ATLAS NG
DIGITAL BROADCAST STANDARDS
DVB-T/T2 (by version) × ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
DVB-T2 Lite ✓ × ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
DVB-S/S2 × ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
DVB-S2 Multistream × × ✓ × ✓ ✓ ✓ ✓ ✓ ✓
DVB-S2x × × optional × × × × × × optional
DSS × ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
ISDB-T/Tb (by version) × ✓ × × ✓ ✓ ✓ ✓ ✓
ATSC 3.0 × × optional × × × × × × ✓
ACM / VCM / CCM × × ✓ × × ✓ ✓ ✓ ✓ ✓
MPEG-TS × × ✓ × × × × ✓ ✓ ✓
DVB-T2-MI × × ✓ × × × × × ✓ ✓
4K DECODER × × ✓ × × Frame grabber Frame grabber Frame grabber Frame grabber ✓
ST 2110 and SRT PROTOCOLS × × × × × × × × × ✓
AUDIO CODECS
MPEG-1, MPEG-2, HE-AAC, Dolby Digital Plus × × ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
VIDEO CODECS
MPEG-1, MPEG-2, H.264 × × ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
H.265 (HEVC) × × ✓ × × ✓ ✓ ✓ ✓ ✓
INPUTS AND OUTPUTS
Universal 75 Ω input ✓ ✓ × ✓ ✓ × × × × x
Universal 50/75 Ω input × × ✓ × × ✓ ✓ ✓ ✓ ✓
N-type 50 Ω input × × × × × ✓ ✓ ✓ ✓ ✓
HDMI™ output × × ✓ × × ✓ ✓ ✓ ✓ ✓
IP input × × × × × ✓ ✓ ✓ ✓ ✓
Analog A/V input × × ✓ × × ✓ ✓ ✓ ✓ ✓
USB ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
ASI-TS input/output × × × × × × × ✓ ✓ ✓
Multicast IPTV input × × × × × × × ✓ ✓ ✓
Common Interface slot × × × × × × × ✓ ✓ ✓
1 PPS input × × × × × × × × ✓ ✓
SFP+ slot × × × × × × × × × ✓
Headphone stereo output × × ✓ × × × × × × ✓
FUNCTIONS
TVHUNTER+ and SATHUNTER+Spectrum analyzer, Numerical measure, Graphic measure, 50 detection points
Functions - -Constellation, LTE 1.6 GHz, Dynamic echoes, StealthID, PLS, Ultra fast spectrum, MAX/MIN hold, FM RDS, Screen captures, Datalogger, Beacon/Flyaways for SNG and VSAT, Wideband LNB, WiFi 2.4 GHz, LTE, OTT, Service recording, Field strength, Task planner
Additional functions - - Constellation, LTE 1.6 GHz, Dynamic echoes, StealthID, PLS, Ultra fast spectrum, MAX/MIN hold, Screenshots, Datalogger, LTE, TS recording, Task planner, FM RDS (optional), Wideband LNB, WiFi 2.4 GHz, Merogram, Spectrogram, Remote control, MER by carrier, Full band optical power meter Constellation, LTE 1.6 GHz, Dynamic echoes, StealthID, PLS, Ultra fast spectrum, MAX/MIN hold, Screenshots, Datalogger, Beacon/Flyaways for SNG and VSAT, LTE, Service recording, Field strength, Task planner, H.265 detection also includes:
FM RDS, Wideband LNB, WiFi 2.4 GHz, OTT		 also includes:
Merogram, Spectrogram, Signal monitoring, Remote control, MER by carrer, Audio/video streaming, SCAN, TILT, Shoulder attenuation		 also includes:
TS recording, TS analyzer, IPTV multicast		 also includes:
Network delay (DVB), Análisis de DVB-T2-MI
SPECTRUM ANALYZER
Margin (terrestrial) 170 to 850 MHz × 5 to 1000 MHz 5 to 1000 MHz 5 to 1000 MHz 5 to 1000 MHz 5 to 1000 MHz 5 to 1000 MHz 5 to 1000 MHz 5 MHz to 6 GHz
Margin (satellite) × 950 to 2150 MHz 950 to 2150 MHz 950 to 2150 MHz 950 to 2150 MHz 250 to 2500 MHz 250 to 2500 MHz 250 to 2500 MHz 250 to 2500 MHz 5 MHz to 6 GHz
Measurement margin 40 to 100 dBµV 40 to 110 dBµV 20 to 130 dBµV 20 to 120 dBµV 20 to 120 dBµV 10 to 130 dBµV 10 to 130 dBµV 10 to 130 dBµV 10 to 130 dBµV N/A
RESOLUTION BANDWIDTHS
2 kHz (terrestrial) × × × × × × × ✓ ✓ ✓
10/20/30/40 kHz × × × × × × × ✓ ✓ ✓
100 kHz × × ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
200 kHz × × × ✓ × × ✓ ✓ ✓ ✓
1 MHz × × × × × × × ✓ ✓ ✓
BATTERY OPERATION TIME 5 h 80 min 4 h 2 h 2 h 2h 4 h 4 h 4 h 4 h
