RANGERNeo +: Multifunction TV signal and spectrum analyzer (advanced class)

RANGER Neo +: Multifunction TV signal and spectrum analyzer (advanced class)
RANGER Neo +: Multifunction TV signal and spectrum analyzer (advanced class)
RANGER Neo +: Multifunction TV signal and spectrum analyzer (advanced class)
RANGER Neo +: Multifunction TV signal and spectrum analyzer (advanced class)
RANGER Neo +: Multifunction TV signal and spectrum analyzer (advanced class)

RANGERNeo +: Multifunction TV signal and spectrum analyzer (advanced class)

Advanced signal analyzer for expert installers. Includes webControl (remote control), Merogram, Spectrogram, Fiber and GPS options, more than 4 hours of battery life plus all the RANGER Neo Lite functions.


Datasheet

Video

Manual

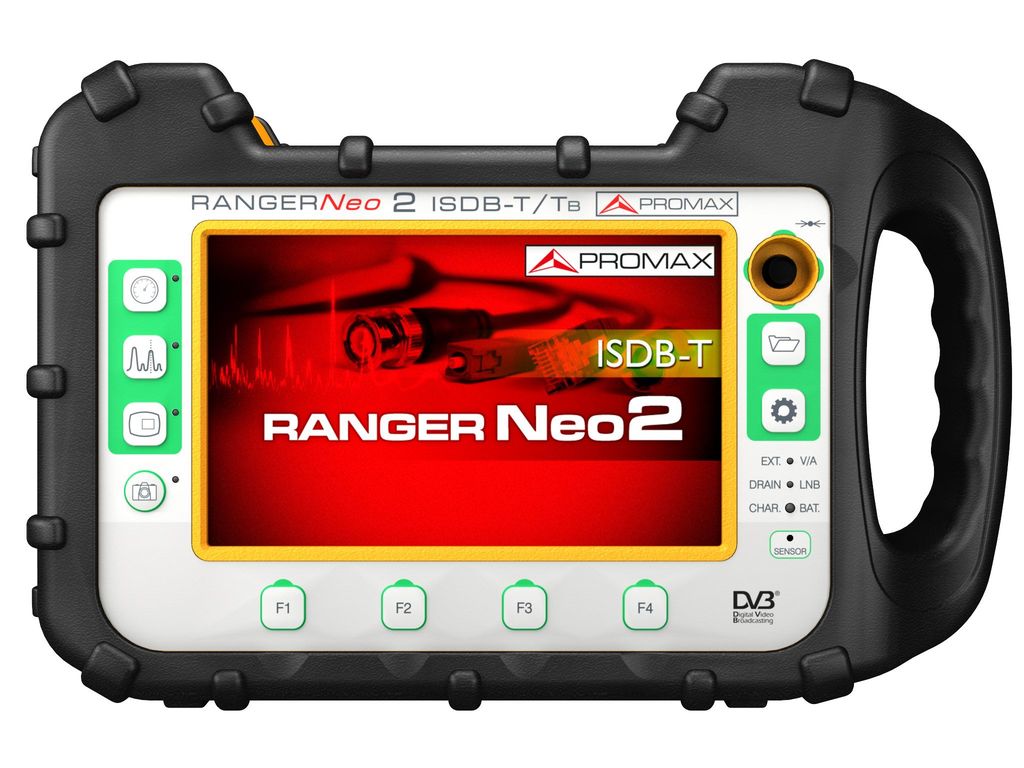

The RANGER Neo + is an advanced Field Strength Meter and Spectrum Analyzer that is part of a new breed of multifunction, TV, Satellite, CATV and WIFI analyzers.

They are intended to help expert installers not only to make their classic installation and troubleshooting work easier but also to deal with the many challenges brought about by the wireless world and the new video delivery platforms.

HEVC H.265 decoding and exceptional spectrum analyser capabilities are at the heart of the RANGER Neo + field strength meter surrounded by many functions such as WiFi analysis (including real spectrum display), wide band LNB compatibility, constellation diagram, dynamic echoes analysis, etc..., all in a very compact and light weight product (1600 gr) ideal for field work.

TRY THE REMOTE CONTROL NOW

  • The password is Password. Please release the system for another user when you have finished by clicking on CONFIG > LOGOUT.
  • The system supports one user at a time. Please wait a minute if it is busy.
  • DVB-T2/C2/S2, DSS, Dolby Digital Plus
  • ISDB-T/Tb
  • Super spectrum analyzer with Triple split display
  • Dynamic echoes analysis
  • Touch screen
  • HEVC H.265 decoding
  • Wide band LNB compatibility
  • Wi-Fi analyzer
  • webControl remote control
  • Merogram and Spectrogram
  • Fibre optics and GPS options
  • More than 4 hours battery time

OPERATION MODES Hybrid operation: 7” touch screen or conventional buttons
DIGITAL STANDARDS
  • ISDB-T/Tb
  • QAM annex B
  • DVB-C
  • DVB-S, DVB-S2, DVB-S2 multistream
  • ISDB-T/Tb
  • DSS, ACM/VCM/CCM
VIDEO CODECS MPEG-2, MPEG-4 H.264, HEVC H.265
AUDIO CODECS MPEG-1, MPEG-2, HE-AAC, Dolby Digital, Dolby Digital Plus
INPUTS AND OUTPUTS
  • Universal RF connector 75 Ω
  • HDMI™ output
  • IP input for remote control
  • Analogue Video/Audio input
  • 2xUSB for data tranferring
FUNCTIONS
  • 4K detection
  • Constellation diagram
  • LTE ingress test
  • StealthID (instant identification of tuning parameters)
  • PLS (Physical Layer Scrambling)
  • Ultra fast spectrum analyzer (70 ms sweep time)
  • 4K Frame grabber
  • MAX and MIN hold
  • FM RDS radio meas. and decoding
  • Screenshots and Datalogger for measurement reports
  • Beacon-Flyaways SNG and VSAT
  • Wideband LNB
  • WiFi 2.4 GHz
  • LTE 1.8 GHz
  • OTT
  • Service recording
  • Field strength measurement
  • Task planner
  • HbbTV information
  • DAB+ channel plan included
  • Spectrogram
  • Signal monitoring
  • Remote control (webControl)
  • GPS coverage analysis (optional)
  • Video/Audio Streaming
  • SCAN+TILT
  • Shoulder attenuation
RESOLUTION BANDWIDTHS
  • 100, 200 kHz
  • 1 MHz
OPTIONS
  • GPS Coverage Analysis
  • Rack assembly 19” 4U: 482 (W.) x 178 (H.) x 205 (D.) mm
  • OPM + Optical-to-RF converter + WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input
  • WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input
PC CONNECTION (via ethernet interface)
  • NetUpdate 4 (free software)
  • Free and automatic firmware updates
  • Remote control (webserver)
  • User customised channel plans
  • Measurement reports and screenshots

TVHUNTER+
SATHUNTER+
TV EXPLORER NG
HD RANGER UltraLite
HD RANGER ECO
RANGER Neo Lite
RANGER Neo +
RANGER Neo 2
RANGER Neo 3
ATLAS NG
DIGITAL BROADCAST STANDARDS
DVB-T/T2 (by version) × ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
DVB-T2 Lite ✓ × ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
DVB-S/S2 × ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
DVB-S2 Multistream × × ✓ × ✓ ✓ ✓ ✓ ✓ ✓
DVB-S2x × × optional × × × × × × optional
DSS × ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
ISDB-T/Tb (by version) × ✓ × × ✓ ✓ ✓ ✓ ✓
ATSC 3.0 × × optional × × × × × × ✓
ACM / VCM / CCM × × ✓ × × ✓ ✓ ✓ ✓ ✓
MPEG-TS × × ✓ × × × × ✓ ✓ ✓
DVB-T2-MI × × ✓ × × × × × ✓ ✓
4K DECODER × × ✓ × × Frame grabber Frame grabber Frame grabber Frame grabber ✓
ST 2110 and SRT PROTOCOLS × × × × × × × × × ✓
AUDIO CODECS
MPEG-1, MPEG-2, HE-AAC, Dolby Digital Plus × × ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
VIDEO CODECS
MPEG-1, MPEG-2, H.264 × × ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
H.265 (HEVC) × × ✓ × × ✓ ✓ ✓ ✓ ✓
INPUTS AND OUTPUTS
Universal 75 Ω input ✓ ✓ × ✓ ✓ × × × × x
Universal 50/75 Ω input × × ✓ × × ✓ ✓ ✓ ✓ ✓
N-type 50 Ω input × × × × × ✓ ✓ ✓ ✓ ✓
HDMI™ output × × ✓ × × ✓ ✓ ✓ ✓ ✓
IP input × × × × × ✓ ✓ ✓ ✓ ✓
Analog A/V input × × ✓ × × ✓ ✓ ✓ ✓ ✓
USB ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
ASI-TS input/output × × × × × × × ✓ ✓ ✓
Multicast IPTV input × × × × × × × ✓ ✓ ✓
Common Interface slot × × × × × × × ✓ ✓ ✓
1 PPS input × × × × × × × × ✓ ✓
SFP+ slot × × × × × × × × × ✓
Headphone stereo output × × ✓ × × × × × × ✓
FUNCTIONS
TVHUNTER+ and SATHUNTER+Spectrum analyzer, Numerical measure, Graphic measure, 50 detection points
Functions - -Constellation, LTE 1.6 GHz, Dynamic echoes, StealthID, PLS, Ultra fast spectrum, MAX/MIN hold, FM RDS, Screen captures, Datalogger, Beacon/Flyaways for SNG and VSAT, Wideband LNB, WiFi 2.4 GHz, LTE, Service recording, Field strength, Task planner
Additional functions - - Constellation, LTE 1.6 GHz, Dynamic echoes, StealthID, PLS, Ultra fast spectrum, MAX/MIN hold, Screenshots, Datalogger, LTE, TS recording, Task planner, FM RDS (optional), Wideband LNB, WiFi 2.4 GHz, Merogram, Spectrogram, Remote control, MER by carrier, Full band optical power meter Constellation, LTE 1.6 GHz, Dynamic echoes, StealthID, PLS, Ultra fast spectrum, MAX/MIN hold, Screenshots, Datalogger, Beacon/Flyaways for SNG and VSAT, LTE, Service recording, Field strength, Task planner, H.265 detection also includes:
FM RDS, Wideband LNB, WiFi 2.4 GHz, OTT		 also includes:
Merogram, Spectrogram, Signal monitoring, Remote control, MER by carrer, Audio/video streaming, SCAN, TILT, Shoulder attenuation		 also includes:
TS recording, TS analyzer, IPTV multicast		 also includes:
Network delay (DVB), DVB-T2-MI analyzer
SPECTRUM ANALYZER
Margin (terrestrial) 170 to 850 MHz × 5 to 1000 MHz 5 to 1000 MHz 5 to 1000 MHz 5 to 1000 MHz 5 to 1000 MHz 5 to 1000 MHz 5 to 1000 MHz 5 MHz to 6 GHz
Margin (satellite) × 950 to 2150 MHz 950 to 2150 MHz 950 to 2150 MHz 950 to 2150 MHz 250 to 2500 MHz 250 to 2500 MHz 250 to 2500 MHz 250 to 2500 MHz 5 MHz to 6 GHz
Measurement margin 40 to 100 dBµV 40 to 110 dBµV 20 to 130 dBµV 20 to 120 dBµV 20 to 120 dBµV 10 to 130 dBµV 10 to 130 dBµV 10 to 130 dBµV 10 to 130 dBµV N/A
RESOLUTION BANDWIDTHS
2 kHz (terrestrial) × × × × × × × ✓ ✓ ✓
10/20/30/40 kHz × × × × × × × ✓ ✓ ✓
100 kHz × × ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
200 kHz × × × ✓ × × ✓ ✓ ✓ ✓
1 MHz × × × × × × × ✓ ✓ ✓
BATTERY OPERATION TIME 5 h 80 min 4 h 2 h 2 h 2h 4 h 4 h 4 h 4 h
