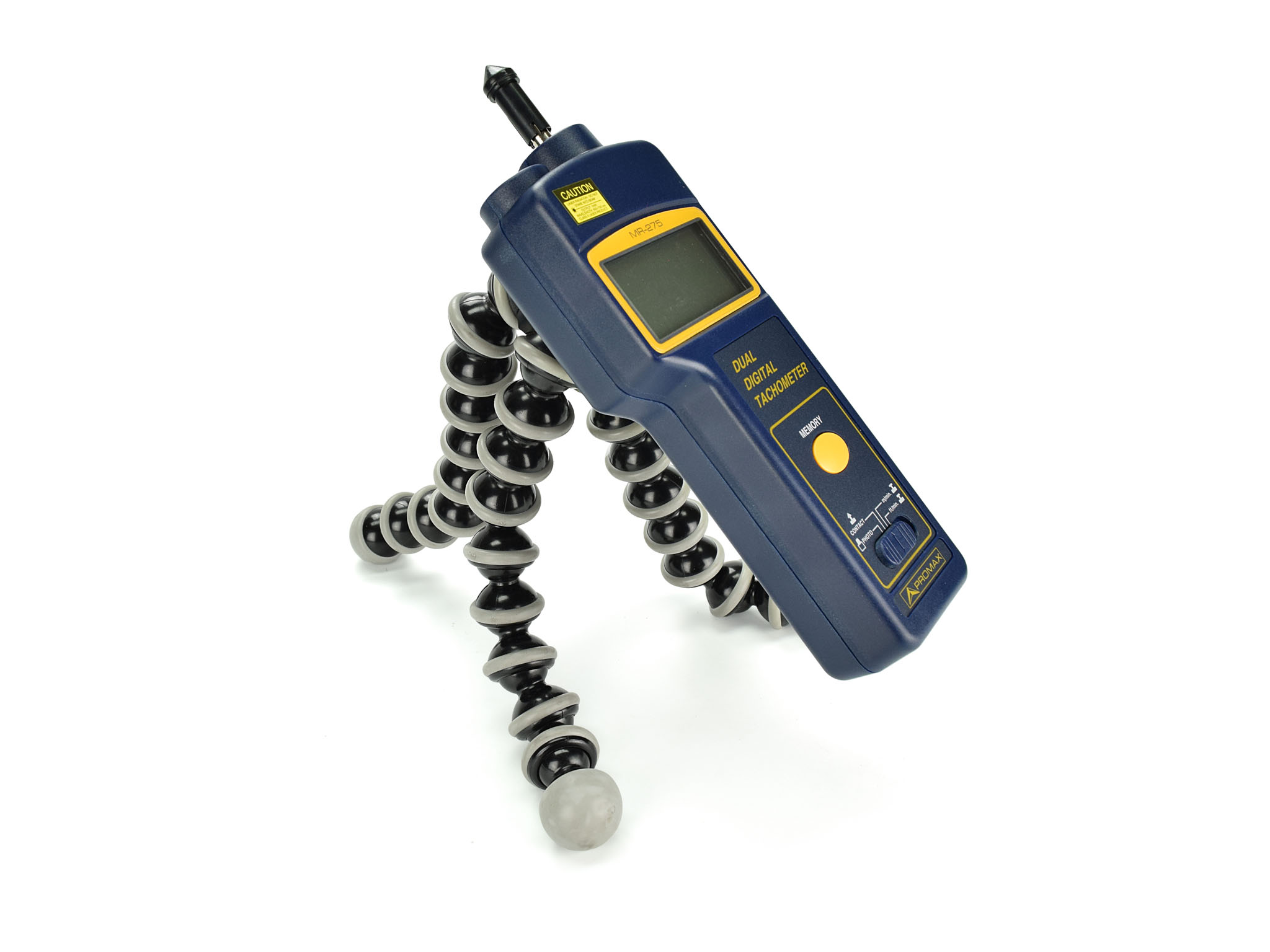

MR-275: Dual Digital tachometer

MR-275: Dual Digital tachometer
MR-275: Dual Digital tachometer
MR-275: Dual Digital tachometer
MR-275: Dual Digital tachometer

MR-275: Dual Digital tachometer

Mechanical-optical dual tachometer that allows to make revolutions per minute (RPM's) and speed (m/min.) measurements. Can be used with any motor or device. It offers a high accuracy (0.005%) up to 1 m distance (without contact).


Datasheet

Manual

The MR-275 is a mechanical-optical dual tachometer that will allow the user to make revolutions per minute (RPM’s) and speed (m/min.) measurements. Can be used with any motor or device. It offers a high accuracy (0.005%) up to 1 m distance (without contact).

Small size and battery powered make it and easy and portable instrument. In addition its ergonomic design allows to be used comfortably with a single hand.

MEASUREMENT & RANGE
PHOTO TACHOMETER 5 to 99,999 RPM
CONTACT TACHOMETER 0.5 to 19,999 RPM
SURFACE SPEED
  • m/ min. 0.05 to 1,999.9 m/ mín
  • ft/min. 0.2 to 6,560 m/ mín
RESOLUTION
RPM
  • 0.1 RPM ( < 1.000 RPM )
  • 1 RPM (≤ 1.000 RPM)
m/min.
  • 0.01 m/ Min. (< 1.000 m/Min. )
  • 0.1 m/ Min. (≤ 100 m/Min. )
ft/min.
  • 0.1 ft/min. (< 1.000 ft/min. )
  • 1 ft/min. (≤ 1.000 ft/min. )
DISPLAY LCD, size 60 x 30 mm, 5 digits (99.999 count)
PHOTO TACHOMETER DETECTING DISTANCE 5 to 100 cm typically
ACCESSORIES Carrying case, Reflecting tape marks, contact adapters (cone/funnel/wheel), User's manual, 4x 1.5V R6V AA batteries, Protective cover for emitter laser
