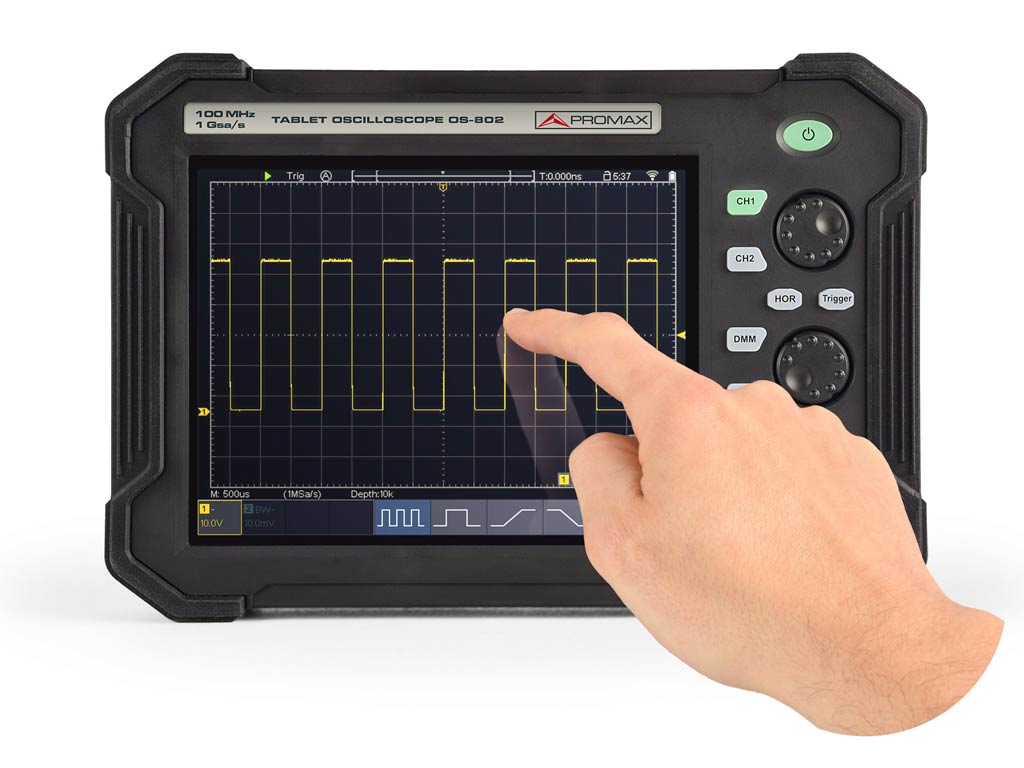

OS-802B: 100 MHz tablet-format digital oscilloscope with multimeter

Double channel and 100 MS/S portable oscilloscope with a built-in 100 VCC, 750 VAC and 10 A multimeter. LabView compatible.

Datasheet

REQUEST A QUOTE

Do you need more help?

The OS-802B poliscope is the all-in-one solution for your measurement needs, featuring a powerful 100 MHz oscilloscope and a versatile multimeter that handles up to 1000 VDC and 750 VAC.

The dual-channel 100 MHz, 1 GS/s oscilloscope features FFT analysis and 39 automatic measurements. It also stores and replays waveforms from its memory. The multimeter's autoscaling mode prevents damage from incorrect range settings.

Take the OS-802B anywhere: It is designed for tough jobs, whether in the field or the lab. With a long-lasting 5-hour battery and a rugged rubber body, it's built to last. The adjustable stand ensures maximum comfort, no matter the task.

BANDWIDTH	100 MHz

SAMPLING RATE	1 GS/s

CHANNELS	2

HORIZONTAL SCALE (s/div)	From 2 ns/div to 1000 s/div, 1-2-5 steps

TRIGGER	Edge, Video, Pulse, Ramp, Runt, Window, Timeout, Nth Edge, Logic, UART, I2C, SPI

RECORD LENGTH	40 M

MULTIMETER
Voltage	1000 VDC, 750 VAC
Current	10 A
Impedance	100 MΩ
Capacitance	2nF to 20 mF
Diodes and Continuity test	Included

SCREEN	Multitouch 8” color LCD screen, 800x600 pixels resolution

COMMUNICATION INTERFACES	USB Host, USB Device, Trigger output (Pass/Fail), Ethernet. Supports SCPI and LabVIEW.

INCLUDED ACCESSORIES	Power cord, Software (CD-ROM), microUSB cable, Probes, Probe adjust tool, AC adapter, Adjustable stand, Current measurement external module, Multimeter test leads, Transport bag
