РусскийThe most flexible replacement for discontinued Lab TV Analyzers
If your work depends on high-precision TV signal analysis in broadcast environments, you have likely used some of the classic TV Analyzers in the process. The now discontinued R&S®ETL TV Analyzer by Rohde & Schwarz for example has been recognized for years as the industry standard.
Essentially a TV Analyzer is normally built upon a powerful spectrum analyzer but adding plenty more specialized features for handling broadcast signals. A purpose-built decoder enables comprehensive analysis of the incoming signal across all steps of its processing. This functionality allows engineers to locate, troubleshoot, and prevent issues both in signal reception and in its handling at the broadcasting facilities.
The most flexible upgrade for most lab Radio &: TV analyzers, both digital and analog

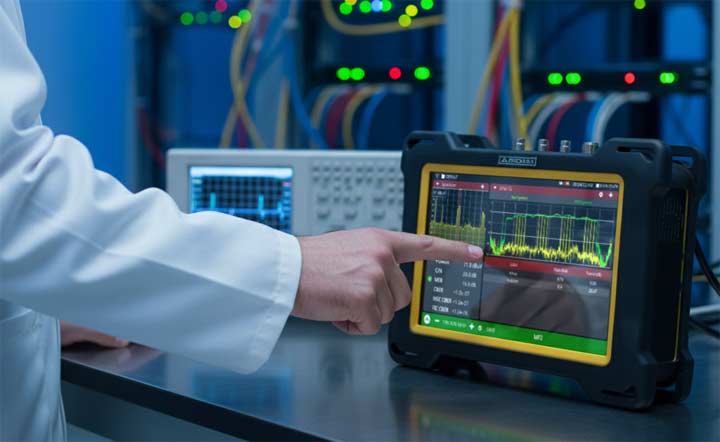

For engineers and technicians now facing the need to renew or replace their TV analysis equipment, the PROMAX ATLAS NG presents itself as flexible and powerful option: A universal, multi-standard TV broadcast analyzer that sets a new benchmark with a 6 GHz spectrum analyzer and comprehensive support for latest-generation standards.
EXPLORE THE ATLAS NG ›Unmatched Standards Compatibility for Broadcast Signal Analysis

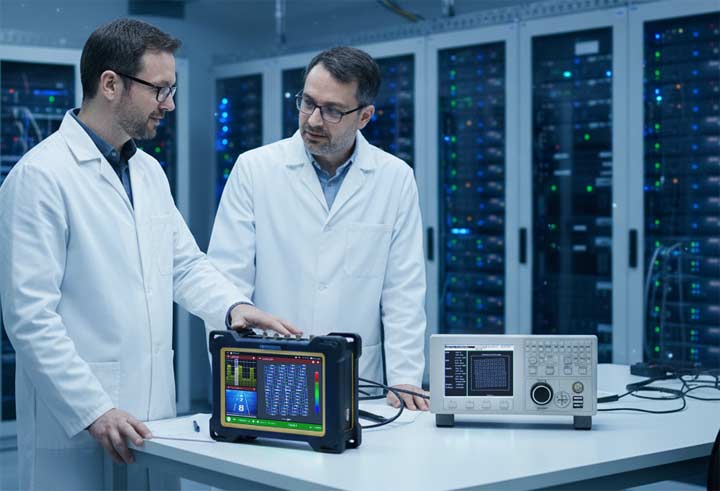

PROMAX ATLAS NG is introduced as the replacement for most lab TV analyzers
The PROMAX ATLAS NG offers full compatibility covering all digital and analog television, cable, and satellite standards, including:
- Digital Terrestrial: DVB-T, DVB-T2 (T2-base, T2-lite), ISDB-T/Tb (full seg / 1seg), ATSC 1.0, ATSC 3.0
- Digital Cable: DVB-C, DVB-C2, J.83 annex-B
- Digital Satellite: DVB-S, DVB-S2 VCM/ACM/CCM, DVB-S2x, DSS
- Analog: Analog Terrestrial (PAL, SECAM, NTSC)
- Analog radio: FM
- Digital radio: DAB and DAB+
Beyond RF: The IP Revolution in Broadcast Delivery
IPTV (multicast and Unicast), OTT, SRT, SDI and ST2110
The ATLAS NG goes beyond the limits of lab TV and Broadcast Anayzers by incorporating IP signal analysis. It offers support for the SRT (Secure Reliable Transport) protocol, SDI and the ST 2110 (SMPTE 2110) standard, essential tools for next-generation IP video content contribution and production workflows.
| Feature | Classic TV Analyzers | PROMAX ATLAS NG | Key Benefit |
| Frequency Range | Typically up to 3 GHz | Up to 6 GHz | Covers more RF bands and new applications |
| Key Standards | DVB-T/T2, ATSC, ISDB-T, FM, DAB | DVB-T, DVB-T2 (T2-base, T2-lite), ISDB-T/Tb, ATSC 1.0, ATSC 3.0, DAB, DAB+, DVB-C, DVB-C2, J.83 annex-B, DVB-S, DVB-S2 VCM/ACM/CCM, DVB-S2x, DSS, Analog (PAL, SECAM, NTSC), FM RDS, SRT, SDI, ST 2110 | Total compatibility and readiness for the IP future |
| Spectrum Analysis | Included, dedicated functions | Dedicated 6 GHz Professional Spectrum Analyzer. Channel power measurement, Spectrogram mode, Adjacent Channel power measurement mode, Occupied Bandwidth, Markers, Traces | Higher versatility in RF analysis |
| Integrated Functions | TV Analyzer, Spectrum, MPEG-TS | Universal Analyzer (RF, Cable, Satellite, OTT, IPTV, MPEG-TS, IP remote control, SDI and Fiber optic) | A truly future-proof analysis platform. |
The PROMAX ATLAS NG is not just a replacement for obsolete TV Analyzers; it's a comprehensive upgrade for your lab or fieldwork. Its 6 GHz Spectrum allows for the analysis of not only traditional broadcast bands but also the higher frequencies used in new networks and links.
CONTACT US FOR MORE INFO ›Future-proof your operations upgrading to ATLAS NG
Future-proof your operations upgrading to ATLAS NG
If your workflow relies on the capabilities of a lab TV and Broadcast Analyzer and you need to ensure the continuity of your TV signal analysis and transmission quality operations, with the widest support broadcast standards and the latest IP technologies, the PROMAX ATLAS NG is the only logical choice.
Contact our expert team for a demonstration and discover how the power and versatility of the ATLAS NG will exceed all expectations.
