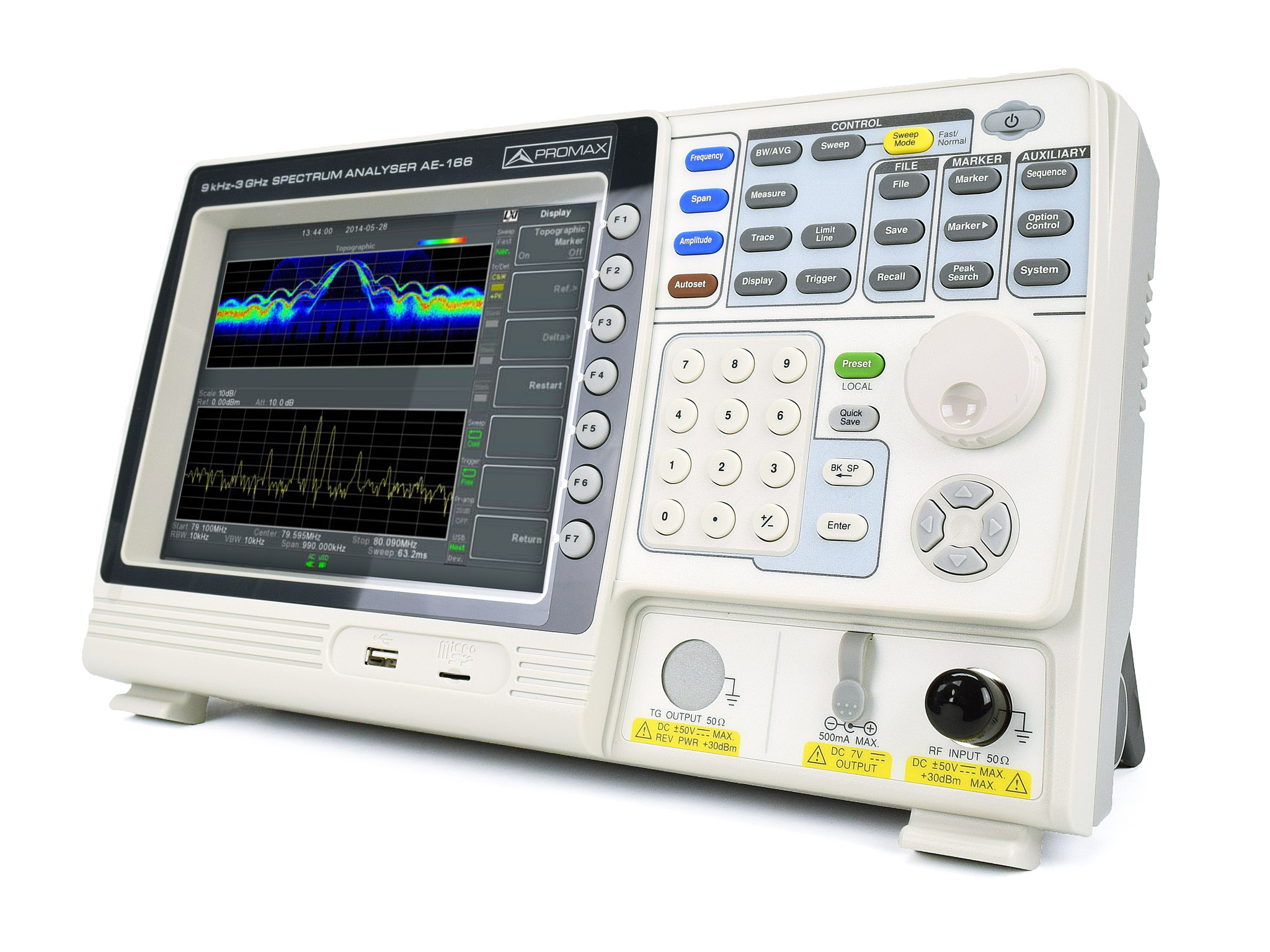

AE-166 / AE-167: 3 GHz spectrum analysers with tracking generator

3 GHz spectrum analysers with tracking generator: AE-166 / AE-167

AE-166 and AE-167 are light, compact and high value 3 GHz spectrum analysers. The AE-167 includes a tracking generator.

The AE-166/167 frequency range stretches from 9 kHz to 3 GHz and features many functions such as radio frequency and power measurement, active component P1dB point measurement, Harmonic measurement, etc. It can support the fast sweep speed up to 307 μS.

AE-166/167 spectrum analyser, with the built-in preamplifier and the highest sensitivity of -149 dBm/Hz, is capable of measuring very feeble signals. To obtain the accurate results, the low power measurement uncertainty of AE-166/167 is less than 1.5 dB.

They are the ideal instruments for various application fields such as the basic operation of R&D, research and school lecture, engineering maintenance, and test for mass production. These light and compact spectrum analysers are also suitable for automatic test systems and vehicle mounted operation.

AE-166 / AE-167: More information. Interested?
Special offers, promotions and new product information only for you.
Receive our E-news with exclusive information.

OKYou have been successfully suscribed. A confirmation message has been sent from updates@promaxelectronics.com. Please add that address to your contact list to receive our newsletters and to ensure they are not accidentally classified as SPAM.

☰  Specifications 〣  Free downloads

  • SPECIFICATIONS AE-166 / AE-167
    FREQUENCY MARGIN9 kHz to 3 GHz
    RESOLUTION1 Hz
    LEVEL DISPLAY
      Scales
      Units
      Display
    4 traces
    Log, linear
    dBm, dBmV, dBµV, V, W
    Trace, Topographic, Spectrogram (Single/split windows)
    SWEEPContiuous or single. 50 µs to 1000 s
    RF PREAMP1 MHz to 3 GHz. Gain 18 dB
    TRACKING GENERATOR (AE-167)100 kHz to 3 GHz
    INPUTS AND OUTPUTS- RF input
    - VSWR
    - USB 2.0 host
    - USB 2.0 device

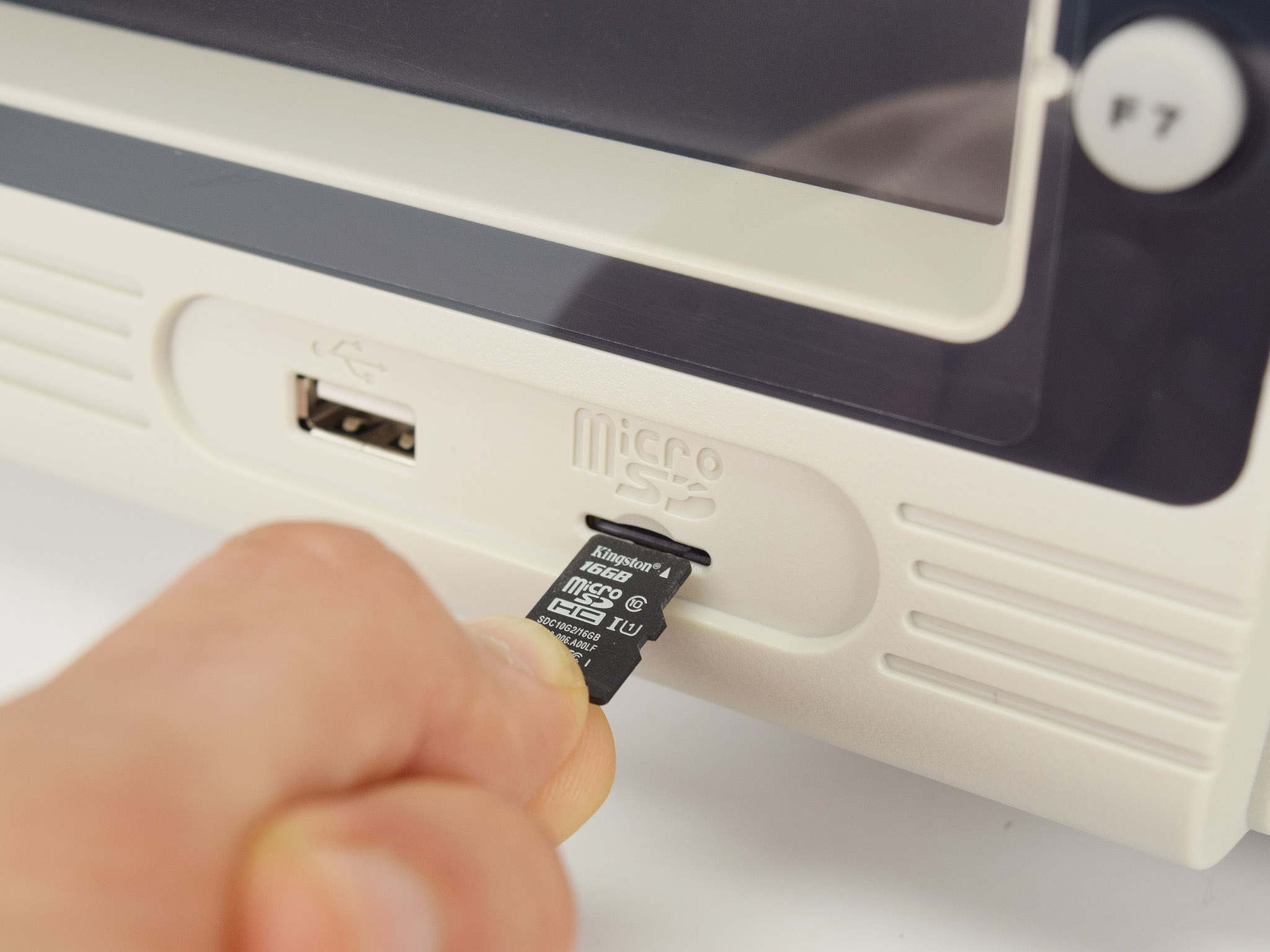

    - microSD socket
    - Reference output
    - Reference input
    - Alarm output
    - Trigger input
    - Gated sweep input
    - LAN TCP/IP interface
    - FI output
    - Headphone output
    - Video output
    - RS-232C interface
    - AC power input
    DISPLAYExtra large 8” LCD screen
    OPTIONAL ACCESSORIES- Soft carrying bag
    - 6U rack mounting kit
    BATTERY PACKOptional
