GR-405: 4.4 GHz RF signal generator

GR-405: 4.4 GHz RF signal generator

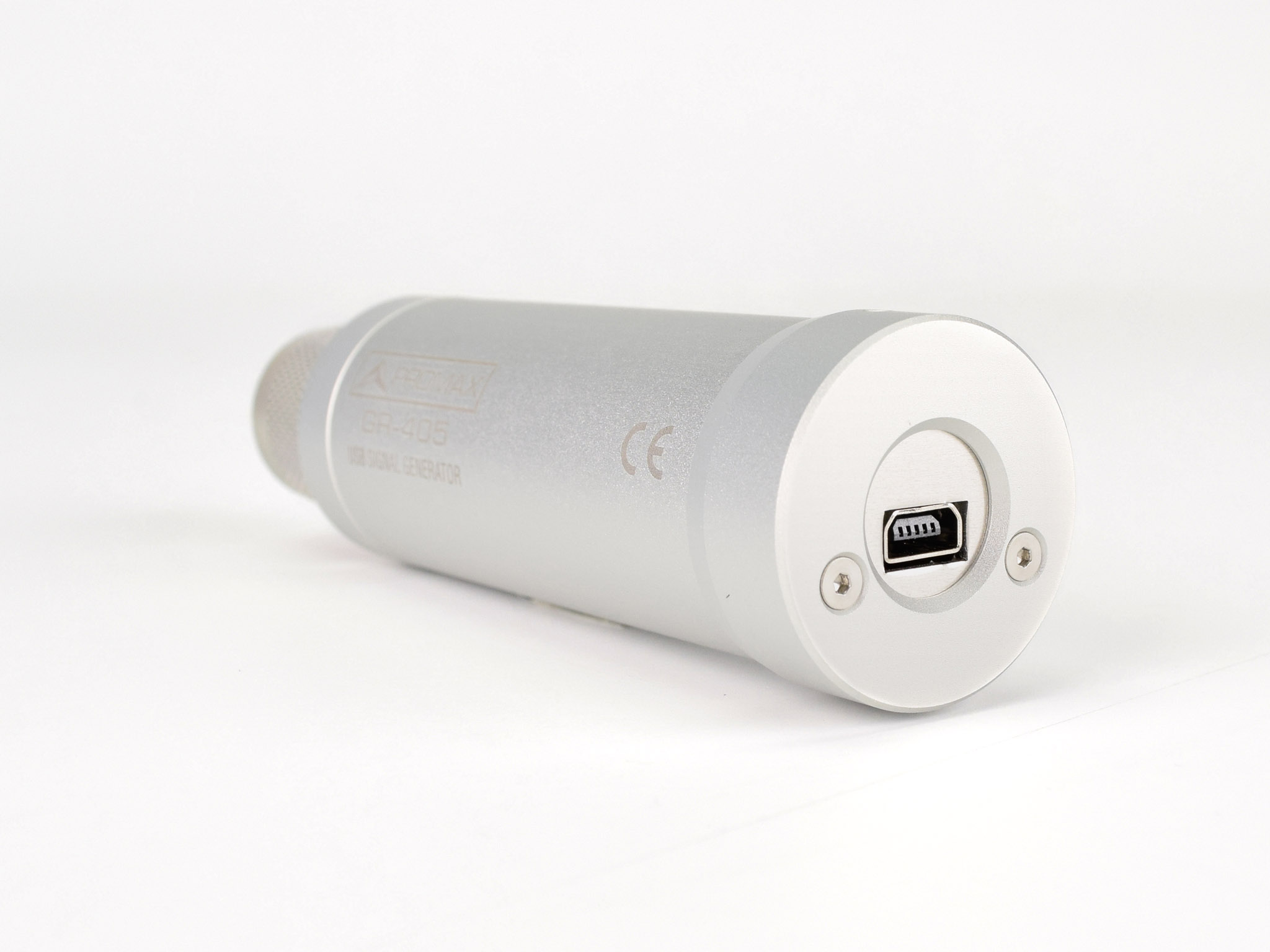

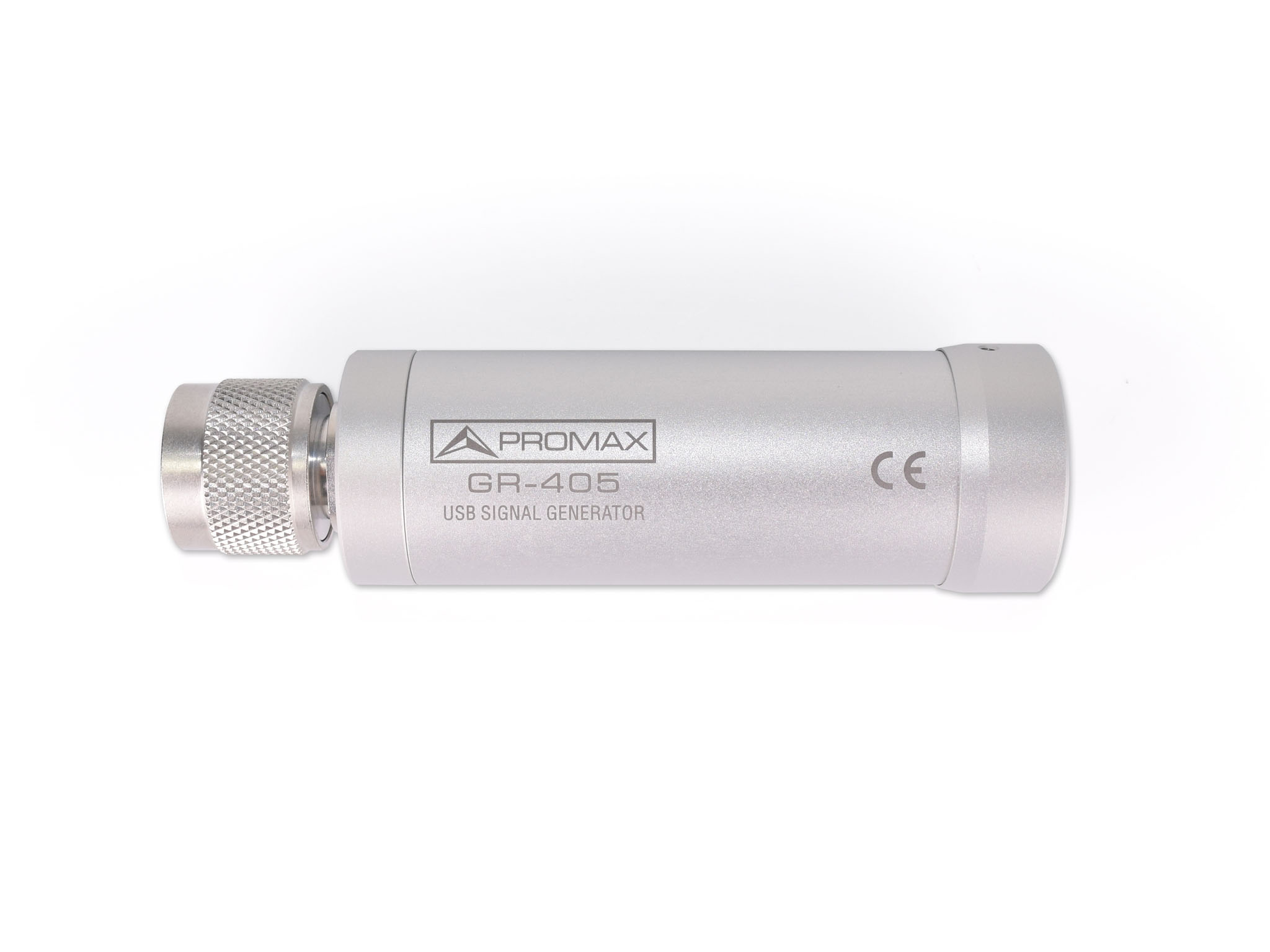

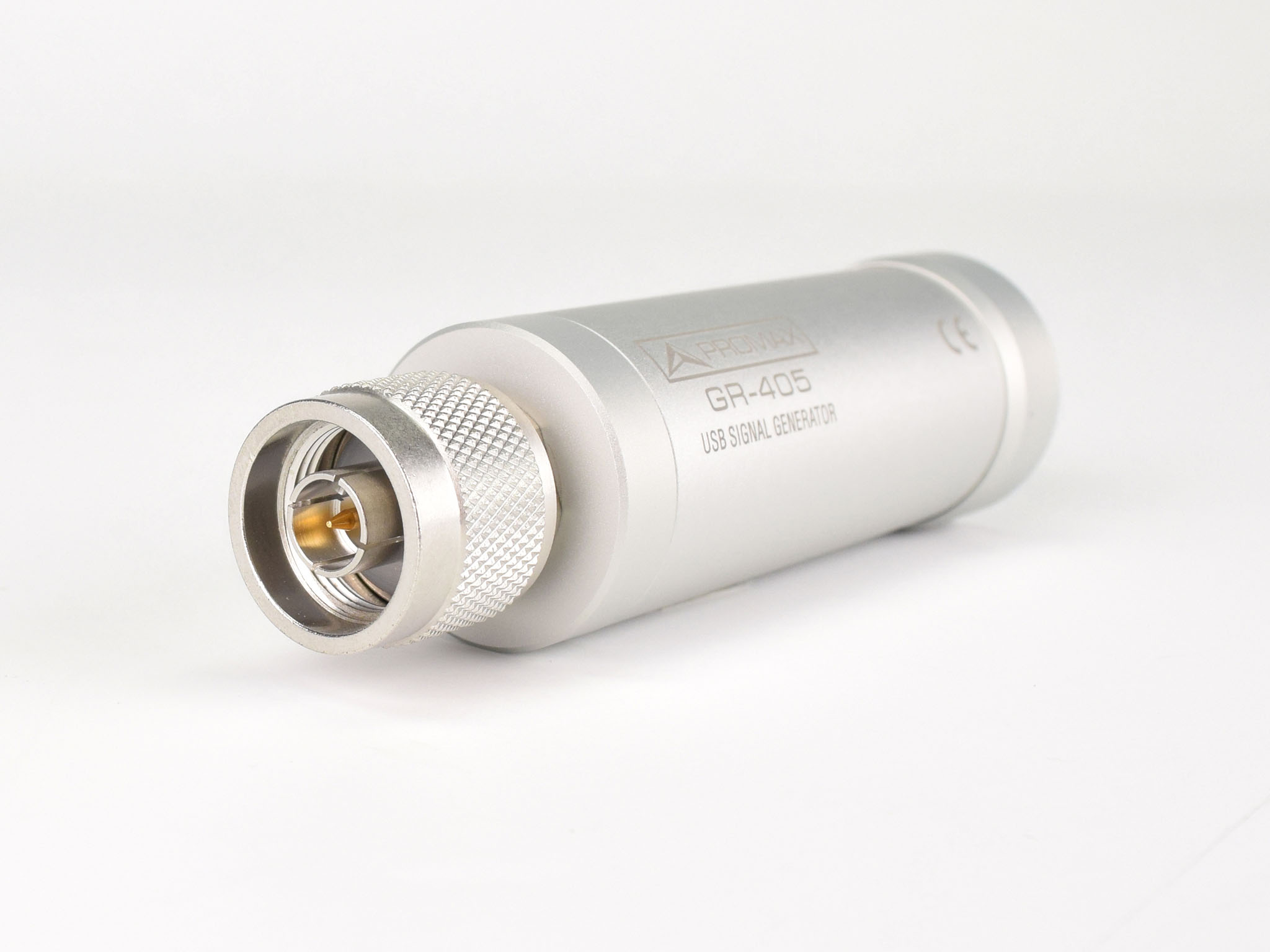

RF signal generator powered and controlled from a PC via USB, with a frequency margin from 35 MHz up to 4400 MHz.

The new signal generator GR-405 comes with the required features of a great generator in a pocket-sized equipment.

The RF signal generator meets users' requirements and has a USB interface with a frequency range from 35 MHz to 4400 MHz. The signal generator provides continuous wave (CW) signal outputs without any signal modulation function. The built-in electronic attenuator allows an adjustable power range from -30 dBm to 0 dBm. The GR-405 has several operational modes including fixed frequency, frequency sweep, frequency hopping, and power sweep.

FREQUENCY MARGIN From 34.5 MHz to 4.4 GHz
OUTPUT POWER -30 dBm to 0 dBm, 1 dB steps
RESOLUTION 10 kHz
CONTROL MODES Fixed Frequency, Single Sweep, CW Sweep, Hopping and Power sweep
PC SOFTWARE Windows 2000 / XP / Vista / 7 / 8 / Linux / OS X
