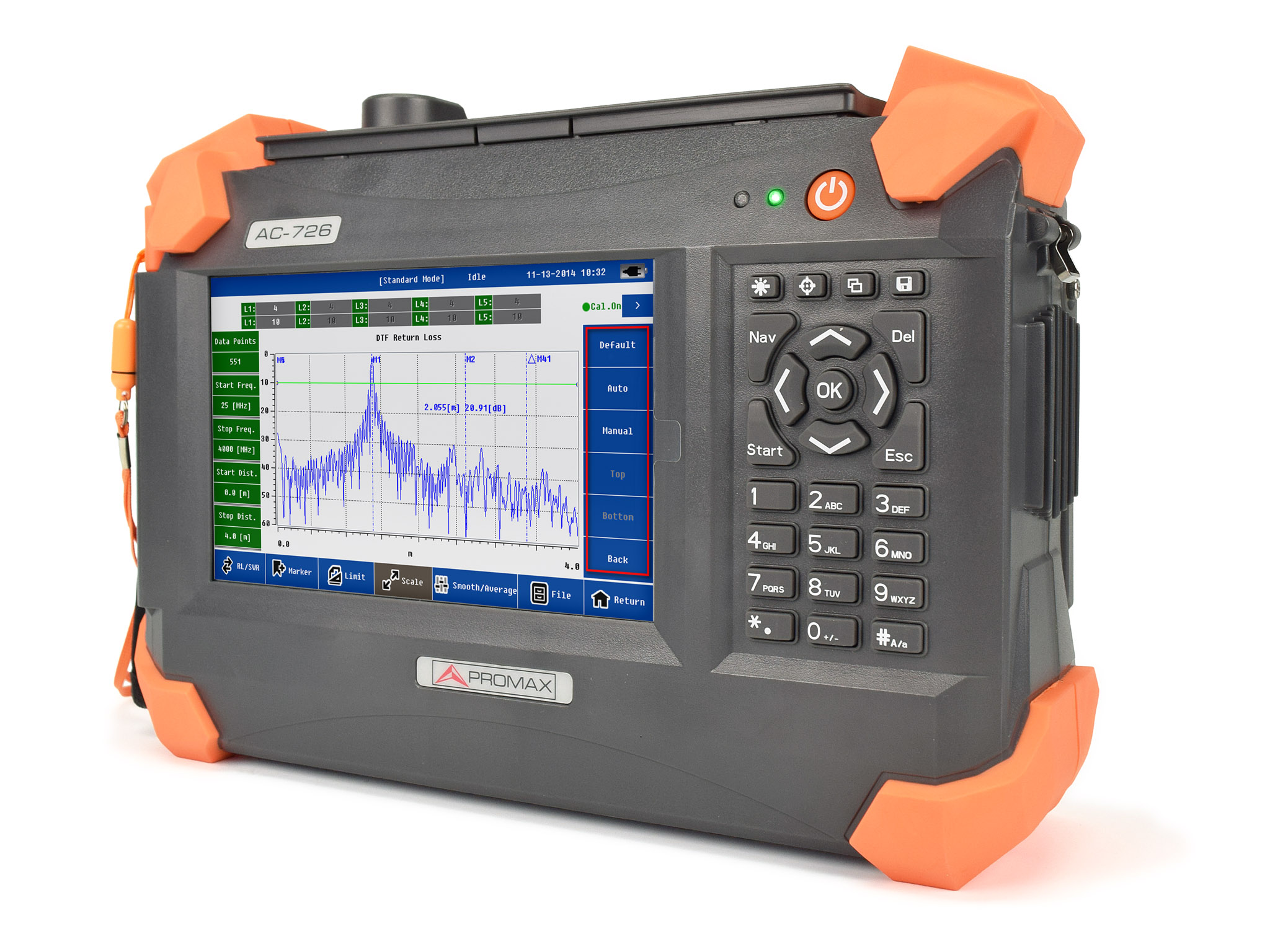

AC-726: Radiocommunication analyser

AC-726: Radiocommunication analyser

A measurement instrument for the development of 2G, 3G, 4G and WiMAX systems. Includes DTF-Retorn Loss, DTF-VSWR and Cable Loss analysis. Users can check the reliability of cable and antenna connection in an easy way.

The Radiocommunication Analyser AC-726 can test Return Loss and VSWR of load frequency. It also can get Return Loss, VSWR of DTF (distance-to-fault) and Cable Loss. Users can be easy to know the connection of cable & antenna system is reliable whether or not. AC-726 with frequency range 25 MHz can be suitable for 2 G / 3 G / 4 G / WiMAX systems etc. The AC-726 is the necessary measuring instrument for the new generation of wireless network development, upgrade and maintenance.

FREQUENCY RANGE From 25 MHz to 4000 MHz
FREQUENCY RESOLUTION 100 kHz
ANTI-JAMMING CAPABILITY
Frequency -5 dBm
Channel +17 dBm
RETURN LOSS
Range 0 to 60 dB
Resolution 0.01 dB
VSWR
Range 1 to 65
Resolution 0.01
CABLE LOSS
Range 0 to 30 dB
Resolution 0.01 dB
DISTANCE-TO-FAULT
Range 0 to 60 dB
Length 1500 m
DATA POINTS Up to 1103
MEMORY SPACE Up to 2000 traces
