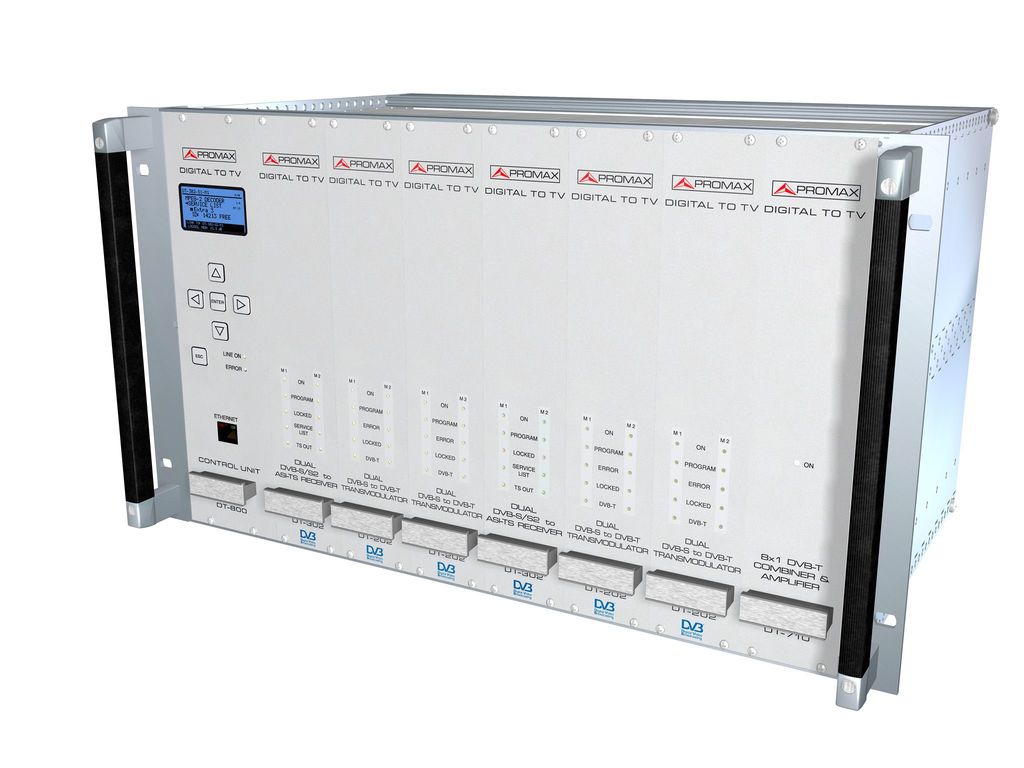

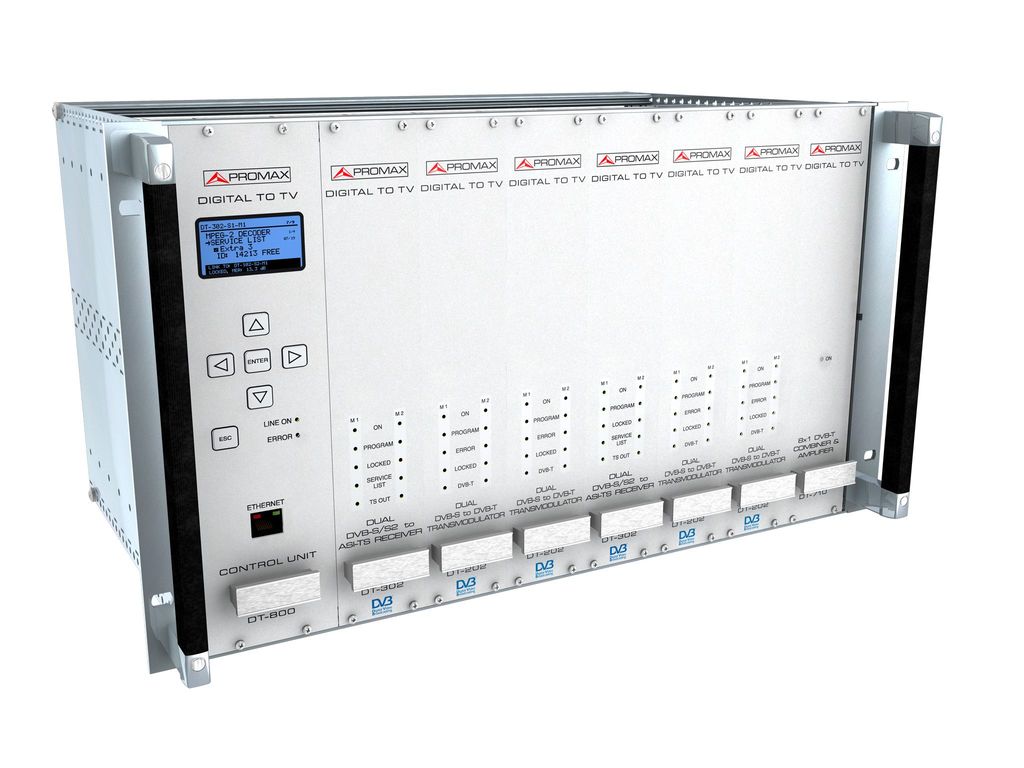

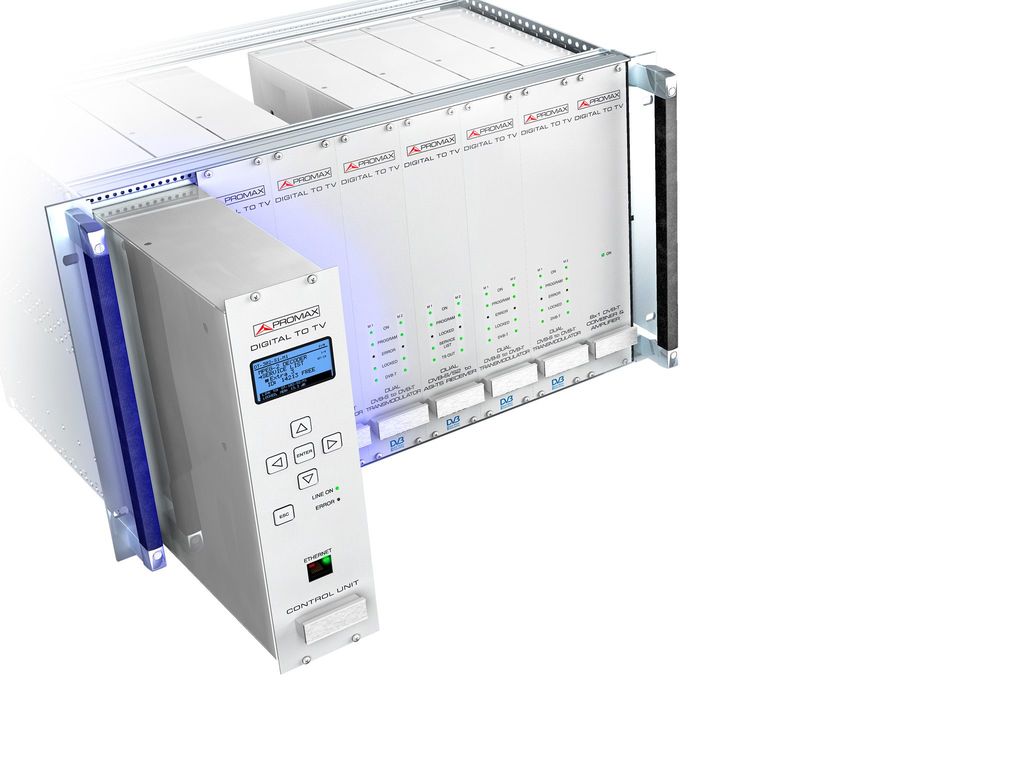

DT-800: Control unit and power supply

DT-800: Control unit and power supply

Delivers the control and power supply for up to 7 modules, any type, and allows remote control from a PC through Ethernet port.

The DT-800 delivers the control and power supply for up to 7 modules, any type.

The control is specific to each module and it is possible to change configuration of all parameters of the receivers, modulators, encoders,... at any time. Front panel keyboard and LCD provide an easy access to module functions such as tuning frequencies, output levels, PID filters, etc.. System administrator can prevent unauthorized or accidental system access by locking front panel keys.

An Ethernet port is available in case the installer wishes to take control from a PC computer. This can be particularly interesting to copy settings from one system to another or simply to reduce time of installation.

MODULES
Control/Power Supply Up to 7 modules DT-XXX
Auto-config Auto-detection of connected modules
Auto-link Auto-detection of connected modules
LOCAL INTERFACE
  • LCD screen
  • Navigation keypad (6 keys)
  • 2x information LEDs: Line On / Error
  • Intuitive Navigation Menu (tree type menu)
REMOTE INTERFACE Through Ethernet port (PC software supplied). 10/100Mb. Virtual Control by means of virtual serial port.
