OD-606: 60 MHz digital storage oscilloscope (economy range)

OD-606: 60 MHz digital storage oscilloscope (economy range)

Digital storage oscilloscope featuring up to 60 MHz of bandwidth and up to 500 MS/s real time sample rate. 8” screen and connectivity: USB 2.0, USB for file storage, LAN and RS-232.

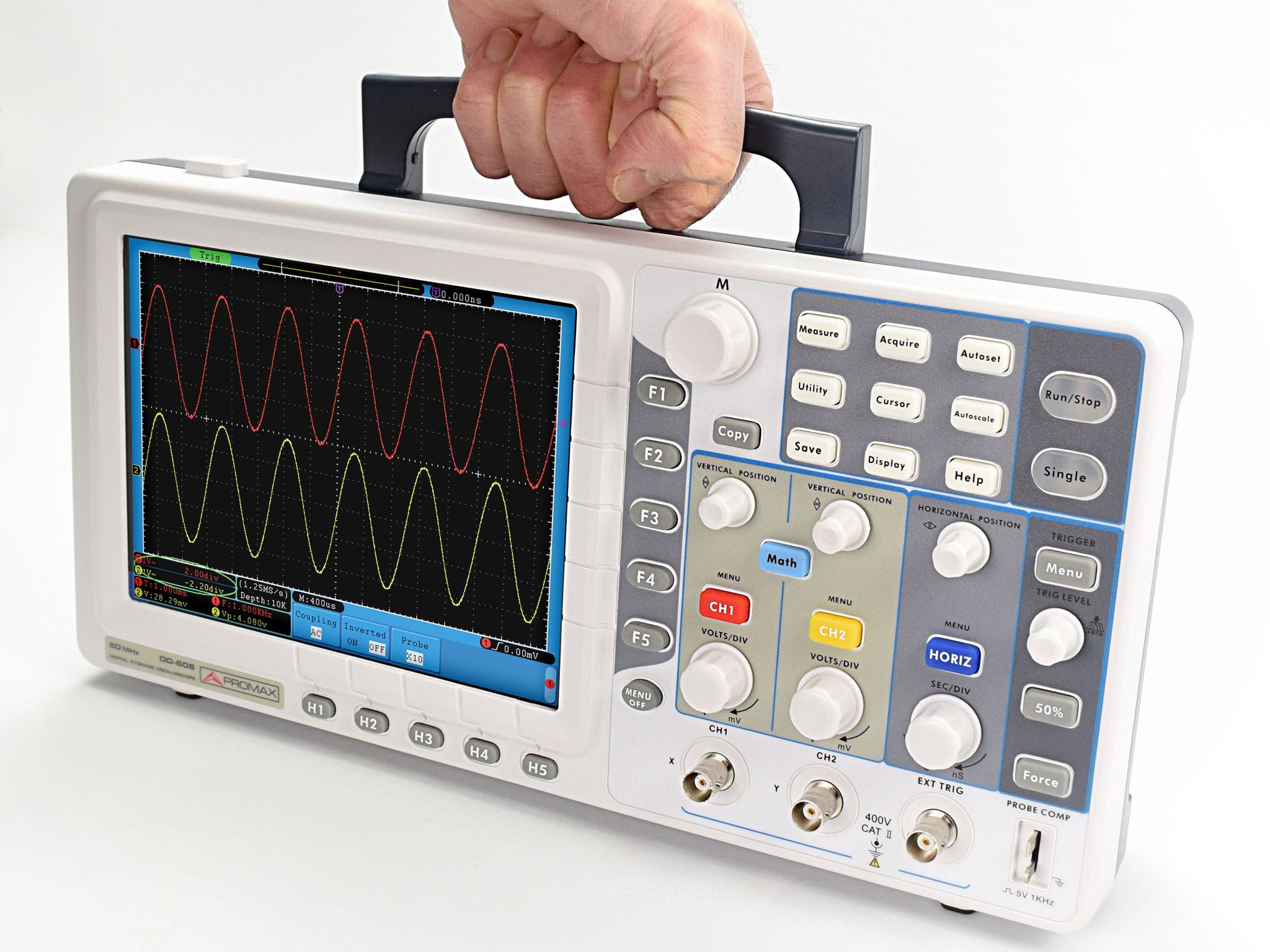

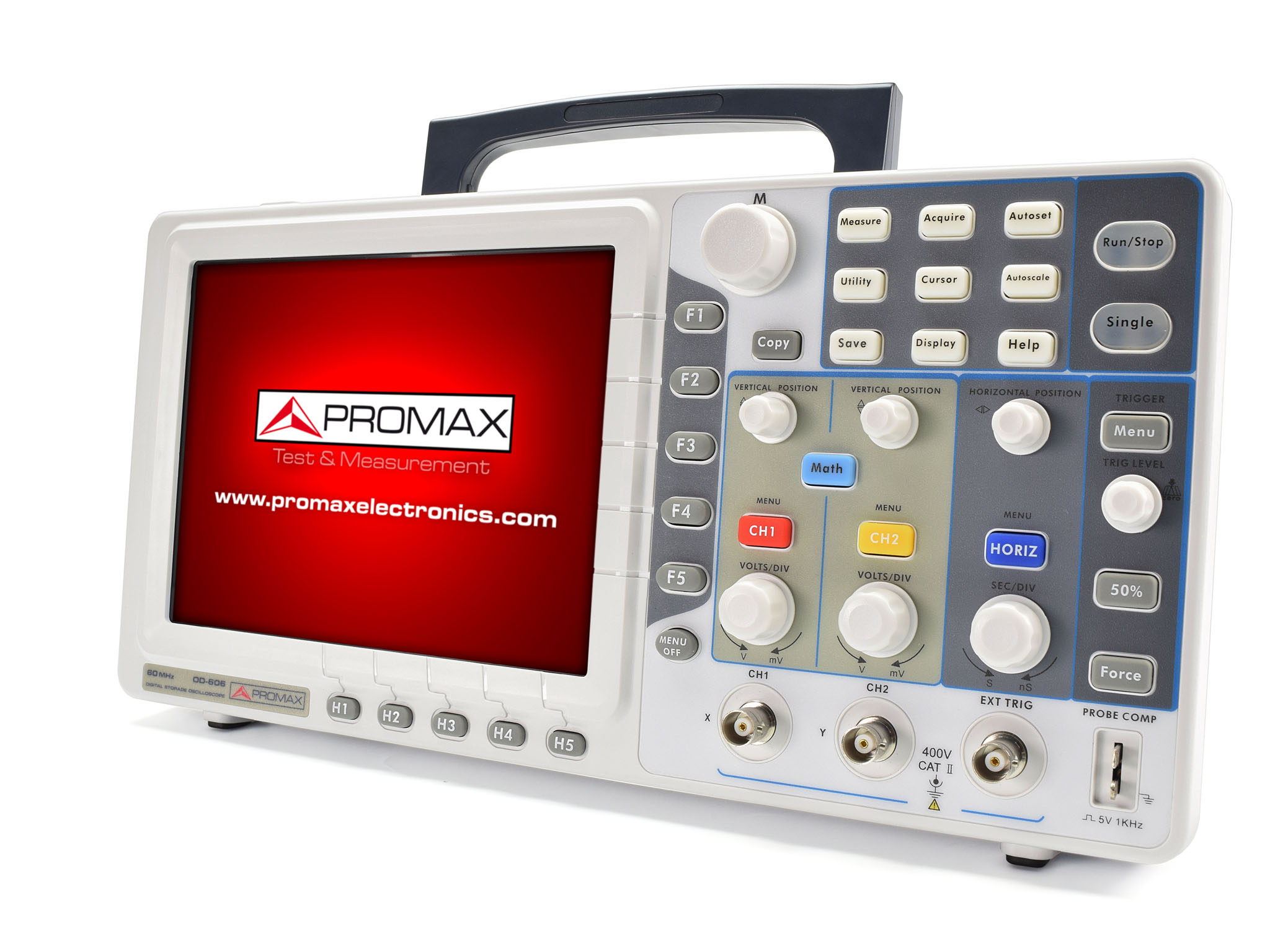

PROMAX OD-606 is a digital storage oscilloscope featuring up to 60 MHz of bandwidth and up to 500 MS/s real time sample rate. This economic range digital oscilloscope features an unprecedented large 8” high resolution display.

They include advanced functions such as several trigger modes, 20 automatic measurements, waveform storage and USB connectivity.

Their ultra-thin body (just 8 cm depth), compact design and light weight makes these PROMAX digital oscilloscopes ideal not only for desktop applications such as circuit design or production lines but also for those cases that demand to carry the instrument from one location to another: automobile maintenance and testing, education and training, etc.

BANDWIDTH 60 MHz
SAMPLE RATE 500 MS/s
CHANNELS 2 + 1 (external)
HORIZONTAL SCALE (s/div) From 5 ns/div to 100 s/div, 1-2-5 steps
TRIGGER Edge, Pulse, Video, Slope, Alternate
RECORD LENGTH 1 M (10 M optional)
SCREEN 8” color TFT display, 800x600 pixels

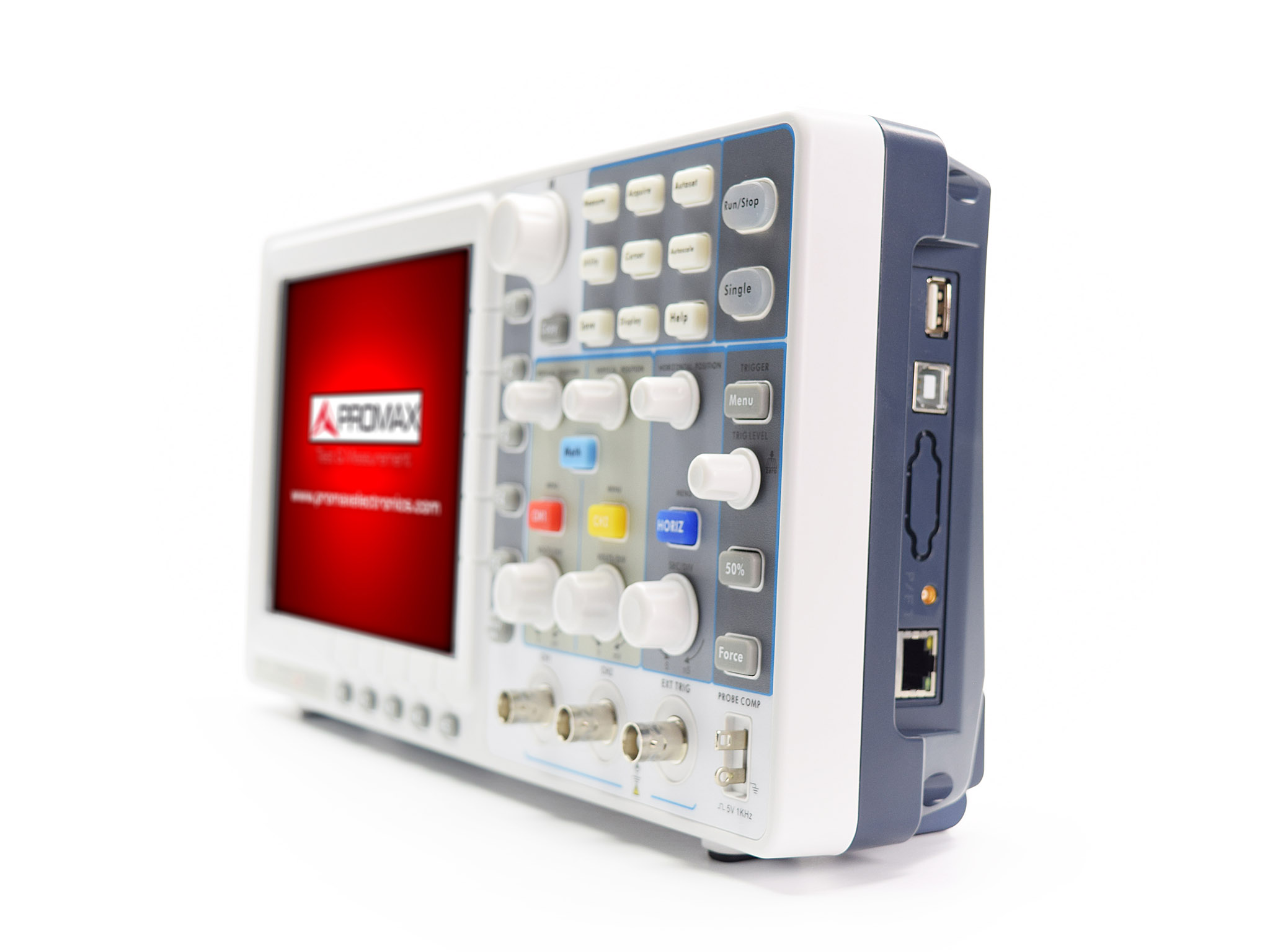

COMMUNICATION INTERFACES USB 2.0, USB for file storage, LAN port, RS-232 port

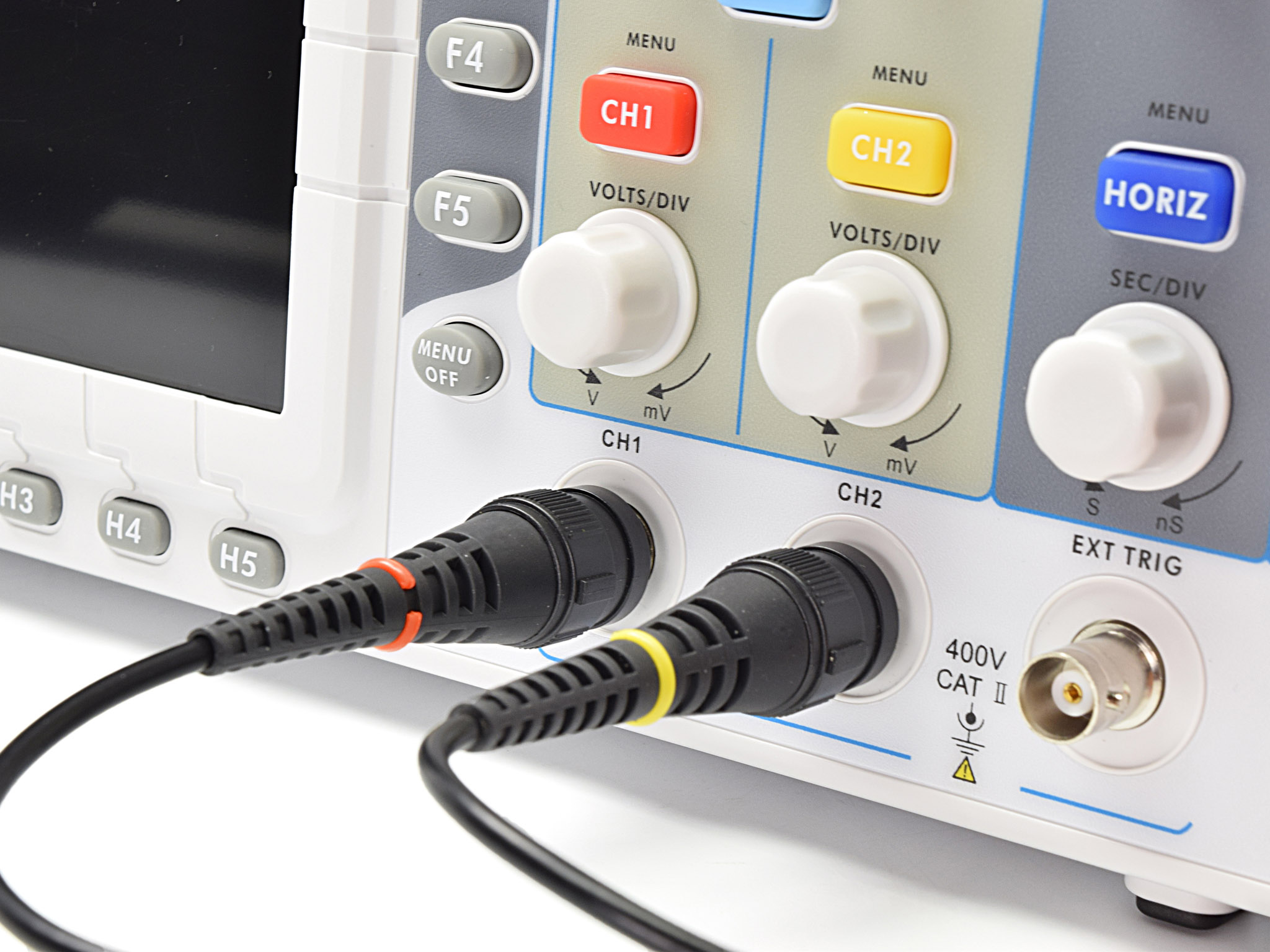

INCLUDED ACCESSORIES Passive probe (x2), Power cord, USB cable, Quick guide
