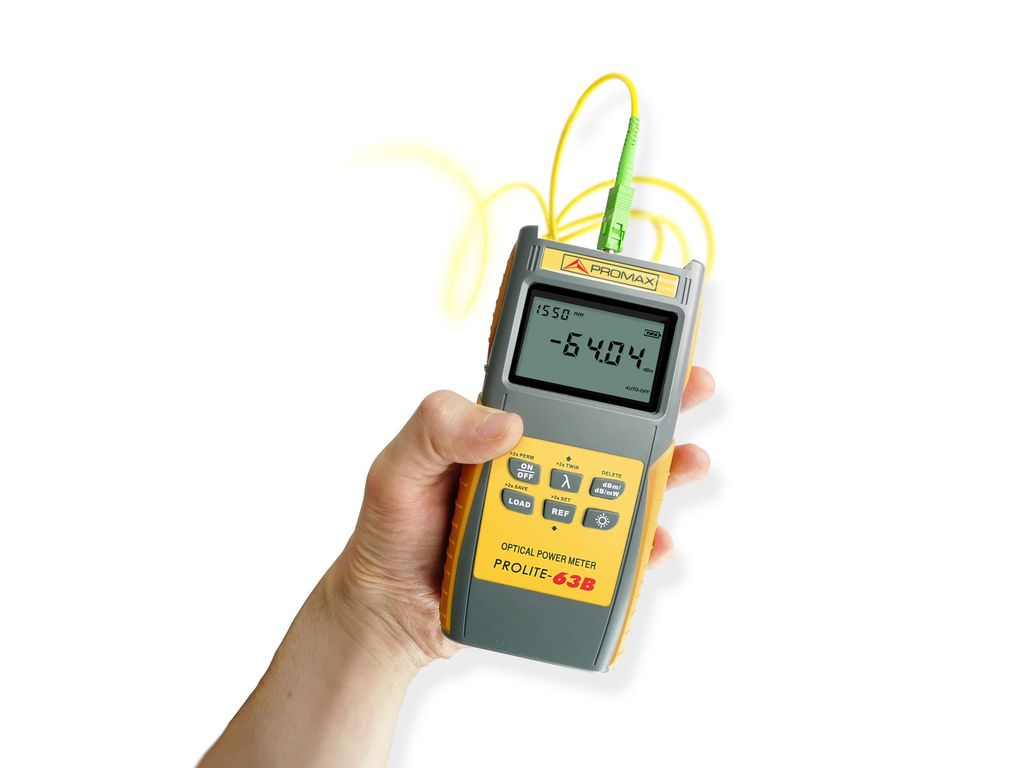

PROLITE-63B: Low cost optical power meter

PROLITE-63B: Low cost optical power meter

Six calibrated wavelengths (850 to 1625 nm). Digital communication with PROLITE-55 light source for automatic wavelength recognition.

The PROLITE-63B is a functional and intelligent optical power meter. Under the situation of laboratory, LANs, WANs and CATV as well as long distance optical network, the optical power meters, together with PROMAX LASER sources can be used to identify optical fiber, measure optical attenuation, verify continuity and evaluate fiber link transmission quality.

Its memory capacity extends up to 999 data items. PROLITE-63B enables data transfer to a PC via USB connection. With the software, the date sheet can be saved as MS Excel or TXT, and printed out directly.

  • Referencing function.
  • Memory capacity of 999 data items; enables data transfer to a PC via USB connection.
  • LCD backlight for easy operation in darker environments.
  • More connectors are optional and interchangeable by the user.
  • Two powering systems: Internal rechargeable batteries or AC adaptor.
  • Wide dynamic range and high power measurement capability.
  • High accuracy and Stabilized.
  • Auto poweroff function: saves the power and low power consumption allows extended operation in the field.
  • Interchangeable fiber-optic adapters.



CALIBRATED WAVELENGTHS 850, 1300, 1310, 1490, 1550, 1650 nm
ACCURACY ±0.2 dB ±1 nW
RESOLUTION 0.01 dB
MEASURING RANGE -40 to +10 dBm (@1550 nm)
POWER SUPPLY 4 x Ni-MH 2500 mAh batteries or 6V AC/DC adaptor
