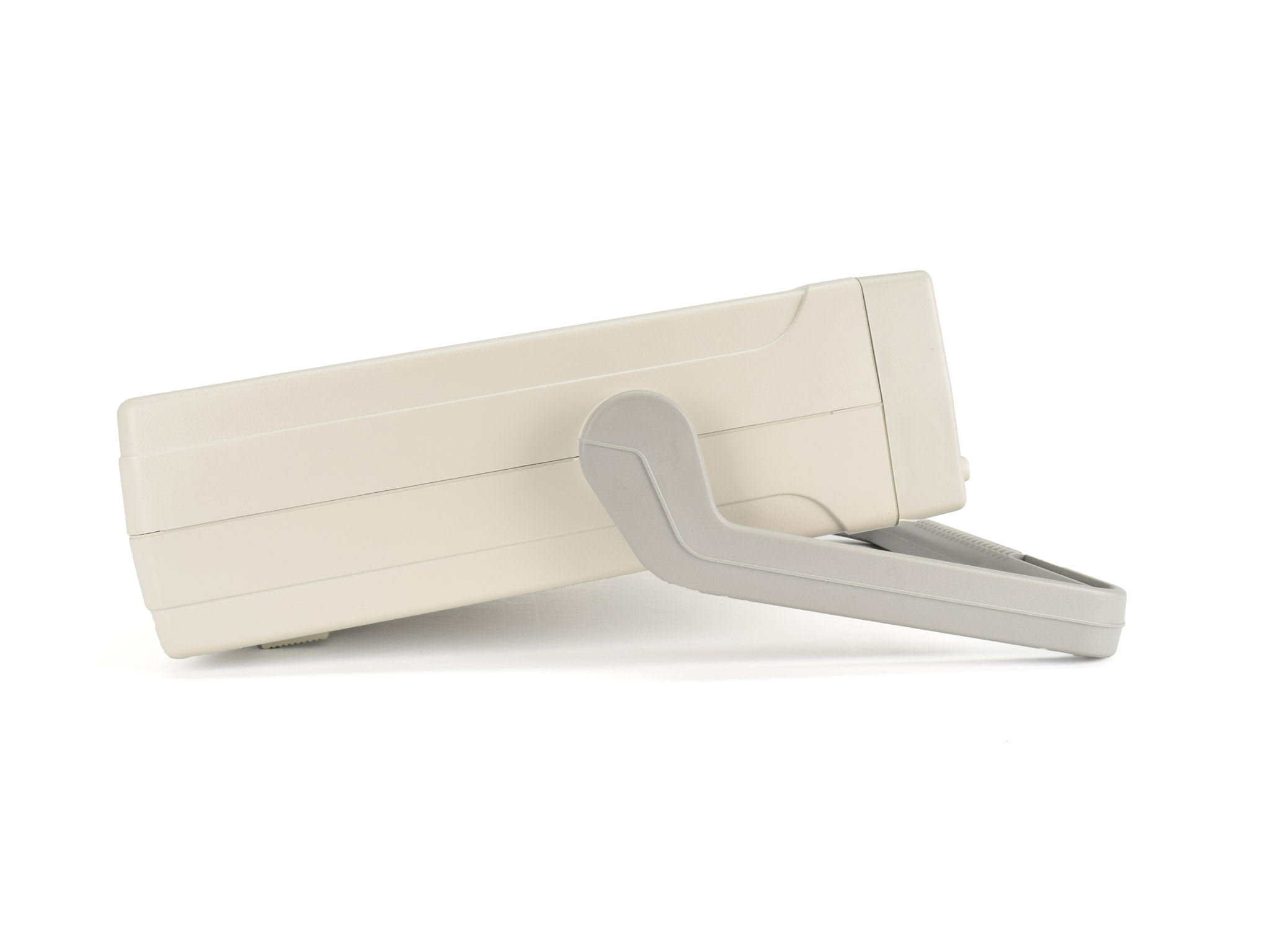

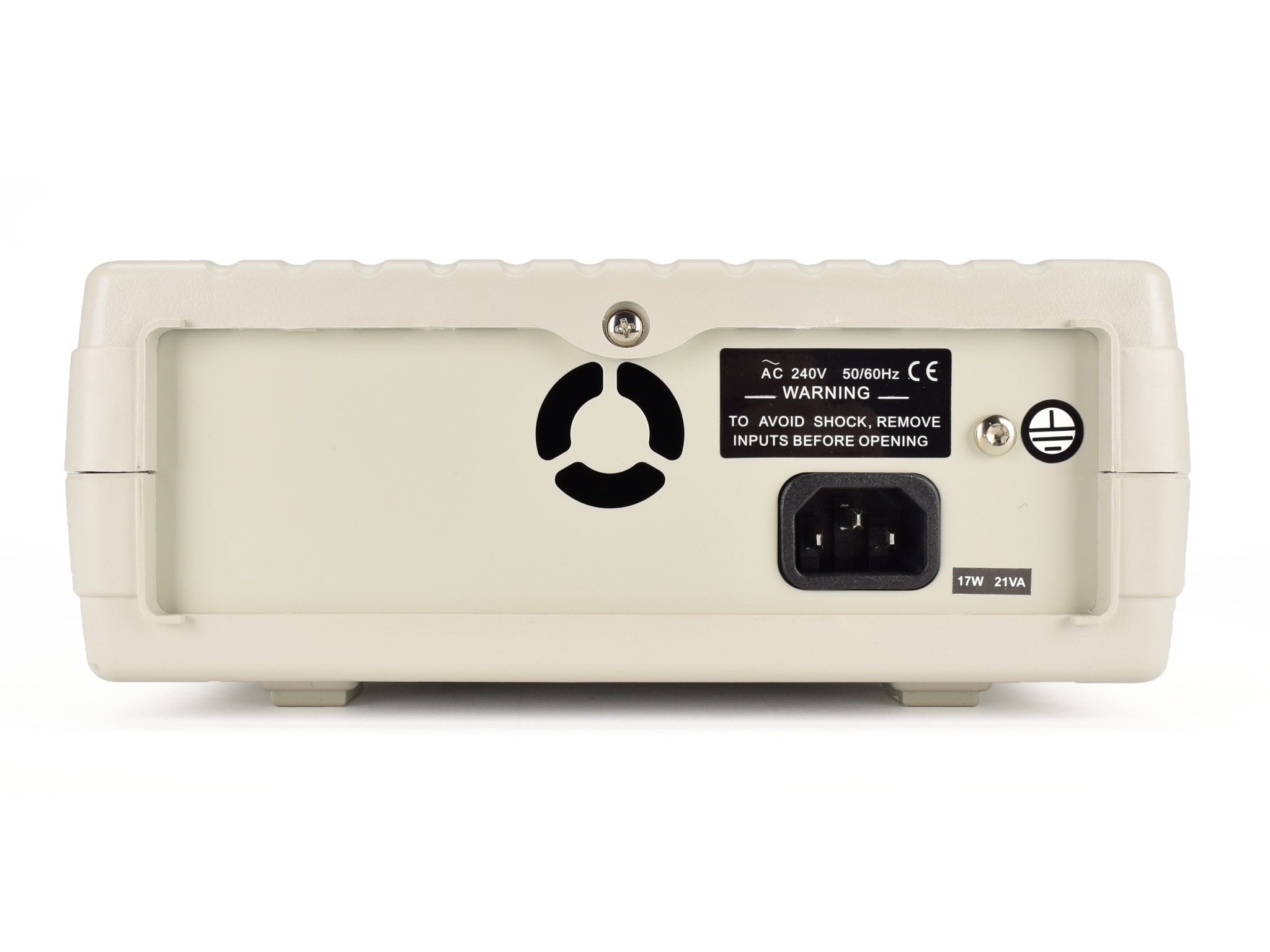

GF-232B: 3 MHz function generator

GF-232B: 3 MHz function generator

Function generator including output in sine, square and triangular waveforms with independent TTL output and sampling frequency up to 3 MHz.

The GF-232B is a high resolution function generator that uses DDS technology to deliver a high accuracy, low distortion frequency output up to 3 MHz with a resolution of up to 0.1 Hz.

It includes two independent outputs (TTL and frequency) and offers various output waveforms: Sine, Square and Triangle.

It features a large format 6 digit LED display with waverform and frequency indicator that makes easier to operate this economical type function generator.

OUTPUT WAVEFORMS Sine, Square, Triangle
WAVEFORM RANGE
  • Sine / Square: From 0.1 Hz to 3 MHz
  • Triangle: From 0.1 Hz to 1 MHz
RESOLUTION 0.1 Hz maximum
AMPLITUDE RANGE 10 Vpp (50 Ω load)
ATTENUATOR -40 dB ±10 %
DC OFFSET From < -5 V to > +5 V (50 Ω load)
DUTY RANGE From 25 % to 75 %, ≤ 1 MHz (Square Wave)
DISPLAY 6 digits LED display
