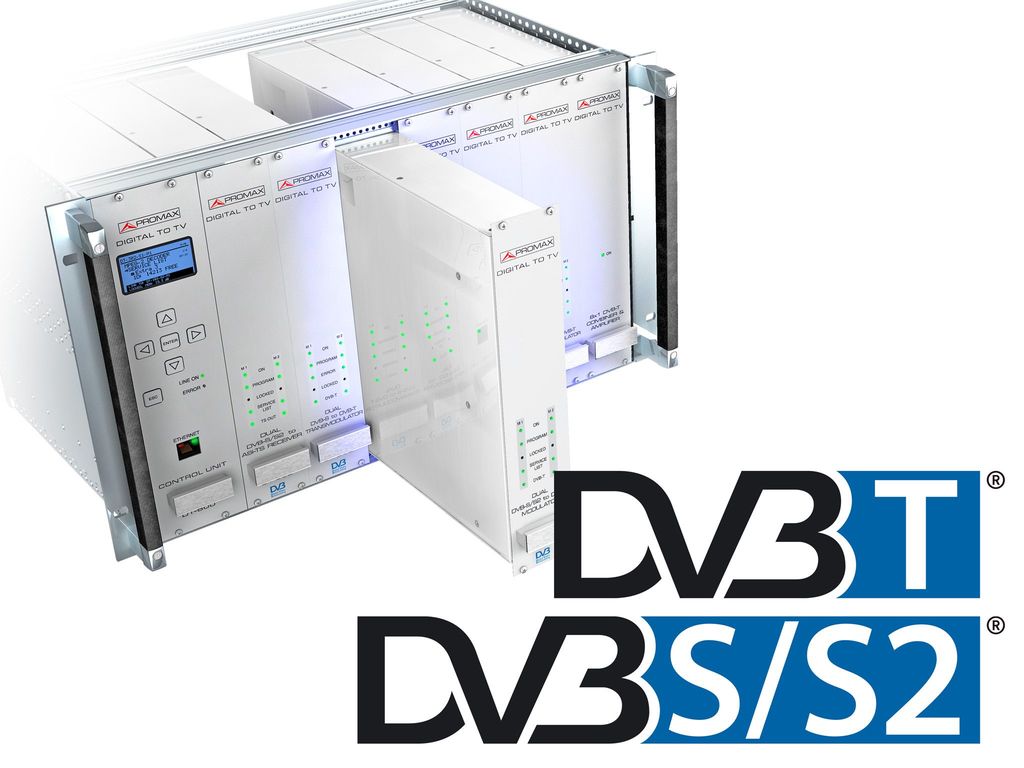

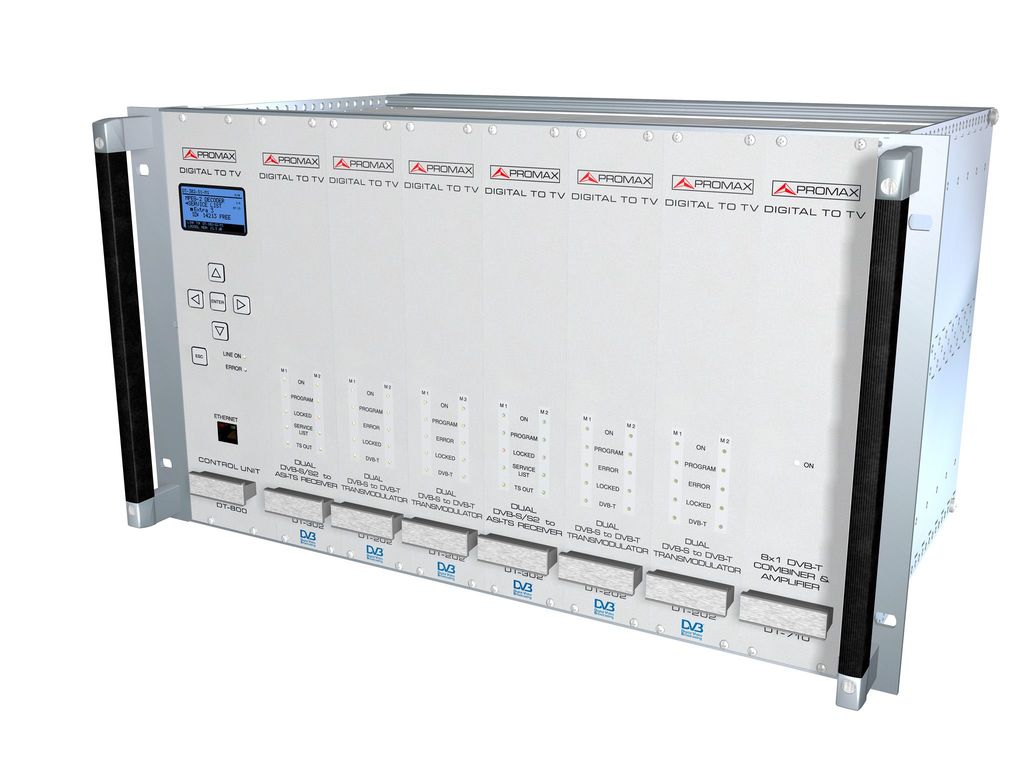

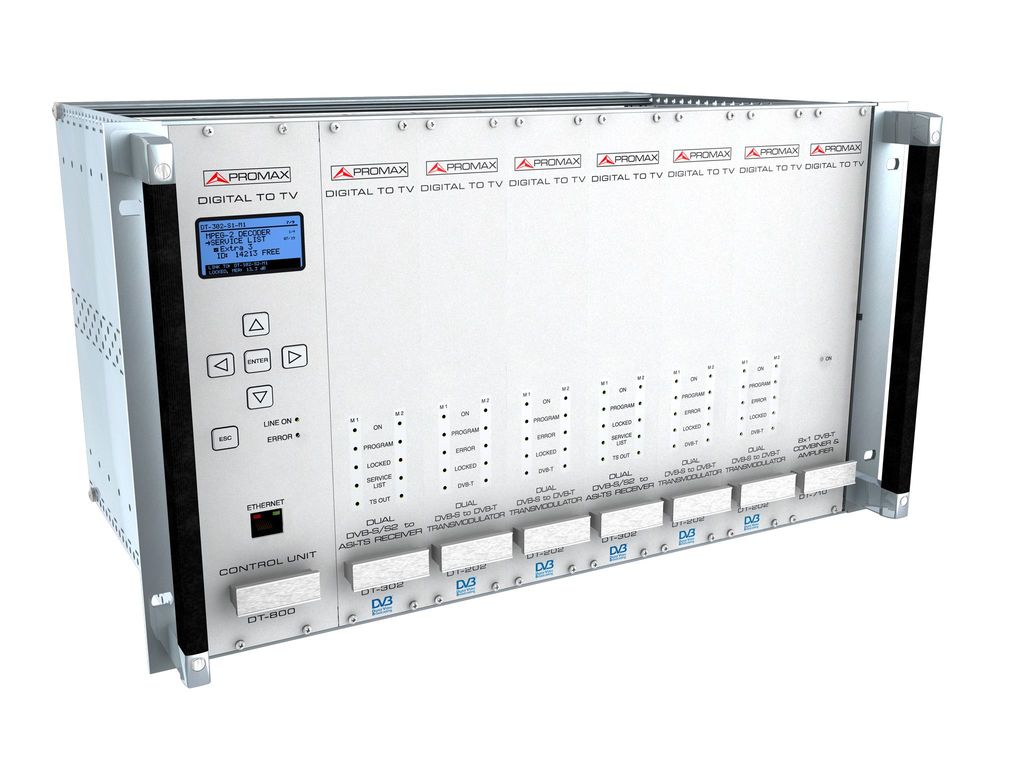

DT-232: Dual DVB-S/S2 to DVB-T transmodulator with CAM

DT-232: Dual DVB-S/S2 to DVB-T transmodulator with CAM

Double transmodulators DVB-S/S2 (QPSK/8PSK) to DVB-T (COFDM), with an internal Condicional Access Module (CAM).


DT-232 modules are double transmodulators DVB-S/S2 (QPSK/8PSK) to DVB-T (COFDM). Its QPSK/8PSK inputs can be tuned to any satellite transponder, releasing the output at UHF band.

It allows changing many parameters including the frequency and the level of the output signals.

The double transmodulator DVB-S/S2 to DVB-T (DT-232) includes an internal combiner providing a single DVB-T output with high C / N rate. This feature gives great robustness to the signal so it allows the addition of RF amplifiers in cascade when distributing with minimal loss of
signal quality.

Each satellite receiver has an interface for Conditional Access Module (CAM). Different types of CAM can be used to decode one or more of the available encrypted programs and distribute them Free to Air.

DVB-S/S2 FI INPUT 2 independent DVB-S/S2 IF inputs
Connectors 75 Ω F-type, female
RF OUTPUT 2 independent combined DVB-T multiplexes
Connectors Female BNC, 50 Ω Impedance
TS PROCESSING
Filtering PID Filtering Table up to 32 PID
Measurements
  • Bitrate of the output multiplex
  • Percentage of bitrate used (relative to the maximum capacity of the multiplex)
