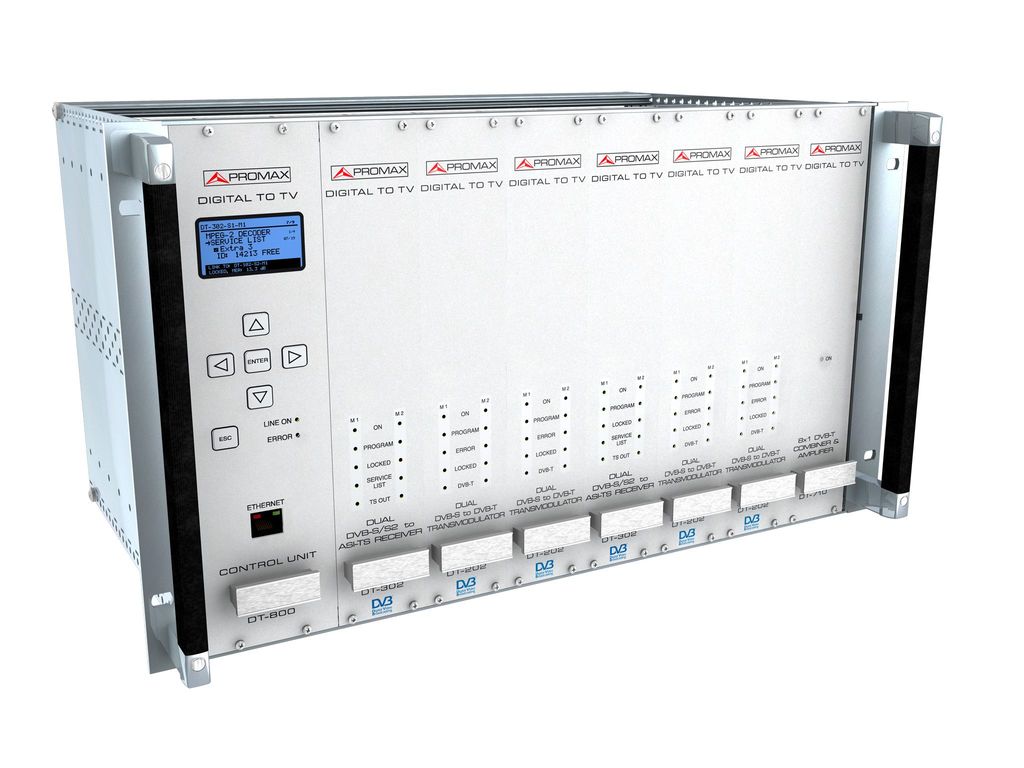

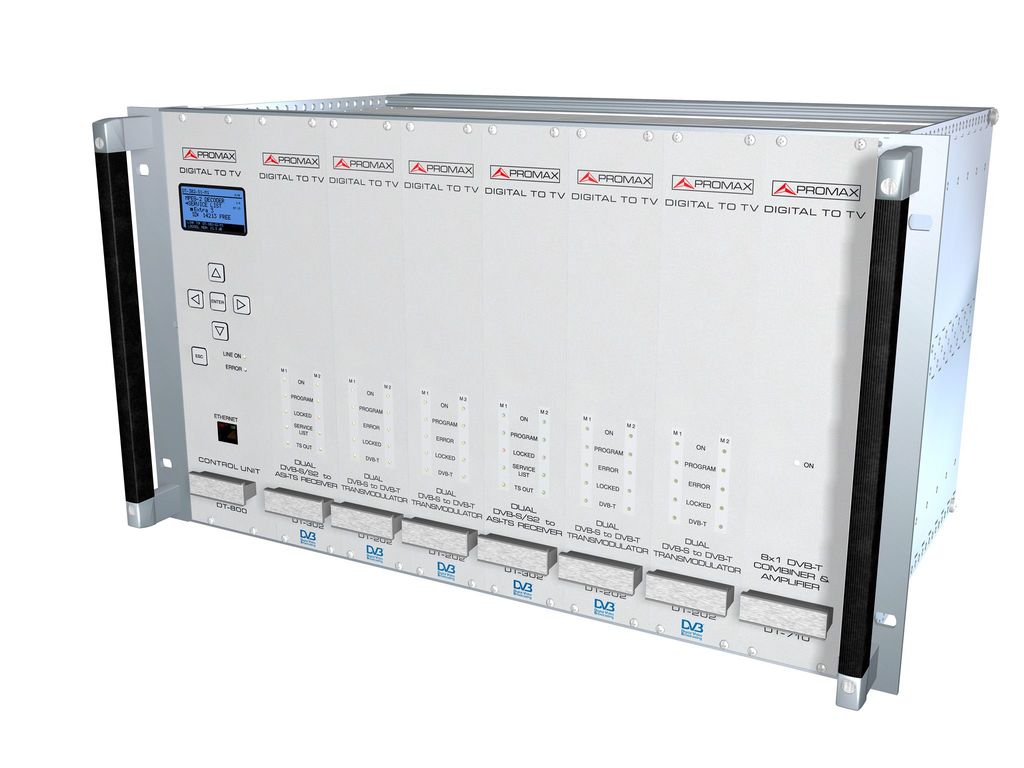

DT-710: 8 input DVB-T combiner with one single amplified output

DT-710: 8 input DVB-T combiner with one single amplified output

Combiner with 8 inputs and an amplified output, 114 dBµV (+6 dBm) aprox.


The DT-710 is a combiner with 8 inputs and an output designed to mix output RF signals of COFDM modulators and transmodulators with DTT channels available in the area.

The system provides an amplified output of 114 dBµV (+6 dBm) frequently required in SMATV systems.

This is a solution of higher quality than those that often use Z connections, given that preserves better the original quality and maintains lower noise levels.

FREQUENCY MARGIN From 50 MHz (C-2) to 860 MHz (C-69)
INPUTS 8 inputs Female BNC, 75 Ω impedance
RF OUTPUT 1 female BNC output, 75 Ω impedance
Maximum output level
  • 1 channel at 119 dBµV
  • 2 channels at 116 dBµV
  • 4 channels at 113 dBµV
  • 8 channels at 110 dBµV
  • 16 channels at 107 dBµV
CONFIGURATION AND POWER SUPPLY Through the DT-800 control and power supply unit. Control can be done remotely from to PC.
